Ultimate Guide to Fixing Analog Sticks on Dual Shock 2 Controller for PS2

• Gaming Repair
Quick Links:
• Introduction
• Understanding Analog Sticks
• Common Issues with Dual Shock 2 Analog Sticks
• Tools You'll Need
• Step-by-Step Guide to Fix Analog Sticks
• Cleaning the Controller
• Replacing Analog Stick Components
• Calibrating the Sticks
• Preventive Measures
• Case Studies
• Expert Insights
• Conclusion
• FAQs

Introduction

The Dual Shock 2 controller for the PlayStation 2 has been a beloved piece of gaming hardware since its release in 2000. However, over time, many users experience issues with the analog sticks, which can lead to frustrating gameplay. This guide is designed to provide a comprehensive approach to diagnosing and fixing common problems associated with the analog sticks of the Dual Shock 2.

Understanding Analog Sticks

Analog sticks are critical components of modern gaming controllers, allowing for precise control of movement and actions within games. The Dual Shock 2 features two analog sticks that enable a 360-degree range of motion, enhancing the gaming experience.

How Analog Sticks Work

Analog sticks operate using potentiometers that detect the angle and direction of movement. When you move the stick, the potentiometers generate signals that are sent to the console, translating your physical movements into in-game actions.

Common Issues with Dual Shock 2 Analog Sticks

As with any electronic device, the Dual Shock 2 can exhibit various problems over time. The following are some of the most common issues:

• Drift: The stick registers movement even when it is not being touched.
• Stiffness: Difficulty in moving the stick smoothly in any direction.
• Response lag: Delayed response to movements, affecting gameplay.
• Physical damage: Cracks or breaks in the casing or stick itself.

Tools You'll Need

Before starting your repairs, gather the following tools:

• Phillips screwdriver
• Flathead screwdriver
• Isopropyl alcohol (for cleaning)
• Cotton swabs or soft cloth
• Replacement analog sticks (if needed)
• Small container (for screws)
• Anti-static wrist strap (optional)

Step-by-Step Guide to Fix Analog Sticks

Follow these detailed steps to troubleshoot and repair your Dual Shock 2 controller:

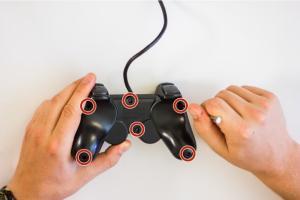

Step 1: Open the Controller

Using the Phillips screwdriver, remove the screws on the back of the controller. Make sure to keep these screws in a small container to avoid losing them.

Step 2: Inspect the Components

Carefully lift the top half of the controller. Inspect the analog sticks and the internal components for any visible dirt or damage.

Step 3: Cleaning the Controller

Use isopropyl alcohol and cotton swabs to clean around the analog sticks and the internal components. This can help remove any grime that may be causing issues.

Step 4: Replace Analog Stick Components (if necessary)

If you notice that the potentiometers or the analog sticks are damaged, you may need to replace them. Follow these steps:

• Desolder the old potentiometers from the circuit board.
• Install new potentiometers by soldering them into place.
• Reattach the new analog sticks.

Step 5: Reassemble the Controller

Carefully place the top half of the controller back onto the bottom half and reinsert the screws.

Step 6: Test the Controller

Connect the controller to your PS2 and test the analog sticks in a game or through the system's controller settings.

Cleaning the Controller

Regular maintenance and cleaning can prevent many analog stick issues. Here’s how to keep your controller in top shape:

• Wipe down the exterior: Use a dry cloth to remove dust and oils from your hands.
• Clean the analog sticks: Use isopropyl alcohol periodically to remove grime.
• Store properly: Keep the controller in a dry, cool place.

Replacing Analog Stick Components

Replacing internal components can seem daunting, but it can significantly extend the life of your controller:

1. Purchase compatible replacement parts online or from electronics stores.
2. Follow the disassembly steps outlined earlier.
3. Ensure that you have the necessary soldering tools if you are replacing potentiometers.

Calibrating the Sticks

After repairs, it’s crucial to calibrate the analog sticks to ensure optimal performance:

• Access the controller settings on your PS2.
• Follow the on-screen instructions to calibrate the analog sticks.

Preventive Measures

To avoid future issues with your Dual Shock 2 controller, consider these preventive measures:

• Avoid eating or drinking near your gaming setup.
• Use a protective case when transporting your controller.
• Periodically check for any signs of wear and tear.

Case Studies

Many gamers have faced issues with their Dual Shock 2 controllers. Here are a couple of case studies that illustrate common problems and fixes:

Case Study 1: Drift Issue

A gamer reported that their controller would move to the left automatically. After following the cleaning and calibration steps in this guide, the issue was resolved, and they could enjoy gaming without interruptions.

Case Study 2: Stiff Analog Stick

Another user found that their right analog stick was stiff. After disassembling the controller and applying lubricant to the internal components, the stick's movement became smooth again.

Expert Insights

Experts recommend regularly checking your controllers for any physical damage and cleaning them after every few gaming sessions. This can significantly reduce the likelihood of issues developing over time.

Conclusion

Fixing analog sticks on your Dual Shock 2 controller is entirely manageable with the right tools and techniques. By following the steps outlined in this guide, you can ensure that your controller remains in excellent working condition. With a little care and maintenance, your gaming experience can continue to be enjoyable for years to come.

FAQs

1. What tools do I need to fix my Dual Shock 2 controller?

You will need a Phillips and flathead screwdriver, isopropyl alcohol, cotton swabs, and potentially replacement analog sticks.

2. Can I clean my controller without opening it?

Yes, you can clean the exterior with a soft cloth, but for internal cleaning, you need to open it up.

3. How do I know if I need to replace the analog sticks?

If you experience consistent drift, stiffness, or if the stick is physically damaged, replacement may be necessary.

4. Is it difficult to replace the analog stick components?

It can be challenging if you are not familiar with soldering; however, with practice, it becomes easier.

5. What should I do if my controller is still not working after repairs?

If the controller still does not function correctly, consider consulting a professional repair service.

6. How often should I clean my Dual Shock 2 controller?

It’s advisable to clean your controller every few gaming sessions, especially if it sees heavy use.

7. Can I use any replacement parts for my controller?

It’s best to use parts specifically designed for the Dual Shock 2 to ensure compatibility and performance.

8. What causes drift in analog sticks?

Drift can be caused by dust and dirt accumulation, wear on the potentiometers, or internal component failure.

9. Are there any professional services for controller repair?

Yes, many gaming repair shops offer services for fixing controllers, including analog stick issues.

10. How can I prevent issues with my controller?

Regular cleaning, careful handling, and proper storage are key to preventing issues with your controller.
