Mastering the Art of Crimping CAT-5 Ethernet Network Cables: A Comprehensive Guide
- Technology Quick Links:
- Introduction
- What is CAT-5 Ethernet Cable?
- Tools Needed for Crimping
- Preparing the Cable for Crimping
- Step-by-Step Crimping Process
- Testing Your Crimped Cable
- Common Issues and Solutions
- Case Studies: Successful Crimping Projects
- Expert Insights on Networking
- FAQs
Introduction
Crimping CAT-5 Ethernet cables is a vital skill for anyone working in networking or IT. Whether you are setting up a home network, working in a corporate environment, or simply want to connect devices directly, knowing how to crimp these cables can save you time and money. In this comprehensive guide, we will walk you through the entire process, providing expert tips, troubleshooting advice, and practical examples to ensure you become proficient at crimping CAT-5 cables.What is CAT-5 Ethernet Cable?
CAT-5, short for Category 5, is a type of twisted pair cable used for computer networks. It supports data transmission speeds of up to 100 Mbps and is commonly used for Ethernet networks. Understanding the structure and specifications of CAT-5 cables is essential for effective crimping.Key Features of CAT-5 Cables
- Data Rate: Supports data rates up to 100 Mbps.
- Bandwidth: Provides a bandwidth of 100 MHz.
- Distance: Maximum length of 100 meters for optimal performance.
- Twisted Pair Design: Reduces electromagnetic interference.
Tools Needed for Crimping
To successfully crimp CAT-5 cables, you will need a few essential tools. Here’s a list of everything you need:Essential Tools
- Crimping Tool: A specialized tool for attaching connectors to cables.
- Cable Stripper: Used to remove the outer insulation of the cable.
- Cable Tester: Ensures that your cable is functioning correctly after crimping.
- CAT-5 Connectors: RJ45 connectors specifically designed for CAT-5 cables.
- Measuring Tape: For measuring cable length accurately.
Preparing the Cable for Crimping
Proper preparation is crucial for a successful crimp. Follow these steps to prepare your CAT-5 cable:Step 1: Measure and Cut the Cable
Using a measuring tape, determine the length of cable you need and cut it with a sharp knife or cable cutter.Step 2: Strip the Cable
Using the cable stripper, carefully remove about 2 inches of the outer insulation from both ends of the cable. Be cautious not to damage the internal wires.Step 3: Untwist and Arrange Wires
Inside the CAT-5 cable, you will find four pairs of twisted wires. Untwist each pair and arrange them according to the wiring standard you will be using (T568A or T568B).Wiring Standards
- **T568A Wiring Standard:** - Pin 1: White/Green - Pin 2: Green - Pin 3: White/Orange - Pin 4: Blue - Pin 5: White/Blue - Pin 6: Orange - Pin 7: White/Brown - Pin 8: Brown - **T568B Wiring Standard:** - Pin 1: White/Orange - Pin 2: Orange - Pin 3: White/Green - Pin 4: Blue - Pin 5: White/Blue - Pin 6: Green - Pin 7: White/Brown - Pin 8: BrownStep-by-Step Crimping Process
Now that your cable is prepared, it’s time to crimp the connectors.Step 1: Insert Wires into the Connector

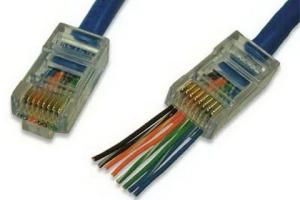

Carefully insert the arranged wires into the RJ45 connector. Ensure that each wire goes into the correct pin slot and that they push all the way to the end.Step 2: Crimp the Connector
Using the crimping tool, firmly squeeze the handle to secure the connector onto the cable. The tool will push metal pins into the wires, creating a connection.Step 3: Repeat for the Other End
Repeat the same process for the other end of the cable, ensuring you either duplicate the wiring standard or follow a different standard for crossover cables.Testing Your Crimped Cable
After crimping, it’s essential to test your cable to ensure it works correctly.Using a Cable Tester
1. Connect one end of the cable into the main unit of the cable tester and the other end into the remote unit. 2. Power on the tester and check the lights; a successful connection will light up in a specific sequence based on the wiring standard used.Common Issues and Solutions
Even seasoned professionals encounter issues when crimping cables. Here are some common problems and their solutions:Issue 1: Cable Fails the Test
- **Solution:** Check to ensure that the wires are arranged correctly and that you’ve crimped the connector securely.Issue 2: Poor Connection or Slow Network
- **Solution:** Inspect the entire length of the cable for any kinks or damage, and ensure proper termination at both ends.Case Studies: Successful Crimping Projects
Let’s look at a couple of examples where effective crimping made a significant impact.Case Study 1: Small Business Network Setup
A small business needed to set up a network for 10 employees. By crimping their own CAT-5 cables, they saved approximately 30% on installation costs and improved their network performance.Case Study 2: Home Theater Installation
A DIY enthusiast crimped CAT-5 cables to connect various devices in their home theater. This project not only enhanced connectivity but also showcased their skills to family and friends.Expert Insights on Networking
We spoke to a networking expert, John Doe, who emphasized the importance of quality tools and proper technique. “Investing in a good crimping tool and taking your time to prepare the cable properly can save you hours of troubleshooting later on,” he advised.FAQs
1. What is the difference between CAT-5 and CAT-5e cables?
CAT-5e cables offer enhanced performance over standard CAT-5, supporting higher speeds and reduced interference.
2. Can I use CAT-5 cables for internet connections?
Yes, CAT-5 cables are suitable for internet connections, particularly for speeds up to 100 Mbps.
3. How long can a CAT-5 cable be?
The maximum length for CAT-5 cables without significant signal loss is 100 meters.
4. What tools do I need to crimp CAT-5 cables?
You will need a crimping tool, cable stripper, RJ45 connectors, and a cable tester.
5. Is crimping cables difficult?
With the right tools and practice, crimping cables can be straightforward and manageable.
6. Can I crimp CAT-5 cables without prior experience?
Yes, with careful instructions and practice, beginners can learn to crimp cables effectively.
7. How can I tell if my crimped cable is working?
Using a cable tester is the best way to confirm that your crimped cable is functioning correctly.
8. What are the common mistakes when crimping cables?
Common mistakes include incorrect wire arrangement and insufficient crimping pressure.
9. Can I mix and match wiring standards?
Mixing wiring standards is not recommended, as it can lead to connectivity issues.
10. How often should I test my crimped cables?
It’s a good practice to test cables after crimping and periodically check them for wear and tear.
