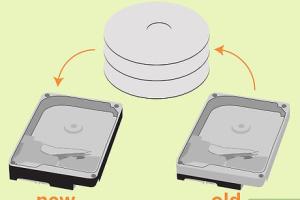

Mastering Hard Disk Drive Platter Swaps: A Comprehensive Guide
- Technology Quick Links:
- Introduction
- Understanding Hard Disk Drives
- Why Swap Hard Disk Drive Platters?
- Tools Required for Platter Swapping
- Step-by-Step Guide to Swap Hard Disk Drive Platters
- Case Studies and Real-World Applications
- Expert Insights on HDD Maintenance
- Common Mistakes to Avoid
- FAQs
Introduction
Swapping hard disk drive platters is a niche yet fascinating aspect of data recovery and hard drive maintenance. It requires precision, the right tools, and an understanding of how hard drives function. This guide will take you through everything you need to know about swapping HDD platters, from the tools required to the step-by-step process, along with insights from experts in the field.
Understanding Hard Disk Drives
Hard disk drives (HDDs) are a type of data storage device that use spinning platters coated with magnetic material to read and write data. Understanding the anatomy of HDDs is crucial before attempting to swap platters. Key components include:
- Platters: Circular disks that store data.
- Spindle: The motor that spins the platters.
- Read/Write Heads: Mechanisms that read and write data on the platters.
- Actuator Arm: Moves the read/write heads across the platters.
Why Swap Hard Disk Drive Platters?
Swapping HDD platters can be necessary for several reasons:
- Data Recovery: Recover data from a damaged or non-functional HDD.
- Upgrading: Improve performance by using better platters.
- Repair: Fix issues that arise from mechanical failures.
Tools Required for Platter Swapping
Before you start, make sure you have the following tools ready:
- Anti-static wrist strap
- Torx screwdriver set
- Plastic spudger or prying tool
- Cleanroom environment (or at least a very clean area)
- Replacement platters (if available)
Step-by-Step Guide to Swap Hard Disk Drive Platters
This guide will provide you with a detailed process for swapping HDD platters:
Step 1: Prepare Your Workspace
Ensure you are in a clean, static-free environment. Wear an anti-static wrist strap to prevent damaging electronic components.
Step 2: Remove the HDD from Your Device
Disconnect the HDD from any power source and remove it from your computer or enclosure.
Step 3: Open the HDD Enclosure
Use the Torx screwdriver to remove the screws from the HDD casing. Carefully lift the cover while avoiding any contact with the internal components.
Step 4: Remove the Actuator Arm
Gently detach the actuator arm from the HDD, making sure not to damage the read/write heads.
Step 5: Remove the Platters
Using the appropriate tools, unscrew the platters from the spindle. Take care to handle the platters by the edges to avoid fingerprints.
Step 6: Install New Platters
Align the new platters on the spindle and secure them with screws, ensuring they are tightly fastened.
Step 7: Reattach the Actuator Arm
Carefully reattach the actuator arm, ensuring the read/write heads are positioned correctly.
Step 8: Close the HDD Enclosure
Replace the cover on the HDD and secure it with screws.
Step 9: Test the HDD
Reconnect the HDD to your device and power it on to check if it functions correctly.
Case Studies and Real-World Applications
In this section, we will explore some real-world scenarios where HDD platter swapping has been successfully executed:
Case Study 1: Data Recovery for a Business
A small business experienced a HDD failure. After swapping the platters from a backup drive, they successfully recovered critical data.
Case Study 2: Upgrading Performance
An IT professional swapped platters from an older HDD with newer, higher-density platters, resulting in improved read/write speeds.
Expert Insights on HDD Maintenance
We reached out to data recovery experts to gather insights on HDD maintenance:
"Regular backups and maintenance can prevent the need for platter swapping. However, if you find yourself in a situation where it's necessary, ensure you have the right tools and a clean environment." - Data Recovery Expert
Common Mistakes to Avoid
Avoid these common pitfalls when swapping HDD platters:
- Not using an anti-static strap.
- Failing to document the original configuration of the drive.
- Using excessive force when handling components.
- Overlooking the cleanliness of the workspace.
FAQs
1. Can I swap platters from different brands?
No, HDD platters are often not interchangeable between different brands and models due to variations in design and technology.
2. Is it legal to swap HDD platters?
Yes, as long as you own the device and the data on it, you can perform maintenance and repairs.
3. What happens if I damage the platters during a swap?
Damaging the platters can result in permanent data loss. It is crucial to handle them with care.
4. How can I tell if my HDD needs platter swapping?
If your HDD makes unusual noises, fails to spin up, or is not recognized by your computer, it may need platter swapping.
5. Is there a professional service for platter swapping?
Yes, many data recovery services offer professional platter swapping and data recovery services.
6. Can I perform a platter swap without special equipment?
While it is possible, using the proper tools significantly increases the chance of success and reduces the risk of damage.
7. How long does it take to swap HDD platters?
The process typically takes 1-2 hours, depending on your experience and the complexity of the drive.
8. Will swapping platters void my warranty?
Yes, opening the drive usually voids the manufacturer's warranty.
9. Can platter swapping recover deleted data?
Not necessarily; platter swapping is more about recovering data from a damaged drive than recovering deleted files.
10. Is there a risk of data loss during platter swapping?
Yes, there is a risk of data loss if the process is not performed correctly, hence it is recommended to have a backup.
Conclusion
Swapping hard disk drive platters is a complex task that can yield positive results when done correctly. With the right tools, a clean environment, and careful handling, you can successfully swap platters and recover valuable data. Always remember to maintain backups to minimize risks in the future.
