Introduction
Crimping coaxial cables is a crucial skill for anyone working with television, internet, or radio communications. Whether you're a DIY enthusiast or a professional installer, knowing how to properly crimp coax cables can save you time and money while ensuring a reliable connection. In this comprehensive guide, we’ll walk you through everything you need to know about crimping coax, from understanding the cables themselves to the tools and techniques required for a successful crimp.
Understanding Coaxial Cables
Coaxial cables, or coax cables, are used to transmit data, video, and audio signals. Their design includes a central conductor, an insulating layer, a metallic shield, and an outer insulating layer. This construction helps protect against interference and signal loss. Understanding the components and functionality of coaxial cables is essential for effective installation and crimping.
The Structure of Coaxial Cables
- Central Conductor: Usually made of copper or aluminum; it carries the signal.
- Insulation: Encases the central conductor to prevent interference.
- Shielding: Typically made of braided metal; protects against electromagnetic interference.
- Outer Jacket: Provides physical protection and insulation.
Tools Required for Crimping Coax
Before you start crimping coax cables, make sure you have the right tools. Here's a list of essential tools you'll need:
- Coaxial Cable Stripper: For stripping the outer insulation and shielding.
- Crimping Tool: Used to attach connectors to the coax cable ends.
- Coax Connectors: Choose the appropriate connectors based on your cable type.
- Measuring Tape: To measure the length of cable needed.
- Multimeter: For testing the connection after crimping.
Types of Coax Connectors
There are several types of coax connectors available, and the choice depends on the application. Here are the most common types:
- F-Type Connector: Widely used for television and internet connections.
- BNC Connector: Common in professional video applications.
- RCA Connector: Often found in audio/video equipment.
- SMB Connector: Used for small wireless devices and antennas.
Step-by-Step Guide to Crimping Coax
Crimping coax cables can be done in a few straightforward steps. Follow this guide for a successful crimp:
Step 1: Measure and Cut the Cable
Start by measuring the length of coax cable you need. Use a measuring tape to ensure accuracy, then cut the cable using a sharp utility knife or cable cutter.
Step 2: Strip the Cable
Using a coaxial cable stripper, carefully strip away the outer insulation and shielding to expose the inner conductor. Be cautious not to damage the inner conductor during this process.
Step 3: Prepare the Connector
Insert the prepared end of the coax cable into the connector. Ensure that the central conductor extends slightly beyond the connector tip while the shielding is crimped securely.

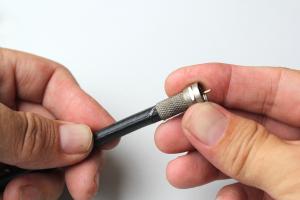

Step 4: Crimp the Connector
Using your crimping tool, firmly crimp the connector onto the cable. Ensure that the crimp is tight to prevent any signal loss.
Step 5: Test the Connection
After crimping, use a multimeter to test the connection for continuity and signal strength. This ensures that your connection is solid and ready for use.
Common Mistakes to Avoid
Even experienced technicians can make mistakes. Here are some common pitfalls to avoid:
- Improper Stripping: Stripping too much or too little insulation can cause signal issues.
- Loose Connections: Ensure the connector is firmly crimped to prevent disconnections.
- Wrong Connector Type: Always use the right type of connector for your specific coaxial cable.
Case Studies
To illustrate the impact of proper coax crimping, consider the following case studies:
Case Study 1: Home Theater Installation
A home theater installation required multiple coax connections for video and audio. The technician followed the above steps meticulously, resulting in a flawless setup without signal loss. This led to positive feedback from the homeowner and referrals for future projects.
Case Study 2: Internet Installation
An internet service provider faced frequent complaints of connectivity issues. By retraining their technicians on proper coax crimping techniques, they significantly reduced service calls related to signal problems, improving customer satisfaction.
Expert Insights
Industry experts emphasize the importance of using quality tools and connectors. They recommend investing in a high-quality crimping tool to ensure precision and consistency in connections.
FAQs
1. What is coax crimping?
Coax crimping is the process of attaching connectors to coaxial cable ends to create a reliable connection for transmitting signals.
2. Do I need special tools to crimp coax cables?
Yes, you will need a coaxial cable stripper and a crimping tool specifically designed for coax connectors.
3. Can I crimp coax cables without a crimping tool?
While it’s technically possible, using a crimping tool is essential for ensuring a secure connection and preventing signal loss.
4. What are the signs of a bad coax connection?
Common signs include poor signal quality, intermittent connections, and complete signal loss.
5. How do I know which coax connector to use?
Choose connectors based on the specific application, such as F-Type for cable TV or BNC for video applications.
6. What is the most common mistake in coax crimping?
Improper stripping of the cable, leading to inadequate connections, is a frequent mistake.
7. Can I reuse coax connectors?
It is not recommended to reuse connectors, as they may not provide a secure connection after being crimped.
8. How long does a coax connection last?
With proper installation, coax connections can last several years, but regular checks are advisable to maintain performance.
9. What is the difference between crimping and soldering coax cables?
Crimping involves mechanically attaching the connector, while soldering uses heat to join the wire and connector. Crimping is generally faster and more common for coax.
10. Where can I find quality coax connectors?
Look for reputable electronic supply stores or online retailers specializing in networking and audio/video equipment.
By following this comprehensive guide, you'll master the art of crimping coax cables, paving the way for successful installations and reliable connections. Whether you're working on a home project or a professional installation, these tips and techniques will ensure your coaxial connections are durable and efficient.
