Introduction

Fixing bent pins on a CPU might sound daunting, but with the right guidance and tools, you can salvage your processor and get your computer back up and running. This guide will take you through everything you need to know about diagnosing and fixing bent CPU pins, ensuring you can tackle this common problem like a pro.

Understanding CPU Pins

Central Processing Units (CPUs) are the brains of computers, and their functionality depends on the integrity of their pins. These tiny, metallic connectors play a crucial role in facilitating communication between the CPU and the motherboard. Understanding the purpose and structure of these pins helps in diagnosing issues when they become bent.

The Function of CPU Pins

• Electrical Connectivity: Pins transmit electrical signals between the CPU and the motherboard.
• Data Transfer: They enable data transfer, allowing your CPU to process information effectively.
• Grounding: Some pins serve the essential function of grounding the CPU.

Common Causes of Bent Pins

Bent pins are often a result of improper handling or installation. Understanding these causes can help you avoid future mishaps.

• Improper Installation: Forcing the CPU into the socket without proper alignment can cause pins to bend.
• Physical Damage: Dropping or mishandling the CPU during transport can lead to bent pins.
• Socket Issues: A malfunctioning socket can also contribute to pin bending.

Assessing the Damage

Before attempting any repairs, it's essential to assess the damage to determine if the CPU is salvageable. Here are steps to guide you:

1. Visual Inspection: Carefully examine the CPU under good lighting.
2. Pin Alignment Check: Look for any pins that appear misaligned or bent.
3. Use a Magnifying Glass: If necessary, use a magnifying glass to observe the pins closely.

Tools You Will Need

Having the right tools is crucial for fixing bent pins effectively. Gather the following items:

• Anti-static wrist strap
• Fine tweezers
• Plastic shim or thin piece of plastic
• Magnifying glass
• Soft cloth or microfiber towel
• Isopropyl alcohol (for cleaning)

Step-by-Step Guide to Fix Bent Pins

Now that you have assessed the damage and gathered your tools, follow this step-by-step guide to fix bent CPU pins:

Step 1: Prepare Your Workspace

Ensure you are working on a clean, static-free surface. Wear an anti-static wrist strap to protect your CPU from static electricity.

Step 2: Remove the CPU

Gently release the CPU from its socket. Be cautious to avoid further bending any pins during this process.

Step 3: Inspect and Identify Bent Pins

With the CPU removed, visually inspect the pins. Identify which ones are bent and need realignment.

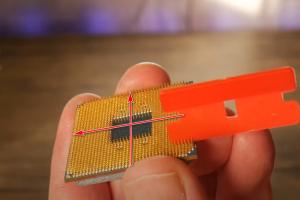

Step 4: Straighten the Pins

Using fine tweezers, carefully grasp the bent pins and gently straighten them. Take your time to avoid breaking any pins. If a pin is severely bent, use a plastic shim to help align it more easily.

Step 5: Clean the CPU

Once all pins are straightened, clean the CPU carefully with isopropyl alcohol and a soft cloth to remove any debris or fingerprints.

Step 6: Reinstall the CPU

Carefully place the CPU back in the socket, ensuring that it is aligned correctly before pressing down.

Step 7: Test the System

Reassemble your computer and power it on to test if the CPU is functioning correctly.

Case Studies

To illustrate the effectiveness of these methods, let’s review a few case studies:

Case Study 1: The DIY Repair

A user named John discovered bent pins on his Intel CPU after a mishap during installation. Following our guide, he managed to straighten the pins using tweezers and was able to boot his PC successfully afterward.

Case Study 2: Professional Help

Another user, Sarah, chose to take her CPU to a professional after noticing severe damage. The technician used a specialized tool to align the pins and managed to salvage the CPU, demonstrating that sometimes, professional assistance is the best option.

Expert Insights

We consulted with several computer repair experts to offer additional insights on handling bent CPU pins:

Expert Recommendation

According to tech expert Dr. Lisa Smith, precision is key when dealing with bent pins. "Always take your time and use the appropriate tools to minimize the risk of breaking any pins," she advises.

Preventing Bent Pins

Prevention is always better than cure. Here are some tips to avoid bending CPU pins in the future:

• Always handle CPUs by the edges, avoiding contact with the pins.
• Use the correct socket type for your CPU model.
• Follow the manufacturer’s installation instructions closely.
