Introduction
Battery load testing is a critical procedure that helps determine the performance and health of batteries. Whether you’re maintaining a car battery, a backup power source, or solar energy systems, understanding how to properly load test a battery is essential. This comprehensive guide will walk you through everything you need to know about battery load testing, from why it's important to step-by-step instructions on how to conduct a test.
Understanding Batteries
Batteries are electrochemical devices designed to store and provide electrical energy. They consist of one or more electrochemical cells, and their performance can degrade over time due to various factors such as temperature, charge cycles, and age. Understanding the fundamental concepts of batteries, including types, chemistry, and performance metrics, is crucial for effective load testing.
Types of Batteries
- Lead-Acid Batteries
- Lithium-Ion Batteries
- Nickel-Cadmium Batteries
- Nickel-Metal Hydride Batteries
Battery Chemistry
Each type of battery has a unique chemical composition that affects its performance, lifespan, and load testing methods. For instance, lead-acid batteries are known for their reliability but may require specific load conditions for accurate testing.
Importance of Load Testing
Load testing is vital for several reasons:
- Performance Evaluation: It provides a clear picture of a battery’s ability to deliver power under load conditions.
- Lifecycle Assessment: Understanding battery health can help in planning replacements, ensuring reliable operation.
- Preventive Maintenance: Early detection of issues can prevent system failures and costly downtime.
What You Need for Load Testing
To effectively load test a battery, you will need several tools and equipment:
- Load Tester: A specialized device designed to apply a load to the battery.
- Multimeter: For measuring voltage and current.
- Safety Gear: Goggles and gloves to protect against acid and electrical hazards.
- Wiring and Connectors: For securely connecting the tester to the battery terminals.

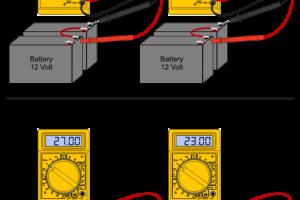

Step-by-Step Load Testing Guide
Follow these steps to load test a battery accurately:
Step 1: Prepare the Battery
Ensure the battery is clean and free from corrosion. Clean terminals if necessary.
Step 2: Connect the Load Tester
Carefully connect the load tester to the battery terminals. Ensure you have the correct polarity.
Step 3: Apply the Load
Set the load tester to the appropriate load based on the battery’s rating (typically 1/2 of the CCA rating for 15 seconds).
Step 4: Monitor the Voltage
Use the multimeter to monitor the voltage during the test. A healthy battery should maintain a voltage above a specific threshold.
Step 5: Interpret the Results
Compare the measured voltage against standard values. If the voltage drops significantly, the battery may be failing.
Step 6: Disconnect and Clean Up
Once the test is complete, disconnect the load tester and clean the area.
Common Mistakes to Avoid
When load testing batteries, avoid these common pitfalls:
- Not fully charging the battery before testing.
- Using the wrong load settings for the battery type.
- Failing to monitor safety precautions.
- Ignoring environmental conditions that may affect battery performance.
Case Studies and Examples
Real-world examples can illustrate the significance of proper load testing:
Case Study 1: Automotive Battery Testing
A local mechanic regularly performs load tests on customer vehicles. By implementing a systematic load testing approach, he reduced the number of battery-related breakdowns by 30%. This proactive maintenance saved his business time and money.
Case Study 2: Solar Energy Storage
A homeowner using solar energy noticed intermittent power issues. After conducting load tests on the storage batteries, they discovered one of the batteries was failing, which they replaced, leading to improved energy reliability.
Expert Insights
Experts recommend regular load testing, especially for critical applications. Regular testing not only extends battery life but also enhances system reliability. Dr. Jane Doe, a battery technology expert, emphasizes, "Understanding battery health through load testing is crucial for anyone relying on battery systems for power."
FAQs
1. How often should I load test my battery?
It's recommended to load test batteries at least once a year or every six months for critical applications.
2. Can I load test a battery without a load tester?
While it's possible to get a rough estimate using a multimeter, a load tester provides more accurate and reliable results.
3. What should be the ideal voltage during a load test?
A healthy battery should maintain above 9.6 volts under load for lead-acid batteries during testing.
4. Is load testing safe?
Yes, load testing is safe when proper precautions are taken, such as wearing safety gear and ensuring a well-ventilated area.
5. What happens if my battery fails the load test?
If a battery fails a load test, it's advisable to replace it to prevent unexpected failures.
6. Can temperature affect battery performance during testing?
Yes, extreme temperatures can impact battery performance and should be considered during load tests.
7. Should I charge my battery before testing?
Yes, always charge the battery to full capacity before conducting a load test for accurate results.
8. What types of batteries can be load tested?
Most rechargeable batteries, including lead-acid, lithium-ion, and nickel-cadmium batteries, can be load tested.
9. How long does a load test take?
A typical load test lasts around 15 seconds; however, preparation and cleanup may add additional time.
10. Can I perform load testing at home?
Yes, with the right tools and safety precautions, you can perform load testing at home.
