Mastering Electrical Resistor Color Codes: A Comprehensive Guide
- Electronics Quick Links:
- 1. Introduction
- 2. Understanding Resistor Color Codes
- 3. The Color Code Chart
- 4. Mnemonics to Remember Color Codes
- 5. Practical Examples
- 6. Case Studies and Expert Insights
- 7. Step-by-Step Guide to Using Color Codes
- 8. Common Mistakes When Reading Resistor Codes
- 9. Conclusion
- 10. FAQs
1. Introduction
Understanding electrical resistor color codes is essential for anyone working in electronics, whether as a hobbyist or a professional. Resistors are fundamental components in electronic circuits, influencing how devices operate. But how do you remember the color codes used to indicate their resistance values? This comprehensive guide will provide you with all the tools you need to master resistor color codes, enabling you to work with confidence.
2. Understanding Resistor Color Codes
Electrical resistors are color-coded to indicate their resistance values and tolerances. The color bands on a resistor represent numbers, which can be decoded to determine the resistance. Typically, a standard resistor will have four or five color bands.
The Basics of Resistor Color Coding
The first two or three bands represent significant digits, the next band represents a multiplier, and the last band represents tolerance. Here’s a breakdown of the colors and their corresponding values:
Color | Digit | Multiplier | Tolerance |
---|---|---|---|
Black | 0 | ×1 | - |
Brown | 1 | ×10 | ±1% |
Red | 2 | ×100 | ±2% |
Orange | 3 | ×1,000 | - |
Yellow | 4 | ×10,000 | - |
Green | 5 | ×100,000 | ±0.5% |
Blue | 6 | ×1,000,000 | ±0.25% |
Violet | 7 | - | ±0.1% |
Gray | 8 | - | ±0.05% |
White | 9 | - | - |
Gold | - | ×0.1 | ±5% |
Silver | - | ×0.01 | ±10% |

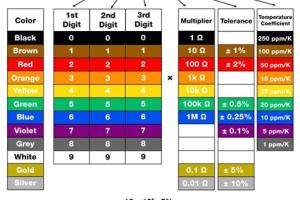

3. The Color Code Chart
To effectively remember resistor color codes, having a color code chart handy is beneficial. Here is a simple chart you can use:
| Color | Digit | Multiplier | Tolerance | |---------|-------|--------------|------------| | Black | 0 | ×1 | - | | Brown | 1 | ×10 | ±1% | | Red | 2 | ×100 | ±2% | | Orange | 3 | ×1,000 | - | | Yellow | 4 | ×10,000 | - | | Green | 5 | ×100,000 | ±0.5% | | Blue | 6 | ×1,000,000 | ±0.25% | | Violet | 7 | - | ±0.1% | | Gray | 8 | - | ±0.05% | | White | 9 | - | - | | Gold | - | ×0.1 | ±5% | | Silver | - | ×0.01 | ±10% |
4. Mnemonics to Remember Color Codes
One of the most effective ways to remember the resistor color codes is to use mnemonics. Here are some popular phrases that can help:
- “BB ROY of Great Britain Had a Very Good Wife” - This covers the first letters of the colors: Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Gray, White.
- “Black Brown Red, Orange Yellow Green, Blue Violet Gray, White and Gold” - A simple sing-along can also help in memorizing the sequence.
5. Practical Examples
Let’s apply what we’ve learned with some practical examples:
Example 1: Reading a Resistor
Suppose you have a resistor with color bands: Red, Red, Brown, and Gold. Here’s how to read it:
- Red (2), Red (2) gives you 22.
- Brown (×10) means you multiply 22 by 10, resulting in 220 ohms.
- Gold indicates a tolerance of ±5%.
Example 2: Finding Resistance Value
Now, let’s say you want to find the resistance value of a resistor with color bands: Green, Blue, Orange. The steps are:
- Green (5), Blue (6) gives you 56.
- Orange (×1,000) means you multiply 56 by 1,000, resulting in 56k ohms.
6. Case Studies and Expert Insights
In this section, we will look at a few case studies to understand how engineers and hobbyists deal with resistor color codes in real-world applications.
Case Study 1: Hobbyist Electronics Projects
Many hobbyists use these color codes to build their own circuits. For instance, a beginner might create a simple LED circuit using resistors and must ensure the correct resistance to prevent burning out the LED. Understanding the resistor color codes is vital for this.
Expert Insight: The Importance of Accuracy in Coding
Experts in electronics emphasize the need for accuracy when interpreting color codes. A small error can lead to malfunctioning circuits. Thus, comprehensive knowledge of these codes is essential.
7. Step-by-Step Guide to Using Color Codes
Here’s a step-by-step guide on how to effectively use resistor color codes:
- Identify the color bands on the resistor.
- Refer to the color code chart to convert colors into numerical values.
- Calculate the resistance value using the significant digits and the multiplier.
- Note the tolerance for more accurate circuit design.
- Double-check your readings to avoid mistakes.
8. Common Mistakes When Reading Resistor Codes
Even experienced individuals can make mistakes when interpreting color codes. Here are some common pitfalls:
- Confusing similar colors (e.g., red and brown).
- Forgetting to apply the multiplier correctly.
- Neglecting to check tolerance, which could lead to significant errors in circuit performance.
9. Conclusion
Mastering electrical resistor color codes is crucial for anyone involved in electronics. With the right techniques, mnemonics, and a solid understanding of the principles behind these codes, you can navigate the world of resistors with ease. Whether you are a novice or an experienced engineer, this guide has provided you with the necessary tools to remember these vital codes effectively.
10. FAQs
What are resistor color codes?
Resistor color codes are a system of colored bands on resistors that indicate their resistance values and tolerance.
How many color bands are there on a resistor?
Typically, resistors have four or five color bands.
What do the colors on a resistor mean?
The colors represent numerical values that can be decoded to find the resistor's resistance and tolerance.
How can I memorize resistor color codes?
Using mnemonics and repetition are effective methods for memorizing resistor color codes.
What is the tolerance in resistor color codes?
Tolerance indicates how much the actual resistance can vary from the stated value, expressed as a percentage.
Can I use a multimeter to check the resistance?
Yes, using a multimeter is a reliable way to measure resistance directly, regardless of color codes.
Why do we use color codes instead of numbers?
Color codes allow for easy identification of values without needing to print small numbers on the resistor.
What happens if I misread the color code?
Misreading the color code can result in incorrect resistance values, potentially damaging your circuit.
Are there digital tools to help with resistor color codes?
Yes, many digital tools and apps can assist you in decoding resistor color codes quickly.
Where can I find a color code chart?
Color code charts can be found online, in electronics textbooks, or as reference materials in electronics kits.
