Mastering Banana Plugs: A Comprehensive Guide to Installation and Usage

• Audio Equipment
Quick Links:
• 1. Introduction
• 2. What Are Banana Plugs?
• 3. Benefits of Using Banana Plugs
• 4. Types of Banana Plugs
• 5. How to Install Banana Plugs
• 6. Common Issues and Solutions
• 7. Case Studies
• 8. Expert Insights
• 9. Conclusion
• 10. FAQs

1. Introduction

Banana plugs are a vital component in modern audio setups, providing a reliable and convenient way to connect speakers to amplifiers or receivers. Whether you're an audiophile, a home theater enthusiast, or just someone looking to improve your audio experience, understanding how to use banana plugs effectively can make a significant difference. This comprehensive guide will take you through everything you need to know about banana plugs, from their types and benefits to installation techniques and troubleshooting common issues.

2. What Are Banana Plugs?

Banana plugs are a type of electrical connector used primarily to connect audio equipment. They are named for their shape, resembling a banana. Typically made from brass and gold-plated for better conductivity, banana plugs offer a simple, reliable way to connect and disconnect speakers without the hassle of bare wire connections.

Key Features of Banana Plugs

• Easy to use and connect/disconnect
• Provides a secure connection that minimizes signal loss
• Compatible with a wide range of audio equipment
• Available in various designs and sizes

3. Benefits of Using Banana Plugs

Using banana plugs provides several advantages over traditional bare wire connections:

• Convenience: Easily connect and disconnect speakers without the risk of damaging the terminals.
• Improved Signal Quality: Banana plugs ensure a tight fit, reducing the chance of signal loss due to poor connections.
• Neatness: They help keep your wiring organized and tidy, reducing clutter.
• Versatility: Compatible with various types of audio equipment, making them ideal for DIY projects.

4. Types of Banana Plugs

There are several types of banana plugs available, each designed for different applications:

• Standard Banana Plugs: Basic design, suitable for most audio applications.
• Locking Banana Plugs: Features a mechanism that locks the plug in place, ensuring a secure connection.
• Dual Banana Plugs: Allows for two connections in a single plug, useful for bi-wiring setups.

5. How to Install Banana Plugs

Installing banana plugs is a straightforward process. Follow these steps for a successful installation:

Materials Needed

• Banana plugs
• Speaker wire
• Wire stripper
• Phillips screwdriver (if applicable)

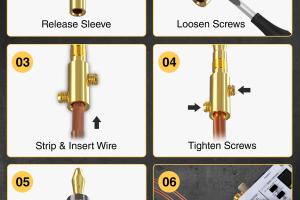

Step-by-Step Installation Guide

1. Prepare the Speaker Wire: Use a wire stripper to remove about 1 inch of insulation from the end of the speaker wire.
2. Twist the Strands: Twist the exposed strands of wire together to prevent fraying.
3. Insert the Wire into the Banana Plug: Open the banana plug and insert the twisted wire into the appropriate slot.
4. Secure the Connection: Tighten the screw on the banana plug or close the clamp to hold the wire securely in place.
5. Repeat: Repeat the process for the other end of the wire and for all necessary connections.

6. Common Issues and Solutions

Even with the best equipment, you may encounter issues. Here are some common problems and their solutions:

Loose Connections

Solution: Ensure that the wire is securely fastened within the banana plug, and check for any damage to the wire.

Corrosion

Solution: Use gold-plated banana plugs to minimize oxidation and ensure better conductivity.

Signal Loss

Solution: Check all connections and ensure that the banana plugs fit snugly into the speaker and amplifier terminals.

7. Case Studies

Several audiophiles have shared their experiences with banana plugs in various setups:

Case Study 1: Home Theater Setup

An audiophile upgraded their home theater system using banana plugs for easy connection. They reported improved sound quality and convenience, especially for troubleshooting.

Case Study 2: DIY Audio Project

A DIY enthusiast used banana plugs in a custom speaker project. They found them easy to work with, allowing for quick adjustments to their wiring without hassle.

8. Expert Insights

Experts recommend using banana plugs for their reliability and ease of use. Many suggest choosing locking banana plugs for high-end audio systems to ensure a secure connection.

9. Conclusion

Banana plugs are an essential tool for anyone looking to enhance their audio experience. By understanding their use and benefits, you can ensure a reliable and high-quality connection for your audio equipment.

10. FAQs

What are banana plugs used for?

Banana plugs are used to connect speaker wires to audio equipment like amplifiers and receivers.

How do I know which banana plugs to buy?

Choose banana plugs that match your speaker wire gauge and consider locking versions for a more secure connection.

Can I use banana plugs with any speaker?

Most speakers that have binding posts are compatible with banana plugs.

Do banana plugs affect sound quality?

When properly connected, banana plugs can improve sound quality by minimizing signal loss.

How do I remove banana plugs?

Simply pull them straight out of the terminals to remove them.

Can I use banana plugs for video connections?

Banana plugs are primarily designed for audio connections and are not suitable for video applications.

How many banana plugs do I need?

The number of banana plugs depends on how many speakers you have and the configuration of your audio system.

Are banana plugs reusable?

Yes, banana plugs can be reused as long as they are not damaged.

Can I use banana plugs with other types of connectors?

Banana plugs are generally used with binding posts, but adapters are available for other connectors.

What is the difference between single and dual banana plugs?

Single banana plugs connect one wire, while dual banana plugs allow for two wires in one plug, useful for bi-wiring.
