Mastering the Art of Fishing Wires Through Conduits: A Comprehensive Guide
- DIY Electrical Quick Links:
- Introduction
- Understanding Conduits
- Tools Required
- Preparation Steps
- Fishing Techniques
- Troubleshooting Common Issues
- Case Studies
- Expert Insights
- Safety Considerations
- FAQs
Introduction
Fishing wires through conduits or pipes is a crucial skill for electricians and DIY enthusiasts alike. Whether you're running new electrical lines for a home renovation or installing a new circuit, understanding the best methods for fishing wires can save time and prevent damage to your materials. This guide aims to provide a comprehensive overview of the techniques, tools, and best practices for fishing wires through conduits, ensuring a smooth and successful installation.Understanding Conduits
Conduits are tubes used to protect and route electrical wiring in a building. They come in various materials, including PVC, metal, and flexible options, and are essential for ensuring the safety and longevity of electrical installations. Key types of conduits include:- PVC Conduit: Lightweight and resistant to corrosion, ideal for indoor and outdoor use.
- Metal Conduit: Offers maximum protection, especially for areas that require extra durability.
- Flexible Conduit: Useful in tight spaces where rigid conduits cannot be installed.
Tools Required

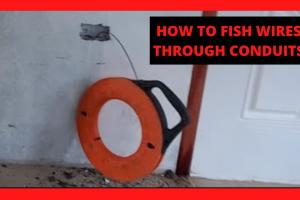

To fish wires through a conduit effectively, you'll need a selection of tools. Here’s a list of essential tools to have on hand:- Fish Tape: A long, flat piece of metal used to pull wires through conduits.
- Wire Pulling Grips: Help secure the wire to the fish tape for easier pulling.
- Drill with a Bit: For making holes if you need to access walls or ceilings.
- Conduit Bender: To shape your conduit for tight turns.
- Pulling Lubricant: Reduces friction and makes pulling wires easier.
- Measuring Tape: For measuring lengths of wire and conduit.
- Wire Cutters: Essential for trimming wires to the required length.
- Voltage Tester: Ensures that the lines are safe to work with.
Preparation Steps
Before you begin fishing wires through the conduit, follow these preparation steps to ensure a successful process: 1. **Plan Your Path:** Map out the route your wires will take, taking note of any potential obstacles. 2. **Measure Conduit Length:** Ensure that you have enough conduit to cover the distance you need, plus additional lengths for bends and fittings. 3. **Check Conduit for Debris:** Ensure that your conduit is clean and free from obstructions that could hinder the fishing process. 4. **Gather Your Materials:** Have all your tools and materials within reach to streamline the process.Fishing Techniques
Now that you are prepared, let’s delve into the techniques for fishing wires through conduits. ### Basic Techniques 1. **Using Fish Tape:** - Insert the fish tape into one end of the conduit until it reaches the other end. - Attach the wire securely to the fish tape using a wire pulling grip. - Pull the fish tape back through the conduit, drawing the wire behind it. 2. **Using a Wire Pulling Sock:** - Insert the sock over the fish tape and attach the wire to the sock. - Pull the fish tape through the conduit, which will pull the wire along with it. ### Advanced Techniques 1. **Using a Vacuum System:** - Attach a small vacuum to one end of the conduit and place a lightweight string at the other end. - The vacuum will pull the string through, allowing you to attach your wire to the string and pull it through. 2. **Using a Guide Wire:** - Run a lightweight guide wire through the conduit first. - Use this wire to pull your heavier electrical wire through.Troubleshooting Common Issues
While fishing wires through conduits is a straightforward task, you may encounter issues. Here are some common problems and solutions: - **Wire Snagging:** If the wire gets stuck, check for bends or obstructions in the conduit. Use lubricant if necessary. - **Too Much Resistance:** If you feel excessive resistance, ensure that the wire is not entangled and that you’re not exceeding the conduit fill limit. - **Difficulty Locating the Exit Point:** Use a wire tracer or a similar tool to locate the wire’s exit point if you cannot find it.Case Studies
**Case Study 1: Residential Wiring Installation** A homeowner planned to install new lighting fixtures in their living room. Using fish tape and a wire pulling grip, they successfully ran wires through a 10-foot PVC conduit without any snags or obstructions. **Case Study 2: Commercial Electrical Upgrade** An electrician was tasked with upgrading the electrical system in a small office. By utilizing a vacuum system to pull a guide wire first, they streamlined the process, completing the installation in half the expected time.Expert Insights
According to electrical expert Mike Johnson, "The key to a smooth wire fishing process lies in preparation. Ensure your conduit is clean and you have the right tools ready. Always consider using pulling lubricants for easier navigation through bends."Safety Considerations
When working with electrical wiring, safety should always be your top priority. Here are some important safety tips: - Always turn off power before starting any electrical work. - Use insulated tools to prevent electrical shock. - Wear safety goggles to protect your eyes from debris. - If you're unsure about anything, consult a professional electrician.FAQs
- 1. What is the best tool for fishing wires?
- The most commonly used tool is fish tape, which is designed specifically for this purpose.
- 2. Can I fish wires through a curved conduit?
- Yes, but using lubricants and flexible fish tape can help navigate curves more easily.
- 3. How do I know the size of conduit I need?
- The size depends on the number and type of wires you plan to run; consult the NEC guidelines for fill limits.
- 4. Is it necessary to lubricate wires before pulling?
- Using a pulling lubricant can significantly reduce friction and make the process easier.
- 5. Can I fish wires through walls?
- Yes, you can fish wires through walls as long as you have access points on both sides.
- 6. What should I do if my wire gets stuck?
- Check for bends or obstructions in the conduit, and use lubricant to help free the wire.
- 7. Can I use a vacuum to pull wires?
- Yes, a vacuum can be an effective way to pull a guide wire through the conduit.
- 8. How do I secure the wire to the fish tape?
- Using a wire pulling grip is the best way to securely attach the wire to the fish tape.
- 9. What materials are conduits made of?
- Conduits can be made from PVC, metal, or flexible materials, each with its advantages.
- 10. When should I consult a professional?
- If you're unsure about any aspect of electrical work, it's always best to consult a qualified electrician.
