Introduction
The power supply unit (PSU) is one of the most critical components of a computer system. It provides power to all the internal parts of your PC, ensuring they operate correctly. A failed power supply can lead to a complete system shutdown, data loss, and costly repairs. In this guide, we will explore the process of diagnosing and replacing a failed PC power supply, ensuring you have all the necessary knowledge to tackle this common issue.
Understanding Power Supplies
A power supply unit converts the alternating current (AC) from your wall outlet into the direct current (DC) used by your computer components. Here are the key components of a power supply:
- Transformers: Convert AC to DC.
- Capacitors: Smooth out fluctuations in power.
- Cooling Fans: Prevent overheating.
- Cables and Connectors: Deliver power to the motherboard, drives, and peripherals.
Symptoms of a Failed Power Supply
Identifying a failing power supply is crucial for timely intervention. Here are common symptoms:
- PC won't turn on: No lights or sounds when the power button is pressed.
- Random shutdowns: The computer shuts off unexpectedly during use.
- Frequent crashes: Increased BSOD (Blue Screen of Death) occurrences.
- Burning smell: A noticeable burnt odor emanating from the PSU.
- Overheating: The PSU or computer case feels excessively hot.
Diagnosing a Failed Power Supply
Before replacing your power supply, it’s essential to properly diagnose the problem. Here’s how to do it:
Initial Checks
- Ensure the power cable is securely connected to both the wall outlet and the PSU.
- Check for any visible damage to the power cable.
- Confirm that the power switch at the back of the PSU is turned on.
Using a Multimeter
A multimeter is an invaluable tool for diagnosing power supply issues. Follow these steps to test your PSU:
- Turn off your PC and unplug it from the wall.
- Open the case and disconnect the power supply from all components.
- Set the multimeter to the DC voltage setting.
- Insert the black probe into the COM port and the red probe into the VΩmA port.
- Check the voltage output of the PSU connectors (24-pin, 4-pin, etc.) against the expected values. For example, the yellow wires should read +12V, the red wires +5V, and the orange wires +3.3V.
Tools Needed for Diagnosis
Before diving into the diagnosis process, gather the following tools:
- Multimeter
- Screwdriver set
- Flashlight
- Anti-static wrist strap (optional, but recommended)
Step-by-Step Diagnosis
Here’s a step-by-step guide to diagnosing a failed power supply:
- Perform initial checks as outlined above.
- Use a multimeter to test voltage outputs.
- If voltages are not within acceptable ranges, the PSU may be failing.
- Consider testing the PSU in another working computer to confirm failure.
Choosing a Replacement Power Supply
When selecting a replacement power supply, consider the following factors:
- Wattage: Ensure the PSU has enough wattage to support your system's components.
- Efficiency Rating: Look for 80 PLUS certification for better energy efficiency.
- Modularity: Modular, semi-modular, and non-modular options offer different cable management benefits.
- Brand Reputation: Choose reputable brands known for quality and reliability.

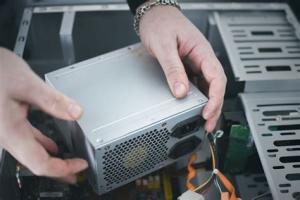

Step-by-Step Replacement
Here's how to replace a failed power supply:
- Turn off the PC and unplug it from the wall.
- Open the case and carefully remove the old PSU by disconnecting all cables.
- Install the new PSU by connecting it to the motherboard, drives, and peripherals.
- Secure the PSU in place with screws.
- Double-check all connections, close the case, and plug the PC back in.
- Turn on the power and test the system.
Case Studies
Below are real-world examples of PC power supply failures and the subsequent resolutions:
Case Study 1: Random Shutdowns
A user reported random shutdowns while gaming, often in high-load situations. Upon diagnosis, the power supply was found to be providing inconsistent voltages. Replacement with a higher-rated PSU resolved the issue, leading to stable operation.
Case Study 2: PC Won't Start
Another user faced a completely non-responsive PC. Initial checks revealed a faulty power cable. After replacing the cable, the system booted successfully, indicating that not all power issues stem from the PSU itself.
FAQs
FAQs
1. How can I tell if my power supply is failing?
Common signs include the PC not turning on, random shutdowns, and unusual noises from the PSU.
2. Can a faulty power supply damage other components?
Yes, a failing PSU can cause voltage spikes that may damage components like the motherboard, CPU, or hard drives.
3. Is it safe to replace a power supply myself?
Yes, as long as you follow safety precautions and guidelines. Always unplug the PC and discharge static electricity before working inside.
4. What wattage power supply do I need?
Your power supply should have enough wattage to support all connected components. Use online calculators to determine your needs based on your system specifications.
5. How often should I replace my power supply?
Generally, power supplies can last 5-7 years. However, if you experience issues, consider replacing it sooner.
6. Can I use a higher wattage power supply?
Yes, a higher wattage PSU can provide more power, but ensure it fits your system requirements and case dimensions.
7. What is the difference between modular and non-modular power supplies?
Modular PSUs allow you to connect only the cables you need, improving cable management. Non-modular PSUs come with all cables attached.
8. How do I know if my power supply is compatible with my motherboard?
Check the connector types (e.g., 24-pin ATX) and wattage requirements to ensure compatibility.
9. What tools do I need to replace a power supply?
You’ll need a screwdriver, multimeter, and possibly an anti-static wrist strap.
10. Can I test a power supply without a load?
Yes, you can use a multimeter to test voltages, but some PSUs require a load to function correctly during tests.
Conclusion
Diagnosing and replacing a failed power supply is a manageable task for most PC users. By following the steps outlined in this guide, you can ensure your computer remains operational and efficient. Remember to always prioritize safety and consult with professionals if in doubt.
