Ultimate Guide to Debugging a Dead Motherboard: Step-by-Step Solutions

• Computer Hardware
Quick Links:
• Introduction
• Understanding Motherboard Failure
• Symptoms of a Dead Motherboard
• Initial Diagnosis
• Step-by-Step Debugging Guide
• Tools Required for Debugging
• Case Studies
• Expert Insights
• FAQs
• Conclusion

Introduction

Debugging a dead motherboard can be a daunting task for both novice and experienced tech enthusiasts. The motherboard is the heart of your computer, connecting all components and ensuring they work harmoniously. When it fails, it can lead to frustrating symptoms like no power, random restarts, or hardware malfunctions. In this guide, we will explore the common causes of motherboard failure, how to diagnose the issues, and provide a comprehensive step-by-step debugging approach.

Understanding Motherboard Failure

Motherboard failure can occur due to various reasons. Understanding these can help in diagnosing the issue effectively:

• Electrical Failure: Power surges or faulty power supplies can damage the motherboard.
• Heat Damage: Overheating components can lead to solder joint failure.
• Physical Damage: Dropping a device or improper handling can cause physical damage.
• Component Failure: Defective capacitors or chips can lead to motherboard malfunction.

Symptoms of a Dead Motherboard

Recognizing the symptoms of a dead motherboard is crucial in the debugging process. Here are some common signs:

• No power to the motherboard.
• Power LED lights on the motherboard do not turn on.
• Beeping sounds from the motherboard.
• Inability to boot into BIOS.
• Random system crashes or freezes.

Initial Diagnosis

Before diving into complex debugging steps, conducting a preliminary diagnosis is essential. Here’s how to go about it:

1. Check Power Supply: Ensure that the power supply is functioning correctly and is properly connected to the motherboard.
2. Inspect Connections: Verify that all cables and components are securely connected.
3. Test with Minimal Configuration: Remove unnecessary components like extra RAM, GPU, or drives to isolate the issue.

Step-by-Step Debugging Guide

Now that you have an understanding of the symptoms and initial diagnosis, follow these detailed steps to debug the motherboard:

Step 1: Visual Inspection

Open your computer case and perform a visual inspection of the motherboard. Look for:

• Physical damage or burns.
• Swollen or leaking capacitors.
• Loose or missing screws.

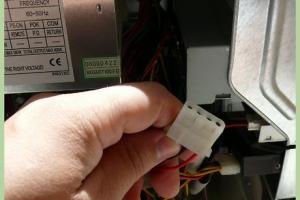

Step 2: Testing Power Supply

Use a multimeter to test the power supply voltages. Ensure they meet the specifications listed on the power supply unit (PSU).

Step 3: Clearing CMOS

Reset the BIOS settings by clearing the CMOS. This can sometimes resolve boot issues. Refer to your motherboard manual for the correct procedure.

Step 4: Check for Short Circuits

Ensure there are no short circuits by removing the motherboard and testing it outside the case on a non-conductive surface.

Step 5: Testing RAM

Faulty RAM can mimic motherboard failure. Test each RAM stick individually in different slots to identify issues.

Step 6: Inspecting CPU and Socket

Check the CPU for proper seating and inspect the socket for bent pins or debris. Reseat the CPU if necessary.

Step 7: Using POST Diagnostic Cards

Utilize a POST diagnostic card to identify error codes that can provide insight into motherboard issues.

Tools Required for Debugging

Having the right tools can make the debugging process smoother. Here’s a list of essential tools:

• Multimeter
• POST diagnostic card
• Screwdrivers
• Antistatic wrist strap
• Compressed air for cleaning

Case Studies

Learning from real-world examples can provide valuable insights into debugging motherboards. Here are a few case studies:

Case Study 1: Power Supply Issues

A user reported their computer would not power on. After testing the power supply with a multimeter, it was found to be delivering no voltage. Replacing the PSU resolved the issue.

Case Study 2: Capacitor Failure

Another case involved a motherboard with swollen capacitors which caused random shutdowns. Replacing the defective capacitors restored functionality.

Expert Insights

We consulted with computer hardware experts to gather insights on common mistakes during motherboard debugging:

• Ignoring power supply issues: Many users overlook the power supply as a potential culprit.
• Not grounding themselves: Failing to use an antistatic wrist strap can lead to static discharge damaging components.

FAQs

Conclusion

Debugging a dead motherboard can seem overwhelming, but with the right approach, tools, and knowledge, it can be managed effectively. By following this comprehensive guide, you can diagnose and troubleshoot issues with confidence. Remember to take precautions when handling electronic components and consult professional help if needed.
