Introduction
Whirlpool washers are known for their reliability and efficiency, but sometimes, issues can arise with the magnetic lid switch, preventing your washer from operating correctly. In this comprehensive guide, we will explore how to bypass a magnetic lid switch on a Whirlpool washer safely. This article will not only provide you with step-by-step instructions but also share valuable insights, real-world case studies, and expert advice to ensure you make informed decisions about your appliance repair.
Understanding Magnetic Lid Switches
The magnetic lid switch is a safety feature designed to prevent the washer from running when the lid is open. This mechanism is crucial for user safety, as it stops the machine from spinning or agitating when access is available to the drum. However, these switches can malfunction, leading to frustration for users who wish to continue their laundry tasks.
Before attempting to bypass this switch, it’s essential to understand its function. The magnetic lid switch operates through a magnet located on the lid and a sensor inside the washer. When the lid is closed, the magnet aligns with the sensor, allowing the washer to operate. If the switch fails, the washer may display symptoms such as:
- The washer does not start.
- The washer stops during a cycle.
- Error codes appear on the display panel.
Safety Considerations
Bypassing a magnetic lid switch can pose safety risks, and it is crucial to proceed with caution. Here are some essential safety tips:
- Always unplug the washer before attempting any repairs.
- Ensure that the area around the washer is dry and free from water.
- Wear safety goggles and gloves to protect yourself from any sharp edges or electrical components.
- Understand that bypassing the lid switch can lead to unsafe operating conditions; it should only be done temporarily for troubleshooting.
Tools and Materials Needed
Before beginning the bypass process, gather the following tools and materials:
- Screwdriver (Phillips and flathead)
- Wire cutters/strippers
- Electrical tape
- Multimeter (for testing continuity)
- Replacement lid switch (optional, for future repairs)
Step-by-Step Guide to Bypass the Lid Switch
Now that you are prepared, follow these steps to bypass the magnetic lid switch on your Whirlpool washer:
Step 1: Unplug the Washer
Always start by disconnecting your washer from the power source. This step is crucial for your safety.
Step 2: Access the Lid Switch
Locate the lid switch. Typically, it is found on the top of the washer’s body, near the hinge of the lid. You may need to remove the control panel or the top cover, depending on your model.

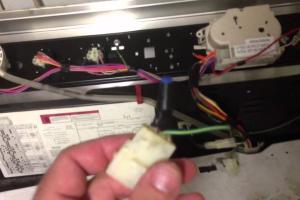

Step 3: Detach the Lid Switch Wires
Use a screwdriver to remove any screws holding the lid switch in place. Carefully detach the wires connected to the switch. Take note of which wires are connected to which terminals.
Step 4: Bypass the Switch
Using wire cutters, strip approximately half an inch of insulation from the ends of the wires you previously disconnected. Connect the two wires together using a wire connector or electrical tape. Ensure there are no exposed wires, as this can create a short circuit.
Step 5: Reassemble the Washer
Once the wires are connected, reattach the control panel or top cover. Ensure all screws are tightly secured to prevent any movement during operation.
Step 6: Test the Washer
Plug the washer back into the power source and run a test cycle. Monitor the washer closely to ensure it operates correctly without any issues.
Common Issues and Troubleshooting
After bypassing the magnetic lid switch, you may still encounter some issues. Here are a few common problems and their troubleshooting steps:
- Washer Does Not Start: Check if the power cord is correctly plugged in and if there is power in the outlet. Test the outlet using another device.
- Washer Stops Mid-Cycle: This may indicate an underlying issue with the motor or control board. Inspect for any visible damage.
- Unusual Noises: If you hear grinding or rattling noises, it may be due to loose components that need tightening.
Case Studies
Many users have faced issues with the magnetic lid switch in their Whirlpool washers. Here are a couple of case studies illustrating the common challenges and solutions:
Case Study 1: The Frustrated User
A user reported that their Whirlpool washer would not start despite attempting multiple settings. After bypassing the lid switch, the washer operated normally, allowing them to complete their laundry. However, they were advised to replace the switch for long-term safety.
Case Study 2: Temporary Fix
Another user faced intermittent issues with their washer stopping mid-cycle. Bypassing the switch helped identify that the switch was faulty. This user opted for a permanent repair by replacing the switch instead of relying on the bypass.
Expert Insights
Experts recommend that while bypassing the lid switch can be a temporary solution, it is essential to address the underlying issues promptly. Ignoring these problems can lead to further complications and safety risks.
Additionally, many appliance repair technicians suggest maintaining regular checks on your washer's components, including the lid switch, to prevent future issues.
Conclusion
Bypassing a magnetic lid switch on a Whirlpool washer can be a straightforward process if done correctly. However, safety should always be your priority. While this guide provides a temporary solution, it is crucial to plan for a permanent fix by replacing the faulty lid switch. Regular maintenance and checks can help ensure your washer operates efficiently for years to come.
FAQs
- Can I run my Whirlpool washer without the lid switch?
It is not recommended as it poses safety risks. Always replace the lid switch for safe operation. - How do I know if my lid switch is faulty?
Symptoms include the washer not starting, stopping mid-cycle, or displaying error codes. - Is bypassing the lid switch legal?
While it may not be illegal, it is not safe and can void warranties. - What should I do if my washer is still not working after bypassing the lid switch?
Inspect other components, such as the motor or control board, or consult a professional technician. - How much does it cost to replace a lid switch?
The cost can vary, but it typically ranges from $50 to $150, including parts and labor. - Are there specific Whirlpool washer models that are more prone to lid switch issues?
Some models may experience more frequent issues; consult user reviews or forums for insights. - Can I troubleshoot the lid switch without bypassing it?
Yes, using a multimeter to test for continuity is an effective way to diagnose the switch. - How often should I check my washer’s lid switch?
It’s advisable to inspect it during regular maintenance, ideally every six months. - What are the risks of bypassing the lid switch?
Bypassing can lead to accidental injuries, as the washer may operate with the lid open. - Should I consult a professional for repairs if I am unsure?
Yes, if you feel uncomfortable performing repairs, it’s best to consult an appliance repair professional.
