Introduction

Connecting devices using HDMI cables has become a standard practice in households and professional environments alike. Whether you are setting up a new home theater system, connecting a gaming console, or linking your laptop to a monitor, understanding HDMI connections is essential. In this guide, we will delve deep into how to connect devices using HDMI cables, troubleshooting common issues, and exploring advanced features that can enhance your experience.

Understanding HDMI Technology

HDMI, or High-Definition Multimedia Interface, is a standard for transmitting high-definition video and audio from a source to a display. Since its introduction in 2003, HDMI has evolved through several versions, each offering improvements in bandwidth and features.

The Evolution of HDMI

- **HDMI 1.0**: The original version supporting 1080p video and multi-channel audio. - **HDMI 1.4**: Introduced support for 4K video and Ethernet over HDMI. - **HDMI 2.0**: Increased bandwidth to 18 Gbps, allowing for 4K at 60 Hz. - **HDMI 2.1**: The latest version, supporting 8K video, dynamic HDR, and enhanced audio return channel (eARC). Understanding these versions can help you choose the right HDMI cable for your devices.

Types of HDMI Cables

There are several types of HDMI cables available on the market today, each suited for different applications:

Standard HDMI Cable

Designed for most applications, supporting resolutions up to 1080p.

High-Speed HDMI Cable

Supports higher resolutions, including 4K and 3D content.

Premium High-Speed HDMI Cable

Ideal for high-end devices, supporting 4K at high frame rates and enhanced color.

Ultra High-Speed HDMI Cable

Offers the highest bandwidth for 8K video, recommended for the latest devices.

How to Connect HDMI Devices

Connecting devices with HDMI cables is a straightforward process. Here’s a step-by-step guide to ensure a successful connection:

Step 1: Gather Your Equipment

- HDMI cable (appropriate type for your devices) - Source device (e.g., laptop, gaming console) - Display device (e.g., TV, monitor)

Step 2: Locate HDMI Ports

Find the HDMI ports on both your source and display devices. These are typically labeled and can vary in size depending on the type of HDMI cable being used.

Step 3: Connect the HDMI Cable

Insert one end of the HDMI cable into the source device’s HDMI output port and the other end into the display device’s HDMI input port.

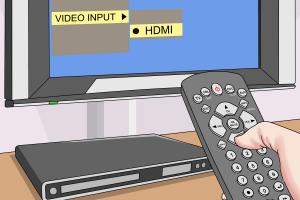

Step 4: Select the HDMI Source

Turn on your display device and use the remote control to select the corresponding HDMI input. This is crucial for the display to recognize the connected source.

Step 5: Adjust Audio Settings (if needed)

If you’re using an external speaker system, you may need to adjust the audio settings on your source device to route the sound through the HDMI connection.

Troubleshooting HDMI Issues

Despite its simplicity, users often face issues when connecting devices via HDMI. Here are common problems and their solutions:

No Signal Received

- Ensure both devices are powered on. - Check if the correct HDMI port is selected on the display device. - Try a different HDMI cable or port.

Poor Video Quality

- Ensure you’re using a high-speed HDMI cable, especially for 4K content. - Check the resolution settings on your source device.

Audio Issues

- Verify that the audio output is set to HDMI on the source device. - Check the volume levels on both devices.

HDMI Advanced Features

HDMI technology offers several advanced features that enhance user experience:

ARC (Audio Return Channel)

Allows audio to be sent back from the TV to the audio receiver, simplifying connections.

eARC (Enhanced Audio Return Channel)

Supports higher audio formats, such as Dolby Atmos, providing a better sound experience.

CEC (Consumer Electronics Control)

Enables control of multiple devices with a single remote, simplifying the user experience.

Real-World Case Studies

To illustrate the practical application of HDMI connections, let’s explore a couple of case studies.

Case Study 1: Home Theater Setup

A family decided to upgrade their home entertainment system. By connecting their 4K Blu-ray player, gaming console, and streaming device via HDMI cables to a new 4K TV, they experienced enhanced picture quality and seamless switching between devices.

Case Study 2: Office Presentation Setup

In a corporate setting, a team utilized HDMI connections to link laptops to a projector for presentations. This setup allowed for quick connections and high-quality video output, improving the overall presentation experience.

Expert Insights

To provide you with the best advice, we consulted several technology experts about common HDMI questions and best practices: - **Expert Tip 1**: Always invest in quality HDMI cables, especially for high-definition applications. - **Expert Tip 2**: Keep your devices updated to ensure compatibility with the latest HDMI features.

FAQs

1. What is an HDMI cable?

An HDMI cable is a type of cable used to transmit high-definition video and audio from one device to another.

2. Can HDMI cables carry audio as well as video?

Yes, HDMI cables can carry both audio and video signals simultaneously.

3. How do I know which HDMI cable to buy?

Choose an HDMI cable based on your devices’ compatibility, resolution needs, and desired features.

4. What should I do if my HDMI connection is not working?

Check for power, ensure correct port selection, and inspect the HDMI cable for damage.

5. Are all HDMI cables the same?

No, different types of HDMI cables support varying resolutions and features.

6. Can I use an HDMI cable for gaming?

Yes, HDMI cables are ideal for gaming, providing high-definition video and audio.

7. How long can HDMI cables be?

HDMI cables can vary in length, but longer cables may require signal boosters to maintain quality.

8. What is HDMI ARC?

Audio Return Channel (ARC) allows audio to be sent back from the TV to an audio receiver via the same HDMI cable.

9. Do I need to configure settings after connecting HDMI devices?

Sometimes, you may need to adjust audio and video settings on your devices for optimal performance.

10. Can I connect multiple HDMI devices?

Yes, you can connect multiple devices, but you may need an HDMI switch or receiver for seamless operation.
