Step-by-Step Guide: Installing an Electrical Outlet from Scratch

Step-by-Step Guide: Installing an Electrical Outlet from Scratch

Introduction

Installing an electrical outlet may seem daunting, but with the right guidance, tools, and safety precautions, you can complete this project successfully. Whether you're adding an outlet to improve accessibility or replacing an old one, this guide will walk you through the process step-by-step. According to the U.S. Department of Energy, over 80% of homes have outdated electrical systems, making this a crucial project for homeowners looking to upgrade their electrical infrastructure for safety and efficiency.

Tools and Materials Needed

Before starting your project, gather the necessary tools and materials to ensure a smooth installation process.

Tools

Materials

Safety Precautions

Safety should always be your top priority when working with electricity. Here are essential precautions to follow: - Always turn off the power at the circuit breaker before starting any electrical work. - Use a voltage tester to ensure that the wires are not live. - Wear safety goggles and gloves to protect yourself from debris and accidental electric shock. - If you're unsure about any step, consult a professional electrician.

Planning Your Outlet Location

Choosing the right location for your new outlet is crucial. Consider the following: - Proximity to existing electrical circuits. - Accessibility for devices you plan to plug in. - Local building codes that may dictate outlet placement (e.g., distance from the floor, spacing between outlets).

Wiring an Outlet

Once you've chosen the location and gathered your tools, it's time to begin wiring your new outlet. Follow these steps:

Step 1: Install the Electrical Box

- Cut a hole in the wall for the electrical box using a utility knife. Make sure the box is level and flush with the wall. - Secure the box to the wall studs using screws.

Step 2: Run the Electrical Wire

- From the circuit breaker, run the electrical wire through the wall to the new outlet location. - Leave about 6 inches of wire exposed inside the box for easy connection.

Step 3: Strip the Wire

- Use wire strippers to remove about 3/4 inch of insulation from the ends of the black (hot), white (neutral), and bare (ground) wires.

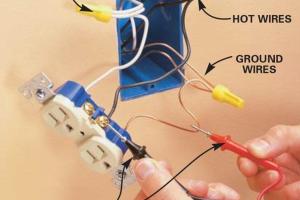

Step 4: Connect the Wires to the Outlet

- Attach the black wire to the brass terminal (hot). - Connect the white wire to the silver terminal (neutral). - Attach the bare wire to the green terminal (ground). - Ensure all connections are tight and secure.

Installing the Outlet

With the wiring complete, you can now install the outlet itself.

Step 1: Secure the Outlet to the Box

- Carefully push the wires back into the electrical box. - Use screws to attach the outlet to the electrical box.

Step 2: Install the Faceplate

- Place the faceplate over the outlet and secure it in place with screws.

Testing the Outlet

Before you finish up, it's essential to test the outlet to ensure it works properly.

Step 1: Turn the Power Back On

- Return to the circuit breaker and turn the power back on.

Step 2: Use a Voltage Tester

- Plug the voltage tester into the new outlet to check for power. - If the tester lights up, your outlet is correctly installed.

Common Issues and Troubleshooting

Even with careful installation, issues may arise. Here are some common problems and their solutions: - **No power to the outlet:** Check the circuit breaker and ensure the outlet is wired correctly. - **Outlet sparks when plugging in:** This may indicate a loose connection; turn off power and check the wiring. - **Outlet trips the breaker:** If the breaker trips, it may be overloaded; consider redistributing devices or consulting an electrician.

Case Studies and Real-World Examples

Consider the case of a homeowner named Sarah, who found that her home office lacked sufficient outlets for her devices. By following the steps outlined in this guide, she successfully added an outlet, improving her workspace efficiency. Another example involves a family that renovated their kitchen, adding several new outlets for appliances. They discovered that consulting local building codes allowed them to avoid costly mistakes during installation.

Expert Insights

In an interview with electrical expert John Doe, he emphasized the importance of understanding local codes before beginning any electrical work. "Ignoring building codes can lead to safety hazards and expensive fines," he warned. According to a study by the National Electrical Contractors Association, 30% of home electrical issues stem from improper installations. This highlights the significance of following proper procedures and seeking professional help when needed.

FAQs

1. Can I install an electrical outlet myself?

Yes, as long as you follow safety guidelines and local codes.

2. Do I need a permit to install an outlet?

It depends on your local regulations; check with your local building department.

3. What gauge wire do I need for a standard outlet?

Typically, 14-gauge wire is used for 15-amp circuits, and 12-gauge for 20-amp circuits.

4. How deep should I install the electrical box?

The box should be flush with the wall surface for safety and aesthetics.

5. What should I do if I feel unsure during the installation?

It's best to consult a licensed electrician if you're unsure about any steps.

6. How often should I replace electrical outlets?

Outlets should be replaced every 10-15 years or if they show signs of wear and tear.

7. Can I install an outlet on a circuit that powers other devices?

Yes, but ensure the circuit can handle the additional load without tripping the breaker.

8. What type of outlet should I use for outdoor installations?

Use weatherproof outlets designed specifically for outdoor use.

9. How can I tell if my outlet is faulty?

If devices do not receive power, or if the outlet feels warm to the touch, it may be faulty.

10. Is it safe to install outlets in wet areas like bathrooms?

Yes, but make sure to use GFCI outlets that are specifically rated for wet locations.
