Ultimate Guide to Installing an Inwall Air Conditioner: Step-by-Step Instructions

1. Understanding Inwall Air Conditioners
2. Tools and Materials Needed
3. Preparing the Installation Site
4. Step-by-Step Installation Guide
5. Post-Installation Tips
6. Common Challenges and Solutions
7. FAQs

1. Understanding Inwall Air Conditioners

Inwall air conditioners are a popular choice for cooling spaces without the bulkiness of traditional window units. They are designed to fit into a wall, providing a cleaner aesthetic and improved functionality. These units are ideal for homes, offices, and other commercial spaces, offering efficient cooling with minimal noise. The inwall AC system typically consists of an indoor unit that is mounted within the wall and an outdoor compressor unit.

Benefits of Inwall Air Conditioners

Space-Saving: Unlike window units, inwall air conditioners do not obstruct views or take up window space.
Energy Efficient: Many inwall models are designed to use less energy while providing effective cooling.
Quieter Operation: These units are generally quieter than traditional window ACs.
Improved Aesthetics: Inwall units blend seamlessly with the wall, creating a more polished look.

2. Tools and Materials Needed

Before beginning the installation process, gather the following tools and materials:

Stud finder
Drill and drill bits
Screwdriver set
Level
Tape measure
Insulation foam
Wire connectors
Wire stripper
Caulking gun and caulk
Safety goggles and gloves
Inwall air conditioner unit

3. Preparing the Installation Site

Choosing the right location for your inwall air conditioner is crucial for optimal performance. Here are the steps to prepare your installation site:

Select the Location: Identify a location on an exterior wall that is not obstructed by furniture or decor.
Check for Obstructions: Use a stud finder to locate studs, electrical wiring, and plumbing within the wall.
Measure the Unit: Confirm the dimensions of your inwall air conditioner and mark the area on the wall where the unit will be installed.
Cut the Opening: Carefully cut out the marked area using a drywall saw, being cautious of any hidden wiring or pipes.

4. Step-by-Step Installation Guide

Follow these detailed steps to install your inwall air conditioner:

Step 1: Prepare the Wall

Ensure the opening is clean and free of debris. Install a wooden frame or support structure within the wall if necessary.

Step 2: Install the Indoor Unit

Carefully place the indoor unit into the wall opening. Use a level to ensure it is straight, and secure it with screws.

Step 3: Connect the Wiring

Follow the manufacturer’s wiring diagram to connect the electrical wires from the indoor unit to the power supply. Ensure all connections are secure and insulated.

Step 4: Install the Outdoor Unit

If your system includes an outdoor compressor, install it in a suitable location with good airflow and secure it according to the manufacturer’s guidelines.

Step 5: Insulate and Seal

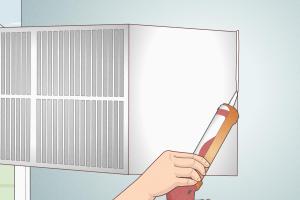

Use insulation foam around the unit to prevent air leaks. Apply caulk around the edges of the unit to create a watertight seal.

Step 6: Test the System

Once everything is installed, turn on the unit and test its functionality. Ensure that it cools effectively and there are no unusual noises.

5. Post-Installation Tips

After installation, consider the following tips for maintaining your inwall air conditioner:

Regularly clean or replace the air filter.
Inspect the drainage system to prevent clogs.
Schedule annual professional maintenance checks.

6. Common Challenges and Solutions

Here are some challenges you may encounter during installation and how to overcome them:

Difficulty Finding Studs: Use a more advanced stud finder or a magnet to locate screws in the drywall.
Electrical Issues: If uncertain, consult a licensed electrician to ensure safe wiring.
Improper Sealing: Check for air leaks and reseal if necessary to improve efficiency.

FAQs

1. How much does it cost to install an inwall air conditioner?

The cost typically ranges from $500 to $1,500, including materials and labor.

2. Can I install an inwall air conditioner myself?

Yes, with the right tools and knowledge, DIY installation is possible. However, professional installation is recommended for safety.

3. How long does the installation process take?

Installation can take anywhere from 2 to 4 hours, depending on your experience and the complexity of the unit.

4. Do I need a permit to install an inwall AC?

Check local building codes as permits may be required for electrical work.

5. What maintenance does an inwall air conditioner require?

Regular cleaning of filters, checking for leaks, and annual professional inspections are recommended.

6. Can I use an inwall air conditioner in a large room?

Choose a unit with a higher BTU rating for larger spaces.

7. How energy efficient are inwall air conditioners?

Many models have high SEER ratings, making them energy-efficient options.

8. What is the average lifespan of an inwall air conditioner?

With proper maintenance, they typically last 10 to 15 years.

9. Are inwall air conditioners noisy?

Most modern units operate quietly; however, check the decibel rating before purchase.

10. Can I install an inwall air conditioner in a rental property?

Consult your landlord and review your lease agreement, as modifications may need approval.

Conclusion

Installing an inwall air conditioner can be a rewarding DIY project that enhances the comfort of your home. By following this comprehensive guide, you can ensure a successful installation and enjoy reliable cooling for years to come. Always remember to prioritize safety and consult professionals when needed.
