Introduction

Installing outdoor electric wiring can seem daunting, especially for beginners. However, with the right knowledge and preparation, you can tackle this project confidently. This guide will take you through each step of the installation process, ensuring you have a solid understanding of electrical safety, the tools required, and the installation techniques.

Safety First

Before you begin any electrical project, safety should be your top priority. Here's a checklist to keep you safe:

• Always turn off power at the main circuit breaker before starting work.
• Use insulated tools to prevent electric shock.
• Wear rubber gloves and safety goggles for protection.
• Ensure the wiring is rated for outdoor use to withstand environmental conditions.
• Consider consulting a professional if you're unsure about any part of the installation.

Tools and Materials You Will Need

Gathering the right tools and materials is crucial for a successful installation. Here’s a list of what you'll need:

• Tools:
  • Wire cutters and strippers
  • Screwdrivers (flat and Phillips)
  • Drill with bits
  • Shovel or trenching tool
  • Voltage tester
  • Measuring tape
• Materials:
  • Outdoor-rated electrical cable (such as UF cable)
  • Electrical junction boxes
  • Conduit and fittings (if required)
  • Wire nuts or connectors
  • Grounding rod (if needed)
  • Outdoor-rated light fixtures or outlets

Planning Your Installation

Before you start digging, it’s vital to plan your installation. Consider the following steps:

1. Map Out the Area: Determine where you want to run the wiring. Mark the route clearly.
2. Check Local Codes: Different areas may have specific codes and regulations regarding outdoor electrical work. Consult your local building authority for guidance.
3. Determine Depth: Most underground wiring must be buried at least 24 inches deep, but check local codes for specifics.
4. Plan for Grounding: Proper grounding is essential for safety. Identify where you will install grounding rods.

Digging the Trench

Once your plan is set, it’s time to dig!

• Use a shovel or trenching tool to create a trench following your marked route. Aim for a depth of at least 24 inches.
• Ensure the trench is wide enough to accommodate the conduit if you are using it.
• Remove any rocks or debris that may obstruct the installation.

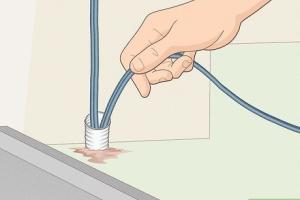

Laying the Wiring

Now that you have your trench, it’s time to lay the wiring:

1. Install Conduit (if required): If local code requires it, lay the conduit in the trench. Connect the pieces with fittings as necessary.
2. Run the Electrical Cable: If you are using UF cable, lay it directly in the trench. If using conduit, feed the cable through it.
3. Leave Extra Length: Leave some extra length at both ends for connections.

Connecting the Power Source

With the wiring in place, you can now connect it to your power source:

1. Turn Off the Power: Ensure the main power is off before proceeding.
2. Access the Breaker Box: Identify a suitable breaker for your new circuit.
3. Make Connections: Strip the ends of your wires and connect them to the appropriate terminals in the breaker box using wire nuts.

Testing Your Wiring

After making all the connections, it’s crucial to test the wiring:

• Turn the power back on at the main circuit breaker.
• Use a voltage tester to check for proper voltage at the outlet or fixture.
• Ensure everything is functioning correctly before covering the trench.

Common Mistakes to Avoid

Here are some common pitfalls to watch out for during your installation:

• Not following local codes, which can lead to safety hazards.
• Inadequate depth of the trench.
• Using the wrong type of cable for outdoor use.
• Failing to properly secure connections, which can lead to shorts or outages.
• Not testing the installation before covering it up.

Case Studies

To illustrate the importance of proper outdoor wiring installation, consider the following case studies:

• Case Study 1: A homeowner attempted to install outdoor lights without proper grounding, resulting in electrical shocks. After consulting a professional, they learned about the importance of grounding rods and safe practices.
• Case Study 2: A couple planned an outdoor entertainment area but neglected to check local codes. They faced fines and had to redo their work after an inspection revealed non-compliance.

Expert Insights

According to electrical experts, one of the most common mistakes made by beginners is underestimating the importance of safety and compliance with local electrical codes. Many recommend consulting an electrician, even for DIY projects, to ensure everything meets safety standards.

FAQs

1. What type of wiring should I use for outdoor installations?
   Use outdoor-rated wiring such as UF (underground feeder) cable.
2. How deep should I bury outdoor electrical wiring?
   Typically, outdoor wiring should be buried at least 24 inches deep.
3. Do I need a permit for outdoor electrical work?
   Yes, check with your local building authority for specific requirements.
4. Can I install outdoor wiring myself?
   Yes, but ensure you follow safety guidelines and local codes.
5. What safety equipment do I need?
   Insulated tools, gloves, and safety goggles are recommended.
6. How can I test my outdoor wiring?
   Use a voltage tester to ensure the wiring is functioning properly.
7. What are the common mistakes in outdoor wiring?
   Not following codes, inadequate depth, and poor connections are common mistakes.
8. Is it necessary to hire a professional?
   While not necessary, consulting a professional can ensure safety and compliance.
9. What should I do if I encounter problems?
   Turn off the power and consult an electrician if you face issues.
10. How can I find local electrical codes?
    Contact your local building authority or check their website for regulations.
