Mastering Parallel Circuits: A Comprehensive Guide to Solving Them Efficiently

• Electrical Engineering
Quick Links:
• Introduction
• Understanding Parallel Circuits
• Key Formulas for Parallel Circuits
• Step-by-Step Guide to Solving Parallel Circuits
• Examples of Solving Parallel Circuits
• Common Mistakes in Parallel Circuit Analysis
• Real-World Case Studies
• Expert Insights on Circuit Analysis
• Conclusion
• FAQs

Introduction

In the world of electronics and electrical engineering, understanding how to solve parallel circuits is essential for both professionals and hobbyists. Parallel circuits are commonly used in various applications, from simple household wiring to complex electronic devices. This guide will provide you with a comprehensive understanding of parallel circuits, including key concepts, formulas, and step-by-step methods to solve them effectively.

Understanding Parallel Circuits

A parallel circuit is a type of electrical circuit where two or more components are connected across the same voltage source. Unlike series circuits, where the current flows through each component sequentially, in parallel circuits, the current can flow through multiple paths simultaneously. This results in various characteristics that are unique to parallel configurations.

Characteristics of Parallel Circuits

• Voltage Consistency: The voltage across each component in a parallel circuit is the same.
• Current Division: The total current entering the parallel circuit is equal to the sum of the currents through each component.
• Resistance: The total resistance of a parallel circuit is always less than the smallest individual resistor in the circuit.

Key Formulas for Parallel Circuits

To solve parallel circuits effectively, it's crucial to understand some key formulas:

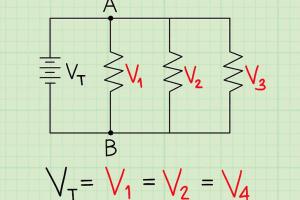

Voltage in Parallel Circuits

The voltage in a parallel circuit can be expressed as:

V_total = V₁ = V₂ = ... = V_n

Current in Parallel Circuits

The total current can be calculated as:

I_total = I₁ + I₂ + ... + I_n

Resistance in Parallel Circuits

The total resistance (R_total) of a parallel circuit can be found using the formula:

1/R_total = 1/R₁ + 1/R₂ + ... + 1/R_n

Step-by-Step Guide to Solving Parallel Circuits

Now that we understand the basics, let's dive into a detailed step-by-step guide on how to solve parallel circuits.

Step 1: Identify the Components

Start by identifying all the components in the parallel circuit. This includes resistors, capacitors, and other elements connected across the same voltage source.

Step 2: Measure or Note the Values

Note down the values of each component, such as resistance (in ohms) or capacitance (in farads), depending on the type of circuit.

Step 3: Calculate Total Resistance

Use the resistance formula to calculate the total resistance of the parallel circuit. This will be critical for further calculations.

Step 4: Determine Total Current

Once you have the total resistance, use Ohm's Law (V = IR) to calculate the total current flowing through the circuit.

Step 5: Calculate Individual Currents

Using the voltage and the resistance of each component, calculate the individual currents flowing through each path of the circuit.

Step 6: Analyze Results

Review your calculations to ensure they align with the expected behavior of parallel circuits. Check for any discrepancies or errors.

Examples of Solving Parallel Circuits

Let’s apply the step-by-step guide to a few examples:

Example 1: Basic Parallel Circuit

Consider a simple parallel circuit with two resistors: R₁ = 4 ohms and R₂ = 6 ohms, connected to a 12V battery.

Solution:

1. Calculate total resistance:

1/R_total = 1/4 + 1/6

1/R_total = 3/12 + 2/12 = 5/12

R_total = 12/5 = 2.4 ohms

2. Calculate total current:

I_total = V/R_total = 12V / 2.4Ω = 5A

3. Calculate individual currents:

I₁ = V/R₁ = 12V / 4Ω = 3A

I₂ = V/R₂ = 12V / 6Ω = 2A

Example 2: Complex Parallel Circuit

Consider a parallel circuit with three resistors: R₁ = 10 ohms, R₂ = 20 ohms, and R₃ = 30 ohms, connected to a 30V battery.

Solution:

1. Calculate total resistance:

1/R_total = 1/10 + 1/20 + 1/30

1/R_total = 6/60 + 3/60 + 2/60 = 11/60

R_total = 60/11 = 5.45 ohms

2. Calculate total current:

I_total = V/R_total = 30V / 5.45Ω = 5.50A

3. Calculate individual currents:

I₁ = V/R₁ = 30V / 10Ω = 3A

I₂ = V/R₂ = 30V / 20Ω = 1.5A

I₃ = V/R₃ = 30V / 30Ω = 1A

Common Mistakes in Parallel Circuit Analysis

When solving parallel circuits, several common mistakes can lead to incorrect results. Here are some to watch out for:

• Confusing voltage in parallel circuits with series circuits.
• Incorrectly applying Ohm’s Law without considering the total resistance.
• Forgetting to convert units (e.g., ohms to kilo-ohms) when necessary.
• Neglecting to sum individual currents correctly.

Real-World Case Studies

Understanding parallel circuits is crucial in various real-world applications. Here are a few case studies:

Case Study 1: Residential Wiring

In residential wiring, outlets are typically wired in parallel. This setup allows multiple devices to be plugged in without affecting one another's performance. If one device fails, others can continue to operate, demonstrating the resilience of parallel configurations.

Case Study 2: Electronics in Consumer Devices

Consumer electronics often use parallel circuits to power different components. For instance, in a computer, the processor, RAM, and hard drive are connected in parallel to ensure they receive the same voltage while allowing independent operation.

Expert Insights on Circuit Analysis

To gain deeper insights into solving parallel circuits, we consulted industry experts:

"Understanding the principles of circuit analysis is essential for anyone working in electronics. Whether you're troubleshooting a device or designing new circuits, mastering parallel configurations is key." - Dr. Emily Carter, Electrical Engineer

Conclusion

Solving parallel circuits may seem challenging at first, but with the right understanding of concepts and formulas, anyone can master it. This comprehensive guide has provided you with the necessary tools and strategies to analyze and solve parallel circuits effectively. Practice with real-world examples, and you will become proficient in no time!

FAQs

• What is a parallel circuit? A parallel circuit is a type of electrical circuit where components are connected across the same voltage source, allowing multiple paths for current.
• How do you calculate total resistance in a parallel circuit? Total resistance can be calculated using the formula: 1/R_total = 1/R₁ + 1/R₂ + ... + 1/R_n.
• What is the voltage across components in a parallel circuit? The voltage across each component in a parallel circuit is equal to the source voltage.
• How does current behave in parallel circuits? The total current in a parallel circuit is the sum of the currents through each parallel branch.
• Can you have a parallel circuit with unequal resistors? Yes, parallel circuits can have resistors of different values, and the total resistance will still be less than the smallest resistor.
• What happens if one component fails in a parallel circuit? If one component fails, the other components continue to function, maintaining the circuit's overall operation.
• What is the significance of Ohm's Law in parallel circuits? Ohm's Law (V = IR) is crucial for calculating voltages, currents, and resistances in parallel circuits.
• How do you troubleshoot a parallel circuit? Check each component for continuity, measure voltages across components, and verify total current flowing through the circuit.
• What tools are needed to solve parallel circuits? Basic tools include a multimeter for measuring voltage and current, as well as an ohmmeter for measuring resistance.
• Are there applications of parallel circuits in everyday life? Yes, parallel circuits are used in household wiring, electronics, and various appliances to ensure reliability and consistent performance.
