Introduction

The Xbox One controller is a staple for gamers worldwide, known for its comfort and reliability. However, like any electronic device, it may require maintenance or repairs over time. Whether you're looking to fix a sticky button, replace a battery pack, or simply clean the internals, knowing how to take apart your Xbox One controller is essential. In this comprehensive guide, we will walk you through the entire process, providing expert tips and insights along the way.

Tools Required

Before you begin disassembling your Xbox One controller, ensure you have the following tools:

• Torx T8 Security Screwdriver
• Flathead Screwdriver
• Plastic Pry Tool
• Soft Cloth or Work Surface
• Anti-Static Wrist Strap (optional but recommended)

Safety Precautions

Taking apart your Xbox One controller can be safe if you follow these precautions:

• Ensure the controller is turned off and disconnected from any power source.
• Work in a clean, well-lit area to avoid losing small parts.
• Use an anti-static wrist strap to prevent static damage to electronic components.

Step-by-Step Guide to Disassembling an Xbox One Controller

Follow these steps carefully to disassemble your Xbox One controller:

Step 1: Remove the Battery Cover

Start by removing the battery cover on the back of the controller. This will expose the battery compartment.

Step 2: Remove the Batteries

Take out the batteries to prevent any power supply during the disassembly process.

Step 3: Unscrew the Back Panel

Using the Torx T8 screwdriver, remove the screws located at the back of the controller. There are a total of five screws:

• Two near the battery compartment
• Two near the grips
• One near the middle of the controller

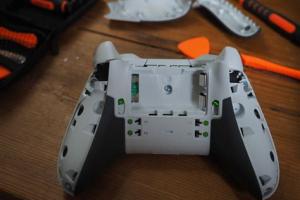

Step 4: Pry Open the Controller

Carefully use the plastic pry tool to separate the front and back panels. Start at a corner and work your way around to avoid damaging any clips.

Step 5: Disconnect Internal Components

Once opened, you will see the internal components. Carefully disconnect the ribbon cables and other connectors. Remember the placement for reassembly.

Step 6: Remove the Circuit Board

Unscrew any screws holding the circuit board in place. Gently lift it out, being cautious of any connected parts.

Step 7: Clean or Replace Components

You can now clean or replace any faulty components. Use a soft cloth to wipe away dust and debris.

Reassembling Your Controller

Reassembling your Xbox One controller is essentially the reverse of disassembly. Follow these steps:

Step 1: Place the Circuit Board Back

Carefully place the circuit board back into the controller housing and secure it with screws.

Step 2: Reconnect Cables

Reconnect all the ribbon cables and connectors that were detached during disassembly.

Step 3: Snap the Panels Together

Align the front and back panels and press them together until you hear a click, indicating that the clips have secured.

Step 4: Replace the Screws

Use the Torx T8 screwdriver to replace all the screws.

Step 5: Insert Batteries and Test

Finally, insert the batteries back into the compartment, replace the battery cover, and test the controller to ensure everything works properly.

Common Issues and Troubleshooting

If your controller isn’t working as expected, here are common issues and how to fix them:

• Sticky Buttons: Clean the buttons with isopropyl alcohol.
• Unresponsive Joystick: Check the joystick connections for dirt or damage.
• Battery Issues: Ensure batteries are correctly placed and functional.

Expert Insights and Tips

To ensure the longevity of your Xbox One controller, consider these expert tips:

• Regularly clean your controller to prevent buildup of dirt and grime.
• Store your controller in a dry place to avoid moisture damage.
• Consider using rechargeable batteries for sustainability and cost-effectiveness.

Case Studies

Many gamers have successfully repaired their Xbox One controllers. For instance, a user reported a 90% cost saving by replacing their controller's thumbstick rather than purchasing a new one. Another case highlighted the importance of cleaning, as a simple wipe down improved performance significantly.

FAQs

By following this comprehensive guide, you can confidently take apart and repair your Xbox One controller, saving you time and money while enhancing your gaming experience.

For more detailed information on Xbox controller repairs, you can visit these resources:

• iFixit - Xbox One Controller Repair Guide
• Official Xbox Controllers Page
• Reddit - Cleaning Your Xbox One Controller
