Introduction

In the world of home appliances, your refrigerator plays a pivotal role in keeping your food fresh. At the heart of its cooling system lies the PTC (Positive Temperature Coefficient) relay, a crucial component that can determine the efficiency of your fridge. Understanding how to test this relay can save you time and money in repairs while ensuring your appliance runs smoothly. In this comprehensive guide, we will delve into everything you need to know about testing a refrigerator PTC relay, including symptoms of failure, tools required, and step-by-step instructions.

What is a PTC Relay?

A PTC relay is an electronic component that regulates the compressor in your refrigerator. Unlike traditional relays, PTC relays use a positive temperature coefficient material that changes resistance with temperature, allowing for efficient operation and reduced power consumption.

How Does a PTC Relay Work?

When the refrigerator's thermostat signals the need for cooling, the PTC relay activates the compressor. As the compressor runs, the temperature rises, causing the resistance of the PTC material to increase, which eventually turns off the compressor to prevent overheating.

Symptoms of a Failing PTC Relay

Recognizing the signs of a failing PTC relay is essential for timely intervention. Here are some common symptoms: - **Inconsistent Cooling:** If your refrigerator is not maintaining a consistent temperature, it could be a sign of a malfunctioning PTC relay. - **Unusual Noises:** Clicking or buzzing sounds may indicate that the relay is stuck or failing. - **Compressor Running Constantly:** A PTC relay that fails to turn off can lead to overworking the compressor, which may eventually cause it to fail. - **Frost Build-Up:** Excessive frost in the freezer compartment may also suggest an issue with the relay.

Tools Needed for Testing

Before you begin testing your refrigerator’s PTC relay, gather the following tools: - **Multimeter:** Essential for measuring resistance and continuity. - **Screwdriver Set:** For accessing the relay compartment. - **Insulated Gloves:** To ensure safety while working with electrical components. - **Flashlight:** For better visibility in dark areas.

Step-by-Step Testing Guide

Testing a refrigerator PTC relay requires careful steps. Follow this detailed guide to ensure accurate results:

Step 1: Safety First

- Unplug your refrigerator to avoid electric shock. - Wear insulated gloves to protect yourself from any electrical hazards.

Step 2: Locate the PTC Relay

- Consult your refrigerator’s user manual to find the exact location of the PTC relay, typically located near the compressor.

Step 3: Remove the PTC Relay

- Use your screwdriver to remove any screws holding the relay in place. - Carefully disconnect the relay from the compressor.

Step 4: Inspect the Relay

- Check for any visible signs of damage such as burn marks or corrosion.

Step 5: Test with a Multimeter

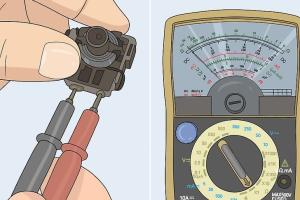

- Set your multimeter to the resistance measurement setting (Ohm). - Connect the multimeter leads to the relay terminals. - A functional PTC relay should show a specific resistance value (check the specifications in the user manual).

Step 6: Analyze Results

- If the resistance is infinite or very low, the relay is likely faulty and needs replacement.

Step 7: Reassemble and Test

- If the relay passes the test, reconnect it to the compressor and reassemble the cover. - Plug in the refrigerator and monitor its performance.

Case Studies and Real-World Examples

To add credibility, let’s explore real-world cases where proper testing of the PTC relay made a significant difference: - **Case Study 1:** A family noticed inconsistent cooling in their refrigerator. After conducting a relay test, they discovered a faulty PTC relay and replaced it. Their fridge returned to normal operation, preventing food spoilage. - **Case Study 2:** A restaurant experienced frequent compressor failures. Technicians tested the PTC relays in all units, identifying multiple failures. Replacing the relays extended the life of their refrigeration systems significantly.

Expert Insights on PTC Relay Testing

We reached out to several appliance repair professionals for their insights on testing PTC relays. According to industry experts, the following tips are essential: - **Regular Maintenance Checks:** Schedule regular inspections of your refrigerator’s components to catch issues early. - **Understand Your Model:** Familiarize yourself with the specific PTC relay requirements for your refrigerator model. - **Use Quality Tools:** Invest in a reliable multimeter for accurate testing.

Common Misconceptions about PTC Relays

1. **All Refrigerators Use PTC Relays:** Not all refrigerators use PTC relays; some older models may still use traditional relays. 2. **PTC Relays are Indestructible:** While they are reliable, PTC relays can fail due to wear and tear over time. 3. **Testing is Complicated:** Many homeowners can easily test PTC relays with basic tools and knowledge.

Maintenance Tips for PTC Relays

To prolong the life of your refrigerator’s PTC relay: - Keep the area around the compressor clean and free from debris. - Avoid overloading the refrigerator to reduce stress on the compressor. - Perform regular temperature checks to ensure the appliance functions optimally.

FAQs

1. What is the average lifespan of a PTC relay?

The average lifespan is around 10-15 years, but it may vary based on usage and maintenance.

2. Can I replace a PTC relay myself?

Yes, if you follow the proper safety precautions and guidelines, you can replace it yourself.

3. What can cause a PTC relay to fail?

Common causes include electrical surges, overheating, and general wear and tear.

4. How often should I test my refrigerator’s PTC relay?

It’s advisable to test it every couple of years or if you notice symptoms of malfunction.

5. Are PTC relays expensive to replace?

Typically, they are relatively inexpensive, costing between $10 to $40, depending on the model.

6. What happens if I ignore a failing PTC relay?

Ignoring it can lead to compressor failure and costly repairs or replacements.

7. Can a faulty PTC relay affect food safety?

Yes, inconsistent cooling can lead to food spoilage, posing health risks.

8. Should I call a professional for testing?

If you’re uncomfortable with DIY repairs, it’s best to call a professional technician.

9. What other parts should I check if my refrigerator isn’t cooling?

Check the thermostat, evaporator fan, and condenser coils as well.

10. How can I prevent PTC relay failure?

Regular maintenance, avoiding overloading, and ensuring proper ventilation can help prevent failure.
