DIY Guide: How to Build a Speaker Box for Optimal Sound Quality

DIY Audio Projects
1. Introduction
2. Understanding Speaker Boxes
3. Materials and Tools Needed
4. Designing Your Speaker Box
5. Step-by-Step Guide to Building Your Speaker Box
6. Testing Your Speaker Box
7. Common Issues and Troubleshooting
8. Expert Insights and Tips
9. Case Studies and Real-World Examples
10. FAQs

1. Introduction

Building your own speaker box can be a rewarding and educational experience for audio enthusiasts and DIY lovers. Not only does it allow you to customize the sound quality to your liking, but it also enhances your understanding of acoustics and audio engineering. In this comprehensive guide, we will delve into the ins and outs of building a speaker box from scratch, ensuring you have all the knowledge and tools needed to create a product that not only sounds great but also looks fantastic.

2. Understanding Speaker Boxes

A speaker box, or enclosure, plays a crucial role in how sound is produced and perceived. The design and materials used in constructing the enclosure can significantly impact sound quality. There are various types of speaker boxes, including sealed and ported designs, each offering unique characteristics. Understanding these differences is essential before embarking on your building journey.

Types of Speaker Boxes

Sealed Enclosures: Offer tight, accurate bass response.
Ported Enclosures: Provide deeper bass at the expense of some accuracy.
Bandpass Enclosures: Mix elements of both sealed and ported designs; ideal for specific sound applications.

3. Materials and Tools Needed

Before you start building, gather all necessary materials and tools. Here’s a comprehensive list:

Materials

Wood (MDF or plywood)
Wood glue
Wood screws
Acoustic foam (optional)
Speaker drivers
Wiring and connectors
Finish (paint or veneer)

Tools

Table saw or circular saw
Drill and drill bits
Screwdriver
Measuring tape
Clamps
Router (optional)

4. Designing Your Speaker Box

Proper design is paramount to building an effective speaker box. Start by determining the dimensions based on the size of your speakers and desired sound characteristics. Use software like SketchUp or free online calculators to help with your design. Consider the following:

The volume of the enclosure.
The placement of the speakers.
Port size and placement if building a ported box.

5. Step-by-Step Guide to Building Your Speaker Box

Now that you have your materials, tools, and design, it’s time to start building. Follow these steps:

Step 1: Cut the Wood

Using your saw, cut the pieces of wood according to your design dimensions. Make sure to measure twice and cut once for accuracy.

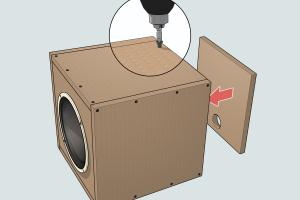

Step 2: Assemble the Box

Start by assembling the box using wood glue and screws. Clamp the pieces together and allow the glue to set.

Step 3: Install the Speaker Drivers

Cut holes for the speaker drivers, ensuring a snug fit. Install the drivers and secure them with screws.

Step 4: Add Ports (if applicable)

If you're building a ported box, cut the necessary holes for the ports, and install them according to your design specifications.

Step 5: Finish the Box

Apply your chosen finish, whether paint or veneer, to enhance aesthetics and protect the wood.

6. Testing Your Speaker Box

Once your speaker box is assembled, it’s vital to test its sound quality. Connect it to an audio source and play various genres of music. Listen for clarity, distortion, and overall sound quality.

7. Common Issues and Troubleshooting

During the building process, you may encounter several challenges. Here are common issues and how to resolve them:

Sound Distortion: Check for air leaks and ensure the drivers are properly secured.
Poor Bass Response: Reassess the enclosure design and consider adding acoustic foam.

8. Expert Insights and Tips

To gain deeper insights, we consulted audio engineers and experienced builders. Here are their top tips:

Always use high-quality materials to prevent future problems.
Experiment with different designs to find what works best for your preferences.

9. Case Studies and Real-World Examples

Many successful audio projects have emerged from DIY speaker box builds. For instance, the “Bass Reflex Speaker” project has gained popularity among audiophiles for its impressive sound quality. Additionally, community forums like AudioKarma showcase various DIY projects with user experiences.

10. FAQs

1. What type of wood is best for building a speaker box?

MDF is recommended due to its density, which helps reduce resonance.

2. How do I calculate the volume for my speaker box?

Use the formula for volume (length x width x height) and subtract the volume of the drivers.

3. Can I use recycled materials for my speaker box?

Yes, as long as they are structurally sound and free from damage.

4. What tools do I need to build a speaker box?

A saw, drill, screwdriver, measuring tape, and clamps are essential.

5. How much does it cost to build a speaker box?

Costs vary but typically range from $50 to $200 depending on materials and components.

6. Will building my own speaker box void the warranty on my driver?

Check with the manufacturer; some warranties may be affected.

7. How do I choose the right speaker drivers?

Consider the power rating, sensitivity, and frequency range of the drivers.

8. Can I paint my speaker box?

Yes, painting is a great way to customize your speaker box; just ensure the paint doesn't affect sound quality.

9. How do I prevent vibrations in my speaker box?

Use internal bracing and dampening materials like acoustic foam.

10. Is it difficult to build a speaker box?

It can be challenging but is manageable with the right tools and guidance. Start with simpler designs as a beginner.
