Introduction
Electrical circuits are foundational to modern technology, encompassing everything from household appliances to complex industrial machinery. Understanding how to calculate total resistance within these circuits is crucial for anyone studying or working in electronics. This article provides a thorough exploration of resistance in circuits, complete with practical examples, expert insights, and a step-by-step guide to help you master this essential skill.
Understanding Resistance in Circuits
Resistance is a measure of the opposition to current flow in an electrical circuit. It is measured in ohms (Ω) and plays a critical role in determining how electricity flows through components. The relationship between voltage (V), current (I), and resistance (R) is encapsulated in Ohm's Law, which states:
V = I × R
This fundamental law aids in calculating the resistance when voltage and current are known, forming the basis for more complex circuit analyses.
Types of Electrical Circuits
There are primarily two types of circuits where resistance plays a vital role:
- Series Circuits: In a series circuit, components are connected end-to-end, resulting in a single path for current flow. The total resistance (Rtotal) is simply the sum of individual resistances.
- Parallel Circuits: In parallel circuits, components are connected across common points, providing multiple paths for current. The total resistance is calculated using the reciprocal formula.
Calculating Resistance in Series Circuits
In series circuits, the total resistance is straightforward to calculate. The formula is:
Rtotal = R1 + R2 + R3 + ... + Rn
Example: If you have three resistors in series: R1 = 5Ω, R2 = 10Ω, and R3 = 15Ω, the total resistance would be:
Rtotal = 5 + 10 + 15 = 30Ω

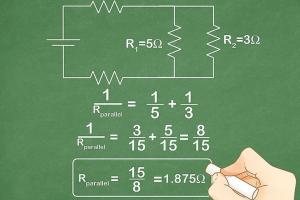

Calculating Resistance in Parallel Circuits
For parallel circuits, the total resistance is calculated differently. The formula is:
1/Rtotal = 1/R1 + 1/R2 + 1/R3 + ... + 1/Rn
Example: For resistors R1 = 5Ω, R2 = 10Ω, and R3 = 15Ω in parallel, the total resistance would be:
1/Rtotal = 1/5 + 1/10 + 1/15 = 0.2 + 0.1 + 0.0667 = 0.3667
Therefore, Rtotal = 1/0.3667 ≈ 2.73Ω
Calculating Resistance in Combination Circuits
Combination circuits feature both series and parallel elements, requiring a step-by-step approach. Break down the circuit into simpler parts, calculate the total resistance for each part, and then combine the results.
Example: Consider a circuit with two resistors in series (R1 = 10Ω and R2 = 20Ω) connected in parallel with a third resistor (R3 = 30Ω):
1. Calculate series resistance: Rseries = R1 + R2 = 10 + 20 = 30Ω 2. Calculate total resistance: 1/Rtotal = 1/Rseries + 1/R3 = 1/30 + 1/30 = 2/30 = 1/15 Rtotal = 15Ω
Case Studies and Practical Applications
Understanding resistance calculation is not just academic; it has real-world implications. For instance, in designing electrical systems for homes, knowing how to calculate total resistance helps ensure that circuits operate safely and efficiently.
A famous case involves electrical engineers redesigning circuit boards for smartphones. They analyzed resistance to optimize battery life without sacrificing performance, demonstrating how critical these calculations are in technology today.
Expert Insights on Resistance Calculation
Industry experts emphasize the importance of accuracy in resistance calculations. Minor errors can lead to significant performance issues in electrical devices. They recommend using digital multimeters for real-time resistance measurement as it prevents common manual calculation errors.
Common Mistakes in Resistance Calculation
Here are some pitfalls to avoid when calculating resistance:
- Not accounting for all resistors in a series or parallel setup.
- Confusing the formulas for series and parallel circuits.
- Neglecting the influence of temperature on resistance.
Conclusion
Mastering the calculation of total resistance in electrical circuits is essential for anyone involved in electronics. Whether you're a student or a professional, understanding how to approach series, parallel, and combination circuits will enhance your circuit design and troubleshooting skills. As technology advances, the ability to accurately calculate resistance remains a fundamental aspect of electrical engineering.
FAQs
1. What is total resistance?
Total resistance is the overall opposition to current flow in an electrical circuit, measured in ohms (Ω).
2. How do I calculate total resistance in a series circuit?
Add the resistance values of all components: Rtotal = R1 + R2 + ... + Rn.
3. How do I calculate total resistance in a parallel circuit?
Use the reciprocal formula: 1/Rtotal = 1/R1 + 1/R2 + ... + 1/Rn.
4. What are combination circuits?
Combination circuits contain both series and parallel components, requiring individual calculation of sections before combining results.
5. Why is calculating resistance important?
It ensures that circuits operate safely and efficiently, preventing overload and potential failures in electronic devices.
6. Can temperature affect resistance?
Yes, resistance can change with temperature due to the properties of materials used in resistors.
7. What tools can I use to measure resistance?
A digital multimeter is a reliable tool for measuring resistance in real-time.
8. What are some common mistakes when calculating resistance?
Common mistakes include misapplying series/parallel formulas and forgetting to account for all resistances in a circuit.
9. How can I improve my resistance calculation skills?
Practice by solving various circuit problems and using simulation software to visualize different configurations.
10. Where can I learn more about electrical circuits?
Consider online courses, textbooks, and educational websites dedicated to electronics and electrical engineering.
