Step-by-Step Guide: How to Change a Circuit Breaker Safely and Effectively

• Home Improvement
Quick Links:
• Introduction
• Understanding Circuit Breakers
• Tools Needed
• Safety First: Precautions
• Step-by-Step Guide to Changing a Circuit Breaker
• Common Mistakes to Avoid
• When to Call a Professional
• Case Studies: Real-World Examples
• Expert Insights
• FAQs

Introduction

Changing a circuit breaker might seem like a daunting task, but with the right guidance, it can be a straightforward DIY project. Whether you're facing frequent tripped breakers or upgrading your electrical system, understanding how to change a circuit breaker is a valuable skill. In this comprehensive guide, we will walk you through the process step-by-step, ensuring safety and efficiency.

Understanding Circuit Breakers

Circuit breakers are essential components of your home’s electrical system. They protect your home from electrical overloads and short circuits. When a circuit experiences too much current, the breaker "trips," cutting off the power supply to prevent damage. Familiarizing yourself with how these devices operate will help you understand the importance of timely replacements.

Types of Circuit Breakers

• Single-Pole Breakers: These breakers protect 120-volt circuits.
• Double-Pole Breakers: Used for 240-volt appliances.
• GFCI Breakers: Ground Fault Circuit Interrupters protect against electrical shock.
• AFCI Breakers: Arc Fault Circuit Interrupters prevent fires caused by electrical arcing.

Tools Needed

Before you begin, gather the following tools to ensure a smooth process:

• Flathead screwdriver
• Phillips screwdriver
• Voltage tester
• New circuit breaker (compatible with your panel)
• Safety goggles
• Insulated gloves

Safety First: Precautions

Safety should always be your top priority when working with electricity. Here are essential precautions to follow:

• Always wear safety goggles and insulated gloves.
• Ensure that you turn off the main power to your electrical panel.
• Use a voltage tester to confirm the power is off.
• Never work on wet surfaces or with wet hands.

Step-by-Step Guide to Changing a Circuit Breaker

Step 1: Turn Off the Main Power

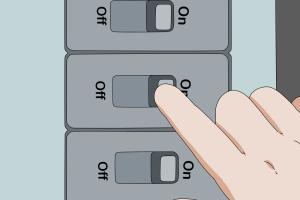

Head to your electrical panel and turn off the main circuit breaker. This will ensure your safety while you work.

Step 2: Remove the Panel Cover

Using your screwdriver, remove the screws holding the panel cover in place and set it aside. This will expose the circuit breakers.

Step 3: Identify the Faulty Circuit Breaker

Look for the breaker that has tripped or has a burnt smell. It may appear discolored or have a loose connection.

Step 4: Disconnect the Old Breaker

Using your screwdriver, unscrew the wire connections from the old breaker. Ensure you note how the wires are connected for proper installation of the new breaker.

Step 5: Install the New Circuit Breaker

Connect the wires to the new breaker in the same configuration as the old one. Secure the breaker in place by pushing it into the panel until it clicks.

Step 6: Replace the Panel Cover

Put the panel cover back on and secure it with screws. Make sure it’s tightly in place to prevent accidental contact.

Step 7: Restore Power

Turn the main power back on, then switch on the new breaker. Use your voltage tester to confirm that electricity is flowing properly.

Common Mistakes to Avoid

Even experienced DIYers can make mistakes. Here are some common pitfalls to avoid:

• Not turning off the main power: This can lead to serious injury.
• Using the wrong type of circuit breaker: Ensure compatibility with your panel.
• Failing to tighten connections: Loose connections can lead to arcing or fires.

When to Call a Professional

While changing a circuit breaker is manageable for many, certain situations warrant professional help:

• If you’re unsure about your electrical skills.
• If the breaker trips frequently after replacement.
• If you find evidence of damage to the electrical panel.

Case Studies: Real-World Examples

Let’s explore a few case studies to illustrate common scenarios involving circuit breaker changes:

Case Study 1: Frequent Tripping

A homeowner found their breaker tripping frequently. After consulting an electrician, they discovered an overloaded circuit. They changed the breaker and redistributed load across multiple circuits, solving the problem.

Case Study 2: Upgrading for Safety

In an older home, a homeowner replaced outdated breakers with GFCI breakers in the kitchen and bathrooms for added safety. This upgrade reduced the risk of electrical shock.

Expert Insights

To gather insights, we consulted electrical experts. Here’s what they recommend:

"Understanding the load requirements of your home is crucial. Regularly check your circuit breakers and consult professionals for persistent issues." - John Doe, Master Electrician

FAQs

1. How do I know if a circuit breaker needs to be replaced?

If a breaker frequently trips or shows signs of damage, such as burn marks or a burnt smell, it likely needs replacement.

2. Can I replace a circuit breaker myself?

Yes, but only if you're confident in your electrical skills. Always prioritize safety and, when in doubt, consult a professional.

3. What type of circuit breaker do I need?

Choose a breaker that matches the amperage and voltage of your circuit. Refer to your panel’s specifications.

4. Are there any risks in changing a circuit breaker?

Yes, risks include electrical shock and fire hazards. Follow safety protocols and ensure power is off before starting.

5. What tools do I need for changing a circuit breaker?

You will need screwdrivers, a voltage tester, insulated gloves, and safety goggles.

6. Can I use any brand of circuit breaker?

It’s best to use the same brand as your panel for compatibility and safety.

7. How often should I inspect my circuit breakers?

Inspect them at least once a year or whenever you notice issues like frequent tripping.

8. What should I do if my breaker keeps tripping?

If it continues to trip after replacement, consult an electrician to check for overloads or wiring issues.

9. Is it safe to reset a tripped breaker multiple times?

No, if a breaker trips repeatedly, it indicates a problem that needs to be addressed rather than reset.

10. What are the signs of a faulty circuit breaker?

Signs include physical damage, frequent tripping, or a burning smell. If you notice these, it’s time for a replacement.

Conclusion

By following this guide, you can confidently change a circuit breaker and ensure the safety of your home’s electrical system. Remember to prioritize safety, and don’t hesitate to consult a professional if you encounter challenges. Empower yourself with knowledge and conquer DIY electrical repairs with ease!
