Mastering the Art of Network Cable Creation: A Step-by-Step Guide

Mastering the Art of Network Cable Creation: A Step-by-Step Guide

Introduction

In the age of digital connectivity, having a reliable network is paramount for both personal and professional use. Understanding how to create your own network cable can save you time and money, providing a tailored solution to your networking needs. In this comprehensive guide, we will delve into the intricacies of network cables, the tools required, and the step-by-step process of making your own network cable.

Tools Needed

Before diving into the process of making a network cable, it's essential to gather the right tools. Here’s a list of equipment you will need:

Understanding Network Cables

Network cables are essential for transmitting data between devices. They work based on electrical signals that travel through copper wires. Understanding the components and functionality of network cables is critical for anyone looking to create their own.

What is an Ethernet Cable?

An Ethernet cable is a type of network cable used to connect devices to a local area network (LAN). It comes in various categories, each supporting different speeds and bandwidths.

Types of Network Cables

There are several types of network cables, each with unique purposes and specifications:

Step-by-Step Guide to Making a Network Cable

Step 1: Cut the Cable to Length

Start by determining the length of cable you need. Use the scissors to cut the Ethernet cable to the desired length, leaving a little extra to work with.

Step 2: Strip the Cable Ends

Using the cable stripper, remove about 1 inch of the outer insulation from both ends of the cable, exposing the twisted pairs of wires inside.

Step 3: Untwist and Organize the Wires

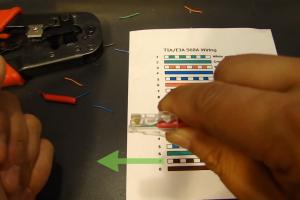

Carefully untwist the wire pairs and arrange them according to the T568A or T568B wiring standard. Most installations use T568B:

Step 4: Trim the Wires

Once the wires are arranged in the correct order, trim them to ensure they are all the same length, approximately 0.5 inches from the outer insulation.

Step 5: Insert Wires into the RJ45 Connector

Insert the wires into the RJ45 connector, ensuring they go all the way to the end. The connector should grip the wires securely.

Step 6: Crimp the Connector

Using the cable crimper, firmly press down on the connector to secure it to the cable. Ensure that the crimping is done properly to avoid connection issues.

Step 7: Test the Cable

Use a network tester to ensure that the cable is functioning correctly. This step is crucial to confirm that all connections are operational.

Case Studies and Examples

Let’s explore a few real-world scenarios where making your own network cable proved advantageous:

Case Study 1: Home Office Setup

In a recent survey, a home office worker reported significant improvements in network speed after replacing pre-made cables with custom-made cables tailored to their specific layout.

Case Study 2: Small Business Networking

A small business owner saved over 30% on networking costs by creating their own cables using bulk Ethernet rolls. This enabled them to customize lengths and avoid wasted materials.

Expert Insights

We reached out to networking experts to gather their insights on DIY network cable creation:

Expert Opinion 1: Chris, Networking Engineer

"One of the main advantages of creating your own network cables is the ability to tailor them to your specific needs. This can significantly enhance network performance."

Expert Opinion 2: Linda, IT Consultant

"Investing in quality materials, such as high-grade Ethernet cables and connectors, is essential for ensuring long-term reliability."

Troubleshooting Common Issues

Even experienced users may encounter issues when making network cables. Here are common problems and solutions:

FAQs

1. What type of cable should I use?

Use Cat5e or Cat6 cables for most home and office networking needs.

2. Can I use a regular cable stripper?

Yes, but a specialized cable stripper provides more control and reduces the risk of damaging the wires.

3. How do I know which wiring standard to use?

T568B is the most commonly used standard, but T568A is also valid. Ensure consistency across your network.

4. What if my cable doesn’t work?

Check the wiring order and ensure all connections are secure. Test with a network tester if available.

5. Can I make crossover cables?

Yes, crossover cables are made by connecting the transmit pairs at one end to the receive pairs at the other end.

6. How long can my network cable be?

The maximum length for Ethernet cables is typically 100 meters (328 feet) for reliable connections.

7. Is it worth making my own cables?

Yes, making your own cables can save money and allow for customization to fit your specific needs.

8. What tools do I need to make a network cable?

You will need an Ethernet cable, RJ45 connectors, a cable crimper, and a cable stripper.

9. Can I use any Ethernet cable for any device?

Generally, yes. However, ensure that the cable is compatible with the network speed and type required by your device.

10. How can I verify my cable is working?

Use a network tester to check for continuity and proper wiring.

";
