Mastering the 3-4-5 Rule: Ensure Perfectly Square Corners Every Time

Introduction to the 3-4-5 Rule
Understanding Squareness in Construction
Step-by-Step Guide to Using the 3-4-5 Rule
Real-World Applications of the 3-4-5 Rule
Common Mistakes to Avoid
Expert Insights and Tips
Case Studies and Examples
FAQs

Introduction to the 3-4-5 Rule

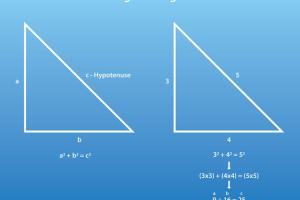

The 3-4-5 rule is a fundamental principle in construction and carpentry that ensures corners are square. This simple yet powerful technique employs the Pythagorean theorem, which states that in a right-angled triangle, the square of the hypotenuse is equal to the sum of the squares of the other two sides. By measuring distances of 3 units and 4 units from a corner and checking that the diagonal distance is exactly 5 units, you can verify that your corner is square.

Understanding Squareness in Construction

Squareness is crucial in many construction projects, from framing a house to laying tile. A square corner ensures that all other measurements and angles are correct, which is vital for structural integrity and aesthetic appeal. If a corner is not square, it can lead to a cascade of problems, including uneven walls, misaligned doors, and poor fitting of fixtures.

Step-by-Step Guide to Using the 3-4-5 Rule

Materials Needed

Measuring tape
Chalk line or string
Square tool or framing square (optional)
Pencil or marker

Steps to Follow

Identify the Corner: Locate the corner you wish to square.
Measure 3 Feet: From the corner along one wall, measure and mark a point at 3 feet.
Measure 4 Feet: From the same corner along the adjacent wall, measure and mark a point at 4 feet.
Measure the Diagonal: Use your measuring tape to measure the distance between the two marks. This distance should equal 5 feet.
Adjust if Necessary: If the diagonal measurement is not 5 feet, adjust your corner until it is.

Real-World Applications of the 3-4-5 Rule

The 3-4-5 rule is not just a theoretical concept; it has practical applications in various fields:

Framing: Ensuring square corners in wooden frames for buildings.
Paving: Achieving square corners in brick or stone paving.
Flooring: Aligning tiles or planks to ensure a neat finish.

Common Mistakes to Avoid

Here are some common pitfalls when applying the 3-4-5 rule:

Not using accurate measurements: Ensure your measuring tape is clear and not stretched.
Forgetting to double-check: Always verify your diagonal measurement before proceeding.
Ignoring material expansion: Consider the material used as it may expand or contract over time.

Expert Insights and Tips

Experts recommend the following tips to enhance your accuracy using the 3-4-5 rule:

Use a reliable measuring tape that is easy to read.
If working alone, use a chalk line to mark longer distances accurately.
Practice the technique on smaller projects before tackling larger constructions.

Case Studies and Examples

To illustrate the importance of the 3-4-5 rule, we can look at several successful projects:

Case Study 1: Residential Home Framing

A local contractor used the 3-4-5 rule to frame a new home. They reported a significant reduction in rework due to misaligned walls, saving both time and money.

Case Study 2: Outdoor Deck Construction

A homeowner used the 3-4-5 rule to ensure their new deck was perfectly square, resulting in a seamless installation of railings and furniture.

FAQs

1. What is the 3-4-5 rule?

The 3-4-5 rule is a method for verifying that corners are square by measuring distances of 3 feet and 4 feet from a corner and ensuring the diagonal measures 5 feet.

2. Can I use the 3-4-5 rule for larger projects?

Yes, the 3-4-5 rule can be applied to any size project. For larger areas, use longer measurements (e.g., 30-40-50) to maintain accuracy.

3. What tools do I need for the 3-4-5 rule?

All you need is a measuring tape, chalk line, and a pencil or marker for marking your measurements.

4. What if my measurements don’t add up?

If the diagonal measurement does not equal the expected value, adjust your corner until it does. This may involve moving one of the walls slightly.

5. Is the 3-4-5 rule applicable in other fields?

Yes, it is also used in landscaping, tile laying, and other DIY projects where accurate angles are crucial.

6. How can I ensure accuracy in my measurements?

Always double-check your measurements, use a reliable measuring tape, and consider having a helper when measuring long distances.

7. Does the 3-4-5 rule work with curved surfaces?

No, the 3-4-5 rule is designed for straight edges and right angles. For curved surfaces, other methods must be used.

8. What’s the origin of the 3-4-5 rule?

The rule is derived from the Pythagorean theorem, which has been used since ancient times in various construction methods.

9. Can I use this method for a circular layout?

While the 3-4-5 rule is not applicable for circular layouts, you can use it to square off the corners of structures that will connect to circular areas.

10. Are there alternatives to the 3-4-5 rule?

Yes, there are other methods such as using a framing square or laser level, but the 3-4-5 rule is one of the simplest and most effective.

For further reading and resources, you can explore Family Handyman for practical applications of the 3-4-5 rule or HGTV for home improvement tips.
