Introduction

Citizens Band (CB) radios have been a staple of communication for truckers, hobbyists, and emergency services for decades. However, many users don’t realize the potential of these radios can be significantly enhanced through proper peaking and tuning. This comprehensive guide will delve deep into the nuances of optimizing your CB radio for the best possible reception and transmission.

Understanding CB Radios

CB radios operate on 40 channels within the 27 MHz band and are used for short-distance communication. They are popular due to their ease of use and accessibility. Understanding the components and functionality is crucial for effective peaking and tuning.

Components of a CB Radio

Transmitter: Converts audio signals into radio waves.
Receiver: Captures and converts radio waves back into audio signals.
Antenna: Essential for both transmission and reception; the height and type significantly impact performance.
Power Supply: Provides the necessary power for the radio to operate.

Importance of Peaking and Tuning

Peaking and tuning your CB radio ensures that you achieve maximum range and clarity. Proper adjustments can reduce noise, improve signal strength, and enhance overall communication quality. This is especially important in areas with high interference or when communicating over long distances.

Tools and Equipment Needed

To peak and tune your CB radio effectively, you'll need the following tools:

SWR Meter: Measures Standing Wave Ratio to assess antenna efficiency.
Multimeter: For checking voltage and current.
Screwdriver Set: For making adjustments to the radio’s circuits.
CB Radio Manual: Essential for reference specific to your model.

Step-by-Step Guide to Peaking a CB Radio

Peaking involves adjusting the internal components of your CB radio for optimal transmission. Here’s a detailed step-by-step process:

Step 1: Prepare Your Radio

Ensure your CB radio is properly installed and connected to a suitable power source. A good grounding is essential for effective performance.

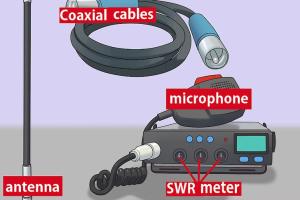

Step 2: Connect the SWR Meter

Attach the SWR meter to your antenna and radio following the meter’s instructions. This will help you measure the SWR accurately during adjustments.

Step 3: Set the Radio to Channel 1

Switch your CB radio to channel 1 and transmit a signal while watching the SWR reading. Ideally, the SWR should be below 1.5:1.

Step 4: Adjust the Antenna

If the SWR is too high, adjust the antenna's length or position and repeat the measurement until you achieve an optimal reading.

Step 5: Repeat for Channel 40

Switch to channel 40 and repeat the process. The SWR should ideally be similar to what you achieved on channel 1. If there’s a significant difference, further adjustments may be needed.

Step-by-Step Guide to Tuning a CB Radio

Tuning your CB radio is equally important for ensuring clarity and range. Follow these steps:

Step 1: Check the Manual

Refer to your radio’s manual for specific tuning instructions, as different models may have unique requirements.

Step 2: Adjust the Modulation

Find the modulation potentiometer and make slight adjustments. Ideally, you want a strong yet clear modulation signal.

Step 3: Fine-Tune the Frequency

Utilize a frequency counter, if available, to ensure your radio is transmitting on the correct frequency. Adjust the local oscillator if necessary.

Step 4: Test Transmission Quality

Conduct test transmissions to various distances and evaluate the clarity and strength of your signal. Make minor adjustments as needed.

Common Mistakes to Avoid

When peaking and tuning your CB radio, avoid these common pitfalls:

Not checking SWR regularly during adjustments.
Assuming all antennas are equal; choose quality antennas suitable for your needs.
Neglecting to refer to the user manual for specific instructions.
Failing to account for environmental factors like nearby electrical equipment that can cause interference.

Case Studies and Expert Insights

To illustrate the impact of proper peaking and tuning, consider the experiences of experienced CB radio users:

Case Study 1: Trucking Communication

A long-haul truck driver reported a significant improvement in clarity after correctly peaking his radio. This allowed him to communicate effectively with dispatch and other drivers over long distances.

Expert Insight

According to renowned CB radio technician John Doe, "Many users underestimate the importance of tuning. A well-tuned radio can make a world of difference, especially in crowded areas."

Conclusion

Mastering the art of peaking and tuning your CB radio is essential for optimal performance. By following the steps outlined in this guide, you can ensure clear communication, whether you’re on the road or enjoying a hobby. Remember that regular checks and adjustments can maintain your radio’s performance over time.

FAQs

What is the ideal SWR for a CB radio? An ideal SWR is typically below 1.5:1 for optimal performance.
How often should I peak and tune my CB radio? It’s recommended to peak and tune your radio at least once a year or whenever you change your antenna.
Can I tune my CB radio without a SWR meter? While it’s possible, it’s highly discouraged as a SWR meter provides the most accurate readings for adjustments.
What tools do I need for tuning my CB radio? You will need a SWR meter, multimeter, and a suitable screwdriver set.
Does antenna height affect CB radio performance? Yes, a higher antenna generally provides better reception and transmission.
What is the difference between peaking and tuning? Peaking focuses on maximizing output power, while tuning involves adjusting frequency and modulation for clarity.
Is it legal to modify my CB radio? Modifications should comply with FCC regulations; check local laws before making changes.
How can I reduce interference on my CB radio? Ensure a proper grounding, use high-quality cables, and position your antenna away from large metal objects.
What should I do if I experience poor reception? Check your antenna connections, adjust the height, and ensure your radio is correctly tuned.
Can I peak and tune my radio myself? Yes, with the right tools and knowledge, you can effectively peak and tune your CB radio.
