Mastering Wire Stripping and Splicing: A Comprehensive Guide to Wire Caps, Butt Splices, and Soldering Techniques

• Electrical
Quick Links:
• Introduction
• Essential Tools and Materials
• Wire Stripping Techniques
• Wire Splicing Methods
• Using Wire Caps
• Using Butt Splices
• Soldering Wires
• Safety Tips
• Real-World Examples and Case Studies
• Conclusion
• FAQs

Introduction

Understanding how to strip and splice wire is an essential skill for anyone working with electrical systems, whether in a professional capacity or as a DIY enthusiast. This guide will provide a detailed overview of the techniques involved in wire stripping and splicing, focusing on three primary methods: wire caps, butt splices, and soldering.

Essential Tools and Materials

Before diving into the techniques, it’s crucial to gather the right tools and materials. Here’s what you’ll need:

• Wire Strippers
• Wire Cutters
• Butt Connectors
• Wire Caps
• Soldering Iron
• Solder
• Heat Shrink Tubing
• Electrical Tape
• Multimeter
• Safety Gear (gloves, goggles)

Wire Stripping Techniques

Stripping wire is the process of removing the insulation from the ends of electrical wires to prepare them for connection. Here’s a step-by-step guide:

Step 1: Measure Wire Length

Determine how much wire you need to strip. A good rule of thumb is to strip about half an inch (1.27 cm) for most connections.

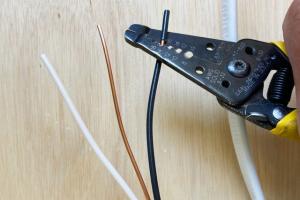

Step 2: Use Wire Strippers

Take your wire strippers and select the appropriate gauge setting for the wire you are working with. Place the wire into the stripper and squeeze the handles to cut through the insulation without damaging the copper wire inside.

Step 3: Remove Insulation

Pull the handles apart to remove the insulation, exposing the bare wire. Repeat this process for the other end if needed.

Wire Splicing Methods

Now that you have your wires stripped, it’s time to splice them together. Let’s explore three common methods: wire caps, butt splices, and soldering.

Using Wire Caps

Wire caps are a quick and easy way to splice wires together. Follow these steps:

Step 1: Align the Wires

Hold the two stripped wire ends next to each other, ensuring they are aligned.

Step 2: Insert into Cap

Place the aligned wires into a wire cap and twist the cap onto the wires until secure.

Step 3: Test Connection

Use a multimeter to check the connection for continuity to ensure a proper splice.

Using Butt Splices

Butt splices provide a strong connection for two wires. Here’s how to use them:

Step 1: Insert Wires into Butt Connector

Place the stripped ends of the wires into the butt connector, ensuring they are fully inserted.

Step 2: Crimp the Connector

Use crimping tools to secure the wires in place. Ensure the connection is tight to prevent any electrical issues.

Step 3: Insulate the Connection

Optionally, cover the butt splice with heat shrink tubing or electrical tape for added insulation and protection.

Soldering Wires

Soldering creates a solid and durable electrical connection. Here’s how to do it correctly:

Step 1: Twist Wires Together

Twist the stripped ends of the wires together in a clockwise direction for a secure connection.

Step 2: Heat the Joint

Use a soldering iron to heat the twisted wire joint until it is hot enough to melt the solder.

Step 3: Apply Solder

Feed solder into the joint as it heats up, allowing it to flow into the connection. Remove the solder and iron once the joint is fully soldered.

Step 4: Insulate

Cover the soldered connection with heat shrink tubing or electrical tape to protect it from shorts and environmental damage.

Safety Tips

Working with electrical wires can be dangerous if proper precautions are not taken. Here are some safety tips to keep in mind:

• Always ensure power is turned off before working on electrical circuits.
• Wear safety goggles and gloves to protect yourself from sparks and sharp wire ends.
• Use insulated tools whenever possible.
• Keep your work area dry to prevent electrical shocks.

Real-World Examples and Case Studies

Case studies highlight the importance of proper wire stripping and splicing in various applications. For instance, in residential wiring, improper splices can lead to electrical fires. A study by the National Fire Protection Association (NFPA) revealed that faulty electrical connections were a leading cause of house fires.

Furthermore, in automotive applications, a proper soldered connection can reduce the risk of failure in critical systems. According to a report by the Society of Automotive Engineers (SAE), vehicles with poorly spliced wires are more likely to experience electrical failures.

Conclusion

Mastering the skills of wire stripping and splicing can save time, money, and prevent dangerous electrical failures. Whether you choose wire caps, butt splices, or soldering, understanding the methods and best practices will enhance your electrical work significantly.

FAQs
