Mastering Silicon Diodes: A Comprehensive Guide to Testing with a Multimeter

Mastering Silicon Diodes: A Comprehensive Guide to Testing with a Multimeter

1. Introduction to Silicon Diodes

Silicon diodes are fundamental components in the world of electronics, used for rectification, voltage regulation, and signal processing. Understanding how to test them effectively can save you time and money in troubleshooting electronic devices. In this guide, we will delve deep into the process of testing silicon diodes using a multimeter, covering everything from basic concepts to advanced techniques.

2. Tools Needed for Testing

Before you begin testing silicon diodes, you will need a few essential tools:

3. Understanding How Silicon Diodes Work

Silicon diodes are semiconductor devices that allow current to flow in one direction while blocking it in the opposite direction. This property is critical for converting alternating current (AC) to direct current (DC). The basic structure of a silicon diode includes a p-n junction, where p-type and n-type materials meet.

Key Characteristics of Silicon Diodes

4. Step-by-Step Testing Techniques

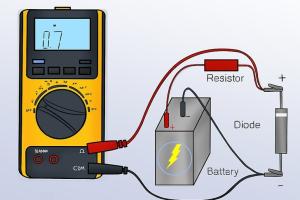

Step 1: Set Up Your Multimeter

Begin by setting your multimeter to the diode test mode, which is often represented by a diode symbol. This mode applies a small voltage to the diode, allowing you to test its functionality.

Step 2: Connect the Test Leads

Connect the red lead to the anode (positive side) and the black lead to the cathode (negative side) of the diode. In this configuration, you are testing the diode in the forward direction.

Step 3: Observe the Reading

A functional silicon diode should show a forward voltage drop, typically between 0.6V to 0.7V. If the multimeter displays a reading significantly lower than this, the diode may be defective.

Step 4: Reverse the Leads

Now, reverse the leads: connect the black lead to the anode and the red lead to the cathode. In this reverse configuration, the multimeter should ideally show an open circuit (OL or infinity).

Step 5: Analyze the Results

If the diode shows a low reading in reverse mode, it is likely shorted. If it shows a reading in forward mode, it is also likely faulty. A good silicon diode will pass current in one direction and block it in the other.

5. Common Issues with Diodes and How to Identify Them

When testing silicon diodes, you might encounter several common issues:

6. Real-World Case Studies

Let’s consider a few real-world examples of testing silicon diodes:

Case Study 1: Power Supply Repair

A common issue in power supplies is a blown silicon diode. By following the testing procedure outlined above, technicians can quickly determine whether the diode is functional or needs replacement.

Case Study 2: Audio Amplifier Troubleshooting

In audio amplifiers, diodes are used for protection. A faulty diode can cause distortion or even complete failure of the amplifier. Testing the diodes can help isolate the problem quickly.

7. Expert Insights and Tips

Here are some tips from industry experts on testing silicon diodes:

8. Conclusion

Testing silicon diodes with a multimeter is a straightforward process that can greatly assist in troubleshooting electronic devices. By understanding the principles behind diode operation and following the outlined steps, you can efficiently determine the health of your diodes.

9. FAQs

What is a silicon diode?

A silicon diode is a semiconductor device that allows current to flow in one direction and is widely used in electronic circuits.

How do I know if my silicon diode is bad?

If the diode shows low resistance in both directions or no resistance at all, it is likely defective.

Can I test a diode while it is still in the circuit?

It is best to test diodes out of the circuit to avoid false readings from other components.

What is the typical forward voltage drop for a silicon diode?

The typical forward voltage drop for a silicon diode is around 0.7V.

How do I test a zener diode with a multimeter?

To test a zener diode, follow the same procedure but check for breakdown voltage in reverse bias.

What are the signs of a leaky diode?

A leaky diode will show low resistance when tested in reverse mode.

Can I use an analog multimeter to test diodes?

Yes, but a digital multimeter is recommended for more accurate readings.

What happens if I connect the diode the wrong way?

Connecting the diode in reverse will not damage it, but you will not get a correct reading.

How often should I test diodes in my devices?

It is good practice to test diodes during regular maintenance or when troubleshooting issues.

Are there any specific safety precautions I should take?

Always ensure the device is powered off and discharge any capacitors before testing.

Where can I find more information on silicon diodes?

Refer to electronics textbooks, manufacturer datasheets, and reputable electronics websites.

";
