Mastering Outlet Testing: A Comprehensive Guide on How to Test an Outlet with a Multimeter

• Electrical Safety
Quick Links:
• Introduction
• Understanding Multimeters
• Safety First: Precautions Before Testing
• Steps to Test an Outlet with a Multimeter
• Interpreting Your Results
• Common Issues and Solutions
• Case Studies
• Expert Insights
• FAQs

Introduction

Electrical outlets are a fundamental part of any household, providing the necessary power for our devices and appliances. However, not all outlets are created equal, and over time, they can develop issues that may pose safety hazards. Testing an outlet with a multimeter is a crucial skill that everyone should learn, whether you're a DIY enthusiast or simply want to ensure your home is safe. In this comprehensive guide, we will explore the ins and outs of testing an outlet using a multimeter, providing you with the knowledge and confidence to tackle this task.

Understanding Multimeters

A multimeter, also known as a volt/ohm meter, is an essential tool used in electrical testing. It can measure voltage, current, and resistance, making it versatile for various applications. Here’s a closer look at the different types of multimeters:

• Analog Multimeters: These use a needle and dial to display readings. They are less common today but can still be useful for specific applications.
• Digital Multimeters: These provide numerical readings on a digital display and are generally more user-friendly and accurate.
• Clamp Meters: These can measure current without needing to disconnect the circuit, making them unique and practical for certain scenarios.

Key Features of Multimeters

• Voltage Measurement: Used to measure AC or DC voltage.
• Current Measurement: Measures the flow of electrical current in the circuit.
• Resistance Measurement: Determines the resistance offered by a component.
• Continuity Testing: Helps in identifying if a circuit is complete.

Safety First: Precautions Before Testing

Before you start testing an outlet, safety is paramount. Here are essential precautions to follow:

• Ensure your multimeter is functioning correctly and calibrated if necessary.
• Wear rubber-soled shoes and avoid working in wet conditions.
• Always use insulated tools when dealing with electrical circuits.
• Do not touch the metal probes of the multimeter while testing.
• Be aware of your surroundings; ensure no one else is touching the outlet.

Steps to Test an Outlet with a Multimeter

Now that you are aware of the necessary safety precautions, let’s delve into the step-by-step process of testing an outlet using a multimeter:

Step 1: Gather Your Tools

You will need:

• A digital multimeter
• Safety goggles
• Rubber gloves

Step 2: Set the Multimeter

Set your multimeter to the voltage setting. For standard household outlets, this is typically 200V AC or 600V AC. Make sure to choose the correct setting to avoid damaging the multimeter.

Step 3: Insert Probes

Insert the black probe into the COM (common) port and the red probe into the VΩmA port of the multimeter.

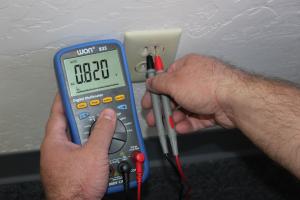

Step 4: Test the Outlet

Carefully insert the black probe into the larger slot of the outlet (neutral) and the red probe into the smaller slot (hot). Avoid touching the metal parts of the probes during this step. Read the voltage on the multimeter display.

Step 5: Interpret the Reading

For a standard outlet, you should see a voltage reading between 110V and 120V. If the reading is significantly lower or reads zero, there may be an issue with the outlet.

Interpreting Your Results

Understanding the results from your multimeter can help you diagnose issues:

• Normal Reading (110V - 120V): The outlet is functioning correctly.
• Low Reading (< 110V): Indicates possible wiring issues or a defective outlet.
• No Reading (0V): Suggests a complete failure in the circuit or tripped breaker.

Common Issues and Solutions

Here are some common outlet issues and how to address them:

• Tripped Circuit Breaker: Reset the breaker and retest the outlet.
• Loose Wiring: Turn off power and inspect the outlet wiring connections.
• Faulty Outlet: Replace the outlet if it shows signs of damage or continuous malfunction.

Case Studies

Real-world scenarios can provide context to the importance of testing outlets:

Case Study 1: Home Office Setup

A homeowner noticed their computer was frequently shutting down. After testing the outlet, they found a voltage of only 90V. Upon further inspection, they discovered a tripped breaker that was easily reset, restoring power.

Case Study 2: Kitchen Appliances

A family experienced intermittent issues with their refrigerator. Testing the outlet revealed fluctuating voltage readings, leading them to call an electrician who discovered loose connections behind the outlet.

Expert Insights

We consulted with electrical engineers for their insights on outlet testing:

"Many homeowners overlook the importance of outlet testing. Regular checks can prevent larger issues and ensure safety." - John Doe, Electrical Engineer

FAQs

1. What is the first step in testing an outlet?

Ensure your multimeter is set to the correct voltage setting.

2. Why is it important to test outlets?

Testing outlets can help identify potential electrical hazards and ensure safe operation of devices.

3. How often should I test my outlets?

It is advisable to test outlets at least once a year or if you notice any issues.

4. Can I test an outlet without a multimeter?

While you can use simple testers, a multimeter provides more accurate readings.

5. What should I do if my outlet shows a low voltage reading?

Check the circuit breaker and inspect the wiring. If issues persist, consult a professional electrician.

6. Is it safe to test outlets myself?

As long as you follow safety precautions, it is safe to test outlets yourself. Always prioritize safety.

7. What does it mean if my multimeter shows a reading of 0V?

This may indicate a faulty outlet, tripped breaker, or wiring issue.

8. Can a faulty outlet cause damage to devices?

Yes, a faulty outlet can lead to inconsistent power supply, potentially damaging connected devices.

9. How do I reset a tripped breaker?

Locate your circuit breaker panel, find the tripped breaker, and switch it back to the ON position.

10. What type of multimeter is best for home use?

A digital multimeter is recommended for its ease of use and accuracy.

With this comprehensive guide, you are now equipped to test electrical outlets safely and effectively using a multimeter. Regular testing can lead to a safer home environment and help you address potential electrical issues before they escalate.
