Ultimate Guide to Wiring a 220V Outlet: Step-by-Step Instructions
- Home Improvement Quick Links:
- Introduction
- Understanding 220V Outlets
- Tools and Materials Needed
- Safety First: Precautions Before You Begin
- Step-by-Step Guide to Wiring a 220V Outlet
- Case Studies: Real-Life Wiring Projects
- Expert Insights: Common Mistakes and Tips
- Conclusion
- FAQs
Introduction
Wiring a 220V outlet can be a daunting task for many homeowners. However, with the right knowledge and tools, this job can be completed safely and effectively. In this comprehensive guide, we will explore everything you need to know about wiring a 220V outlet, including tools, safety measures, and a detailed step-by-step process.
Understanding 220V Outlets
220V outlets are typically used for high-powered appliances like dryers, water heaters, and air conditioning units. These outlets differ from standard 120V outlets in their voltage requirements and wiring configurations.
Voltage and Amperage Explained
Understanding voltage and amperage is crucial when dealing with electrical systems. A 220V outlet usually handles appliances that require more power, generally rated at 20 to 50 amps.
Common Uses of 220V Outlets
- Electric dryers
- Electric ranges
- Air conditioning units
- Welders
- Heavy-duty power tools
Tools and Materials Needed
Before starting, gather the following tools and materials:
- Voltage tester
- Wire strippers
- Screwdriver set
- Drill and bits
- Electrical tape
- Wire nuts
- 220V outlet and faceplate
- Electrical wire (10 or 12 gauge, depending on the amperage)
- Circuit breaker (if not already installed)
Safety First: Precautions Before You Begin
Electrical work can be dangerous, so it's crucial to follow safety protocols:
- Always turn off the power at the circuit breaker before starting work.
- Use a voltage tester to ensure no power is running through the wires.
- Wear rubber-soled shoes and gloves for added safety.
- Follow local electrical codes and regulations.
Step-by-Step Guide to Wiring a 220V Outlet
Step 1: Turn Off the Power
Locate your circuit breaker box and turn off the power to the circuit you’ll be working on. Use a voltage tester to confirm that the power is off.
Step 2: Install the Circuit Breaker
If your outlet doesn’t have a dedicated circuit, you’ll need to install a double-pole circuit breaker. Consult your local building codes for specific requirements.
Step 3: Run the Electrical Wire
Run the appropriate gauge wire from the circuit breaker to the desired outlet location. Make sure to secure the wire with staples to keep it safe from damage.

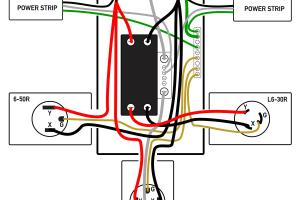

Step 4: Connect the Wires to the Outlet
Strip the ends of the wires and connect them to the outlet. Typically, a 220V outlet will have two hot wires (usually red and black) and a ground wire (green or bare). Follow the manufacturer's instructions for specific wiring configurations.
Step 5: Secure the Outlet and Faceplate
Once the wires are connected, secure the outlet back into the electrical box and attach the faceplate. Make sure everything is tight and secure.
Step 6: Turn the Power Back On
Go back to the circuit breaker and turn the power back on. Test the outlet with a voltage tester to ensure it’s functioning correctly.
Case Studies: Real-Life Wiring Projects
Case Study 1: Installing a 220V Outlet for a Dryer
A homeowner in a suburban area needed to install a 220V outlet for a new electric dryer. They followed the steps outlined in this guide and successfully completed the installation, ensuring that they complied with local regulations.
Case Study 2: Upgrading to a 220V Outlet for a Workshop
A DIY enthusiast upgraded their garage workshop by installing a 220V outlet. They used a licensed electrician to ensure safety and compliance with local codes, showcasing the importance of professional help for complex projects.
Expert Insights: Common Mistakes and Tips
- **Don’t skip the voltage tester**: Always double-check that the power is off.
- **Use the right gauge wire**: Incorrect wire gauge can lead to overheating and fires.
- **Consult local codes**: Electrical codes vary by location, so make sure to follow them.
Conclusion
Wiring a 220V outlet can seem overwhelming, but with the right tools, materials, and knowledge, it can be a manageable DIY project. Always prioritize safety and, when in doubt, consult a professional electrician.
FAQs
1. Can I wire a 220V outlet by myself?
Yes, if you are knowledgeable and follow safety procedures. However, hiring a licensed electrician is recommended for complex installations.
2. What gauge wire do I need for a 220V outlet?
Typically, for a 20-amp circuit, you need 12-gauge wire; for a 30-amp circuit, use 10-gauge wire.
3. How do I know if my outlet is functioning properly?
Use a voltage tester to check if the outlet is receiving power.
4. What appliances require a 220V outlet?
Common appliances include dryers, electric ranges, and air conditioning units.
5. Is it safe to use a 220V outlet with an adapter?
Using an adapter is not recommended, as it can lead to overheating and potential fire hazards.
6. How much does it cost to install a 220V outlet?
The cost varies widely depending on local labor rates and materials but typically ranges from $200 to $800.
7. What should I do if my outlet sparks?
Turn off the power immediately and consult a licensed electrician to assess the situation.
8. How do I find the right circuit breaker for my outlet?
Consult your local electrical codes and consider the amperage requirements of your appliances.
9. Can I use a 220V outlet for a 120V appliance?
No, using a 120V appliance on a 220V outlet can cause severe damage to the appliance.
10. What is the difference between a single-pole and double-pole circuit breaker?
A single-pole breaker controls 120V circuits, while a double-pole breaker is used for 220V circuits.
