Mastering the Basics: A Comprehensive Guide on How to Wire a 3 Way Switch
- Home Improvement Quick Links:
- Introduction
- Understanding 3 Way Switches
- Tools Needed
- Safety First
- Step-by-Step Guide to Wiring a 3 Way Switch
- Common Mistakes to Avoid
- Case Study: Real-World Example
- Expert Insights
- FAQs
- Conclusion
Introduction
Wiring a 3 way switch may seem daunting, but it's a valuable skill that enhances your home’s lighting control. Whether you’re looking to improve convenience or simply reduce energy consumption, understanding how to wire a 3 way switch is essential for any DIY enthusiast. In this comprehensive guide, we will walk you through everything you need to know about wiring a 3 way switch, from the basics to advanced techniques.
Understanding 3 Way Switches
A 3 way switch allows you to control a single light fixture from two different locations. This is particularly useful in larger rooms or hallways where multiple entrances are present. Here’s a basic overview of how it works:
- Functionality: When one switch is flipped, it can either turn the light on or off, regardless of the position of the other switch.
- Components: A typical setup includes two 3 way switches and a light fixture connected through wires that allow current to flow.
Tools Needed
Before you begin, ensure you have the following tools ready:
- Wire Strippers
- Phillips and Flathead Screwdrivers
- Voltage Tester
- Electrical Tape
- Drill (optional)
- Wire Nuts
- PVC Conduit (if necessary)
Safety First
Electrical work can be dangerous. Follow these safety tips to ensure a secure installation:
- Always turn off the power at the circuit breaker before starting any electrical work.
- Use a voltage tester to confirm that the power is off.
- Wear insulated gloves and use tools with insulated handles.
- Consult with a professional electrician if you are unsure about any step.
Step-by-Step Guide to Wiring a 3 Way Switch
Now that you have the tools and safety measures in place, let’s go through the wiring process step-by-step:

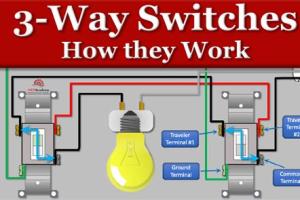

Step 1: Understanding the Wiring Layout
In a typical 3 way switch setup, you will have:
- Power Source: The source of power, usually from the circuit breaker.
- Switch A: The first 3 way switch connected to the power source.
- Switch B: The second 3 way switch connected to Switch A and the light fixture.
- Light Fixture: The light that you want to control.
Step 2: Wiring the Power Source to Switch A
Connect the wires from the power source to Switch A as follows:
- Connect the black (hot) wire from the power source to the common terminal of Switch A.
- Connect the white (neutral) wire to the light fixture's neutral terminal.
- Connect the ground wire to the ground terminal of Switch A.
Step 3: Connecting Switch A to Switch B
Now, connect Switch A to Switch B:
- Use two traveler wires (typically red and black) to connect the traveler terminals of Switch A to Switch B.
Step 4: Wiring Switch B to the Light Fixture
Connect Switch B to the light fixture:
- Connect the common terminal of Switch B to the light fixture's hot terminal (black wire).
- Ensure the neutral wire from the power source is connected to the light fixture's neutral terminal.
- Connect the ground wire to the ground terminal of Switch B.
Step 5: Final Checks
Before you turn the power back on:
- Double-check all connections for security and correctness.
- Secure all wiring with wire nuts and electrical tape.
- Install the switch covers.
Step 6: Testing the Setup
Turn the power back on and test both switches to ensure they operate the light fixture correctly. If everything is functioning as intended, congratulations! You've successfully wired a 3 way switch!
Common Mistakes to Avoid
Even seasoned DIYers can make mistakes. Here are common pitfalls to watch out for:
- Not turning off the power before starting work.
- Connecting the wrong wires to the terminals.
- Failing to secure connections, leading to shorts or failures.
- Ignoring local electrical codes and regulations.
Case Study: Real-World Example
Let’s consider a homeowner, Jane, who wanted to install a 3 way switch in her hallway. Jane followed the steps outlined above and found that not only did she save money on installation costs, but she also gained a sense of accomplishment. By taking the time to research and understand the wiring process, Jane was able to enhance her home’s functionality. This case study exemplifies how understanding electrical wiring can empower homeowners.
Expert Insights
According to electrical experts, wiring a 3 way switch is one of the most rewarding DIY projects. It’s essential to invest in quality materials and tools to ensure safety and longevity. Additionally, they emphasize the importance of understanding local codes and seeking help when needed.
FAQs
1. What is the purpose of a 3 way switch?
A 3 way switch allows you to control a single light from two separate locations, providing convenience and flexibility in lighting control.
2. Can I wire a 3 way switch without an electrician?
Yes, if you follow proper guidelines and safety precautions, many homeowners successfully wire a 3 way switch on their own.
3. What tools do I need to wire a 3 way switch?
You will need wire strippers, screwdrivers, a voltage tester, electrical tape, wire nuts, and possibly a drill.
4. What are traveler wires?
Traveler wires are the wires that connect the two 3 way switches and allow them to communicate with each other.
5. How do I know which wire is the common wire?
The common wire is typically connected to the black screw on the switch. Consult the switch's manual if unsure.
6. Can I use LED bulbs with a 3 way switch?
Yes, but ensure that you use compatible LED bulbs designed for use with dimmer switches if applicable.
7. Is it safe to do electrical work myself?
As long as you take safety precautions, follow instructions, and comply with local codes, it can be safe. When in doubt, consult a professional.
8. How can I troubleshoot a malfunctioning 3 way switch?
Check all connections, ensure that the switches are wired correctly, and test for a faulty switch or wiring.
9. What if my lights flicker after installation?
Flickering lights can indicate loose connections, incompatible bulbs, or issues with the wiring. Check your connections or consult an electrician.
10. Are there any specific codes I should be aware of?
Yes, local electrical codes vary by location. It’s crucial to check these before starting your project to ensure compliance.
Conclusion
Wiring a 3 way switch is not only a practical skill to learn but also a rewarding project that can enhance your home’s functionality. By following this comprehensive guide and adhering to safety precautions, you can successfully install a 3 way switch and enjoy the benefits of better lighting control in your home. Remember, when in doubt, always consult a professional electrician to ensure safety and compliance with local regulations.
