Introduction

Cleaning furnace flame rod sensors is an essential part of maintaining your heating system. A well-maintained furnace not only operates more efficiently but also ensures the safety of your home. In this comprehensive guide, we will walk you through the process of cleaning furnace flame rod sensors, the importance of regular maintenance, and provide expert insights to help you along the way.

Understanding Flame Rod Sensors

Flame rod sensors, also known as flame rectification sensors, are vital components of modern gas furnaces. They detect the presence of a flame and ensure that the furnace operates safely. If the sensor fails or is dirty, it can lead to system malfunctions or unsafe operating conditions.

How Flame Rod Sensors Work

The flame rod sensor works by measuring the electrical current generated by the flame. When the furnace ignites, a small electrical charge is created. This charge travels through the flame to the furnace's control board, signaling that the flame is present and the furnace can continue to operate.

Importance of Cleaning Flame Rod Sensors

Regularly cleaning your furnace flame rod sensors is crucial for several reasons:

• Improved Efficiency: A clean sensor ensures that the furnace can detect flames accurately, leading to more efficient operation.
• Safety: Dirty sensors can cause the furnace to shut down unexpectedly or fail to ignite, posing safety risks.
• Extended Lifespan: Regular maintenance extends the life of your heating system and reduces repair costs.

Tools and Materials Needed

Before you begin cleaning your furnace flame rod sensors, gather the following tools and materials:

• Safety goggles
• Gloves
• Soft cloth or brush
• Fine-grit sandpaper
• Multimeter (for testing)
• Vacuum cleaner with a brush attachment

Step-by-Step Guide to Cleaning Flame Rod Sensors

Step 1: Safety First

Before you start, make sure to turn off the power to your furnace and allow it to cool down. Always wear safety goggles and gloves to protect yourself.

Step 2: Locate the Flame Rod Sensor

The flame rod sensor is typically located near the burners inside the furnace. Refer to your furnace manual for specific location instructions.

Step 3: Remove the Flame Rod Sensor

Carefully disconnect the flame rod sensor from its mounting bracket. Take note of how it is connected for reinstallation.

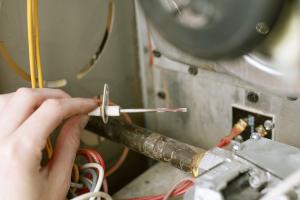

Step 4: Cleaning the Sensor

Using a soft cloth or brush, gently clean the surface of the flame rod sensor. For tougher grime, you may use fine-grit sandpaper to lightly sand the sensor. Be cautious not to damage the sensor.

Step 5: Inspect for Damage

After cleaning, inspect the flame rod sensor for any signs of wear or damage. If the sensor appears corroded or cracked, it may need to be replaced.

Step 6: Reinstall the Sensor

Carefully reconnect the flame rod sensor to its original location, ensuring all connections are secure.

Step 7: Test the System

Restore power to the furnace and turn it on. Use a multimeter to test the sensor's functionality and ensure it is working properly.

Case Studies

Here are two case studies showcasing the impact of cleaning flame rod sensors:

Case Study 1: Residential Furnace Efficiency

A homeowner reported frequent furnace shutdowns. After cleaning the flame rod sensor, the furnace operated without issues for an entire heating season, demonstrating increased efficiency.

Case Study 2: Commercial HVAC System

A commercial property manager faced high energy bills due to inefficient heating. After a thorough cleaning of the flame rod sensors across multiple units, the property saw a 15% reduction in energy costs.

Expert Insights

Experts recommend scheduling annual furnace maintenance, including sensor cleaning, to ensure optimal performance. Regular inspections can identify issues before they escalate, saving time and money.

Common Mistakes to Avoid

• Neglecting to turn off power before cleaning.
• Using abrasive materials that can damage the sensor.
• Failing to properly inspect the sensor for damage after cleaning.

FAQs

1. How often should I clean my furnace flame rod sensor?

It is recommended to clean your flame rod sensor at least once a year or as part of your annual furnace maintenance.

2. Can I clean the flame rod sensor myself?

Yes, with the right tools and safety precautions, you can clean the flame rod sensor yourself. Follow the steps outlined in this guide.

3. What happens if I don’t clean the flame rod sensor?

If the flame rod sensor is not cleaned, it may lead to furnace malfunctions, reduced efficiency, and potential safety hazards.

4. How can I tell if my flame rod sensor is bad?

If your furnace frequently shuts off or fails to ignite, it may indicate a problem with the flame rod sensor. Testing with a multimeter can help diagnose the issue.

5. Is it safe to clean the flame rod sensor?

Yes, as long as you follow safety precautions, such as turning off the power and wearing protective gear, it is safe to clean the sensor.

6. What tools do I need to clean the sensor?

You will need safety goggles, gloves, a soft cloth, fine-grit sandpaper, and a multimeter.

7. Can I use water to clean the sensor?

It is not recommended to use water. A dry cloth or brush is sufficient for cleaning the sensor.

8. How long does it take to clean a flame rod sensor?

The cleaning process can take approximately 30 minutes, including inspection and testing.

9. What are the signs of a dirty flame rod sensor?

Signs include frequent furnace shutdowns, failure to ignite, and an overall decrease in heating efficiency.

10. Should I hire a professional for sensor cleaning?

If you are uncomfortable performing the cleaning yourself, it is advisable to hire a professional HVAC technician.

Conclusion

Cleaning your furnace flame rod sensors is a simple yet crucial task that can significantly enhance your heating system's efficiency and safety. By following the steps outlined in this guide, you can ensure your furnace operates smoothly and reliably. Regular maintenance not only prolongs the life of your furnace but also keeps your home safe and warm.

For more information on HVAC maintenance and safety tips, visit Energy.gov and HVAC.com.
