Mastering the Art of RJ45 Crimping: A Comprehensive Guide

Mastering the Art of RJ45 Crimping: A Comprehensive Guide

Introduction

Crimping RJ45 connectors is an essential skill for anyone involved in networking—whether you're a DIY enthusiast, an IT professional, or a hobbyist. This comprehensive guide will walk you through the process of crimping RJ45 connectors, ensuring that you can create reliable Ethernet cables for your networking needs.

Understanding RJ45 Connectors

RJ45 connectors are widely used in networking, especially for Ethernet cables. These connectors allow for the transmission of data and are integral to connecting devices such as computers, switches, and routers. Understanding the structure and function of RJ45 connectors is crucial for effective crimping.

Components of an RJ45 Connector

Types of RJ45 Connectors

There are two primary types of RJ45 connectors: T568A and T568B. The choice between these standards can affect network performance and compatibility, so it’s essential to follow the correct wiring scheme.

Tools Required for Crimping RJ45

Before you begin crimping RJ45 connectors, ensure you have the right tools at your disposal:

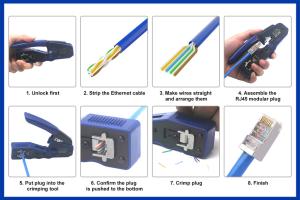

Step-by-Step Guide to Crimp RJ45

Now that you have the necessary tools, follow these steps to crimp your RJ45 connectors successfully:

Step 1: Prepare the Cable

Step 2: Untwist the Pairs

Inside the cable, you will find four twisted pairs of wires. Carefully untwist these pairs and arrange them in the correct order based on the wiring standard you choose (T568A or T568B).

Wiring Order

Pin Number T568A T568B
1 White/Green White/Orange
2 Green Orange
3 White/Orange White/Green
4 Blue Blue
5 White/Blue White/Blue
6 Orange Green
7 White/Brown White/Brown
8 Brown Brown

Step 3: Insert Wires into the Connector

Once the wires are aligned in the correct order, carefully insert them into the RJ45 connector. Ensure that each wire reaches the end of the connector and is seated properly.

Step 4: Crimp the Connector

Using your crimping tool, apply firm pressure to crimp the connector onto the cable. This action will secure the metal contacts to the wires, ensuring a solid connection.

Step 5: Test the Cable

After crimping, it’s crucial to test the cable using a cable tester to ensure that all connections are properly made and functioning.

Troubleshooting Common Issues

Even experienced technicians may encounter issues when crimping RJ45 connectors. Here are some common problems and their solutions:

Case Studies: Real-World Applications

Understanding how RJ45 crimping is applied in real-world scenarios can provide valuable insights. Here are a few case studies:

Case Study 1: Home Networking

A homeowner decided to improve their home network by crimping their own Ethernet cables. By following the steps outlined, they successfully connected their smart devices and improved their internet speed significantly.

Case Study 2: Small Business Setup

A small business required several Ethernet connections for their office setup. By crimping their cables, they saved costs and ensured that their network was tailored to their specific needs.

Expert Insights and Tips

To further enhance your crimping skills, consider these expert tips:

FAQs

1. What is an RJ45 connector?

An RJ45 connector is a standard connector used for Ethernet networking, allowing devices to communicate via wired connections.

2. How do I know which wiring standard to use?

Both T568A and T568B standards are widely used. Choose one standard for all connections in a network to avoid issues.

3. Can I crimp RJ45 connectors without a crimping tool?

While it is technically possible to attach connectors without a crimping tool, it is not recommended as it can lead to unreliable connections.

4. What tools do I need for crimping RJ45?

You will need an RJ45 crimping tool, a cable cutter/stripper, RJ45 connectors, and Ethernet cable.

5. How long should I make my Ethernet cables?

Keep Ethernet cables as short as possible while ensuring they meet your needs; longer cables can lead to signal degradation.

6. What is the maximum length for Ethernet cables?

The maximum length for Ethernet cables (Cat5e and Cat6) is 100 meters (328 feet) for optimal performance.

7. Can I use crimped cables for PoE (Power over Ethernet)?

Yes, crimped cables can be used for PoE, but ensure that the cable and connectors are rated for the power requirements.

8. What should I do if my crimped cable doesn’t work?

Check the wiring order, ensure the wires are fully inserted, and use a cable tester to diagnose issues.

9. How can I improve my crimping skills?

Practice regularly, watch instructional videos, and stay updated with networking trends and standards.

10. Are there alternative connectors to RJ45?

Yes, alternatives such as RJ11 and fiber connectors exist, but RJ45 is the most common for Ethernet applications.
