Ultimate Guide on How to Install a Power Supply for Your PC

• Technology
Quick Links:
• Introduction
• Understanding Power Supplies
• Choosing the Right Power Supply
• Safety Precautions
• Tools You Need
• Step-by-Step Installation Guide
• Common Installation Issues
• Troubleshooting Tips
• Expert Insights
• Case Studies
• FAQs

Introduction

Installing a power supply (PSU) is one of the critical steps in building or upgrading your computer system. This guide will walk you through everything you need to know to install a power supply correctly. Whether you’re a seasoned builder or a first-time DIY enthusiast, our comprehensive tips will ensure a smooth installation process.

Understanding Power Supplies

A power supply unit converts electrical power from an outlet into usable power for your computer components. Understanding the different types of power supplies and their specifications is key to ensuring compatibility and efficiency.

Power supplies are rated in watts, which indicates how much power they can provide to components. Common types include ATX, SFX, and TFX, each suited for different builds.

Types of Power Supplies

• ATX Power Supplies: The most common type found in desktop computers.
• SFX Power Supplies: Compact units for small form factor cases.
• TFX Power Supplies: Typically used in slimline PCs.

Choosing the Right Power Supply

Selecting the correct power supply is crucial for system stability. Consider the following factors:

• Wattage: Calculate the total wattage required by your components.
• Efficiency Rating: Look for 80 PLUS certification for better efficiency.
• Modularity: Decide between non-modular, semi-modular, or fully modular power supplies.

Recommended Wattage Calculation

Use an online PSU calculator or sum up the wattages of your components, adding a margin (20% more) for future upgrades.

Safety Precautions

Before starting the installation process, ensure you follow safety guidelines:

• Work in a static-free environment.
• Unplug your computer from the electrical outlet.
• Wear an anti-static wristband if possible.

Tools You Need

Gather the following tools for a hassle-free installation:

• Philips screwdriver
• Flathead screwdriver
• Anti-static wrist strap
• Flashlight (optional)

Step-by-Step Installation Guide

Follow these detailed steps to install your power supply:

Step 1: Prepare Your Workspace

Ensure your workspace is clean and free of clutter. Lay out your tools and components for easy access.

Step 2: Remove the Old Power Supply

If you’re replacing an existing unit, follow these sub-steps:

• Disconnect all cables from the old power supply.
• Unscrew the power supply from the case.
• Carefully remove the old power supply from the case.

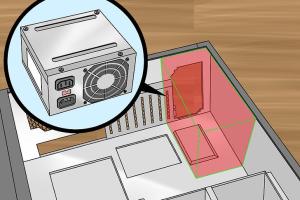

Step 3: Install the New Power Supply

Now, install your new power supply by reversing the removal steps:

• Align the power supply with the mounting area.
• Screw it securely into place.
• Ensure the fan is facing the correct direction (usually outwards).

Step 4: Connect the Cables

Connect the following cables:

• 24-pin motherboard connector
• 4/8-pin CPU connector
• PCIe connectors for graphics cards
• SATA power connectors for SSDs and HDDs

Step 5: Final Checks

Double-check all connections and ensure there are no loose cables. Tidy up your cables for better airflow and aesthetics.

Step 6: Power On and Test

Plug in your computer and turn it on. If everything is connected properly, your system should boot up without issues.

Common Installation Issues

Even with careful installation, you may encounter issues. Here are some common problems and their solutions:

• Computer Won't Power On: Check all connections and ensure the power supply switch is on.
• Overheating: Ensure the PSU fan is functional and not obstructed.
• Unstable Power Supply: Test the unit with a multimeter or visit a professional.

Troubleshooting Tips

If you face issues post-installation, consider the following troubleshooting steps:

• Recheck all component connections.
• Make sure the PSU is compatible with your hardware.
• Seek expert advice if problems persist.

Expert Insights

Experts recommend regularly checking your power supply’s functionality, especially if you notice irregularities in your system's performance. Routine maintenance can prolong the life of your PSU.

Case Studies

Here are a few examples of successful power supply installations:

Case Study 1: The Gaming Rig Upgrade

A gamer upgraded their power supply to accommodate a high-performance GPU, resulting in smoother gameplay and better system stability. They opted for a modular PSU, which enhanced cable management.

Case Study 2: The Silent Build

A user focused on a silent build chose a power supply with a semi-passive mode, which only activates the fan under load, reducing noise during normal operation.

FAQs

1. What tools do I need to install a power supply?

You typically need a Phillips screwdriver, a flathead screwdriver, and an anti-static wrist strap.

2. How do I know what wattage power supply I need?

Calculate the total wattage of all your components or use an online PSU calculator.

3. Can I install a power supply without any experience?

Yes, as long as you follow the guidelines and take necessary precautions, even beginners can install a PSU.

4. What if my computer doesn’t turn on after installation?

Check all connections and ensure the PSU switch is turned on.

5. How often should I replace my power supply?

Generally, a quality PSU can last 5-7 years, but monitor for signs of failure.

6. What is the difference between modular and non-modular power supplies?

Modular power supplies allow you to use only the cables you need, improving cable management. Non-modular units have all cables permanently attached.

7. Do I need to use all the connectors on my power supply?

No, only use the connectors necessary for your components. Ensure the essential ones like the motherboard and CPU connectors are connected.

8. What is a power supply’s efficiency rating?

The efficiency rating indicates how much power is wasted during operation. Higher ratings (like 80 PLUS Gold) are more efficient.

9. Can a faulty power supply damage my components?

Yes, a faulty PSU can potentially damage your hardware. It's crucial to use a reliable unit.

10. Where can I find reliable power supply reviews?

Check tech review sites such as Tom's Hardware or TechPowerUp.

Conclusion

Installing a power supply is a straightforward process with the right preparation and understanding. By following the steps and tips outlined in this guide, you can ensure a successful installation, enhancing your computer's performance and reliability.
