Mastering Multimeters: A Complete Guide to Reading and Using Your Device
- Electronics Quick Links:
- 1. Introduction
- 2. Understanding Multimeters
- 3. Types of Multimeters
- 4. Key Features of Multimeters
- 5. How to Read a Multimeter
- 6. Practical Examples
- 7. Troubleshooting Tips
- 8. Case Studies
- 9. Expert Insights
- 10. FAQs
1. Introduction
Understanding how to read a multimeter is essential for anyone interested in electronics, whether you’re a beginner or an experienced technician. A multimeter is a versatile tool that allows you to measure voltage, current, and resistance, making it invaluable for diagnosing electrical issues, testing components, and conducting experiments. This comprehensive guide will walk you through everything you need to know about using a multimeter effectively.
2. Understanding Multimeters
A multimeter, also known as a volt/ohm meter (VOM), combines several measurement functions into one device. It can measure:
- Voltage (both AC and DC)
- Current (both AC and DC)
- Resistance
- Continuity
- Capacitance (on some models)
By mastering these measurements, you can troubleshoot electrical systems, check batteries, and work on various electronic appliances.
3. Types of Multimeters
There are two main types of multimeters:
3.1 Digital Multimeter (DMM)
Digital multimeters provide a numerical display of readings, making them easier to read and interpret. They often come with additional features such as data hold, auto-ranging, and backlighting.
3.2 Analog Multimeter
Analog multimeters use a needle and a scale to display readings. While they can be less precise than digital models, they can be beneficial for certain applications, such as observing trends in readings over time.
4. Key Features of Multimeters
- Auto-Ranging: Automatically selects the correct range for measurements.
- Data Hold: Freezes the reading on the display for easier observation.
- Backlight: Illuminates the display for use in low-light conditions.
- Continuity Test: Emits a sound when a complete path is detected.
- Battery Test: Checks the charge level of batteries.

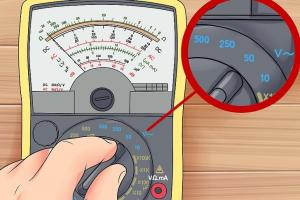

5. How to Read a Multimeter
Reading a multimeter requires understanding its display and settings. Follow these steps:
5.1 Setting Up Your Multimeter
- Identify the type of measurement you want to perform (voltage, current, resistance).
- Set the multimeter dial to the appropriate measurement function.
- If applicable, select the range (manual range models). For auto-ranging models, this step is not necessary.
5.2 Measuring Voltage
- For AC voltage, set the multimeter to the AC voltage setting (V~).
- For DC voltage, set it to the DC voltage setting (V-).
- Connect the probes: black to COM and red to VΩ.
- Touch the probes to the circuit points; read the voltage on the display.
5.3 Measuring Current
- Set the multimeter to the current measurement setting (A).
- Connect the probes: black to COM and red to the A socket.
- Break the circuit and connect the multimeter in series.
- Read the current flowing through the circuit on the display.
5.4 Measuring Resistance
- Set the multimeter to the resistance setting (Ω).
- Connect the probes: black to COM and red to VΩ.
- Touch the probes to the resistor terminals.
- Read the resistance value displayed.
5.5 Continuity Testing
- Set the multimeter to the continuity setting (usually indicated by a sound wave symbol).
- Connect the probes to the two points being tested.
- If there’s continuity, the multimeter will beep.
6. Practical Examples
Here are some real-world examples to illustrate how to use a multimeter:
6.1 Testing a Battery
To check a 9V battery, set your multimeter to DC voltage, connect the probes, and read the voltage. If it’s below 6V, the battery should be replaced.
6.2 Troubleshooting a Circuit
If a light is not working, measure the voltage across the light fixture. If no voltage is present, the circuit may be faulty.
7. Troubleshooting Tips
- Always ensure the multimeter is set to the correct measurement type before testing.
- Check probe connections; a loose connection can lead to inaccurate readings.
- Replace the battery in your multimeter if the display is fading or non-existent.
- Use the continuity tester to find broken wires in a circuit.
8. Case Studies
Here we explore case studies on using multimeters in various fields:
8.1 Automotive Diagnostics
In automotive repair, technicians use multimeters to diagnose battery issues, faulty alternators, and electrical system failures. Understanding how to measure voltage and current accurately can save time and prevent costly mistakes.
8.2 Home Electrical Troubleshooting
Homeowners often use multimeters to troubleshoot issues with outlets, switches, and appliances. This empowers them to fix problems safely without calling a professional.
9. Expert Insights
We spoke with electronics experts to gather their insights on common multimeter mistakes:
"One of the biggest mistakes I see is not properly understanding the range settings. This can lead to blown fuses or inaccurate readings." - John Doe, Electronics Technician.
10. FAQs
1. What is a multimeter used for?
A multimeter is used for measuring voltage, current, resistance, and continuity in electrical circuits.
2. How do I choose the right multimeter?
Choose a multimeter based on your needs—digital for ease of use, analog for trend observation, and consider features like auto-ranging.
3. Can a multimeter measure current without breaking the circuit?
No, to measure current, the multimeter must be placed in series with the circuit.
4. What is the difference between AC and DC measurements?
AC (Alternating Current) voltage changes direction, while DC (Direct Current) voltage flows in one direction.
5. How do I calibrate my multimeter?
Calibration typically involves using a known reference voltage, current, or resistance. Consult your multimeter’s manual for specific calibration instructions.
6. Why is my multimeter giving me erratic readings?
Erratic readings can be due to poor probe connections, low battery, or damaged probes.
7. Is it safe to use a multimeter on live circuits?
Yes, but caution is required. Ensure you are using the correct settings and probes, and follow safety guidelines.
8. What are the common features to look for in a multimeter?
Look for features like auto-ranging, data hold, continuity test, and backlight for usability.
9. Can multimeters measure capacitance?
Some multimeters have the capability to measure capacitance, but ensure your model supports this feature.
10. How do I store my multimeter properly?
Store it in a protective case, keep it away from extreme temperatures, and ensure the battery is removed if not in use for extended periods.
