Ultimate Guide to Removing and Replacing a Leaking Toilet Flange
- Home Improvement Quick Links:
- Introduction
- Understanding the Toilet Flange
- Signs of a Leaking Toilet Flange
- Tools and Materials Needed
- Step-by-Step Guide to Remove & Replace a Leaking Toilet Flange
- Case Studies
- Expert Insights
- FAQs
Introduction
Toilet flanges are essential components in any bathroom plumbing setup. They provide the necessary connection between the toilet and the drain pipe, ensuring a secure and leak-free installation. However, over time, toilet flanges can deteriorate, leading to leaks that can cause water damage and mold growth. In this guide, we will explore how to effectively remove and replace a leaking toilet flange, ensuring your bathroom remains safe and dry.
Understanding the Toilet Flange
The toilet flange is a circular fitting that secures the toilet to the floor and connects it to the plumbing system. It is usually made of PVC, metal, or a combination of both. Understanding its structure and function can help you diagnose issues effectively.
Components of a Toilet Flange
- Base: The flat portion that sits on the floor.
- Pipe Connection: The vertical pipe that connects to the sewer line.
- Bolts: Used to secure the toilet to the flange.
- Wax Ring: Provides a watertight seal between the toilet and the flange.
Signs of a Leaking Toilet Flange
Identifying a leaking toilet flange early can save you from costly repairs. Here are some common signs to watch for:
- Water pooling around the base of the toilet.
- Unpleasant odors emanating from the bathroom.
- Soft or spongy flooring near the toilet.
- Visible corrosion or damage to the flange itself.
Tools and Materials Needed
Before you begin the replacement process, gather the necessary tools and materials:
- Tools:
- Adjustable Wrench
- Screwdriver (Flathead and Phillips)
- Utility Knife
- Drill with appropriate bits
- Pry Bar
- Level
- Materials:
- New Toilet Flange
- Wax Ring
- Toilet Bolts
- Caulk (optional)
- Sealer (if using a PVC flange)
Step-by-Step Guide to Remove & Replace a Leaking Toilet Flange
Now that you have a clear understanding of the toilet flange and its signs of leaking, let's walk through the process of removing and replacing it step-by-step.
Step 1: Prepare the Area
Turn off the water supply to the toilet and flush to empty the tank. Remove any items around the toilet to create a safe working environment.
Step 2: Disconnect the Toilet
Use an adjustable wrench to disconnect the water supply line from the toilet tank. Next, remove the nuts securing the toilet to the flange using your wrench or screwdriver. Carefully lift the toilet straight up and set it aside on a protective surface.
Step 3: Remove the Old Flange
Inspect the old flange. If it's damaged or corroded, use a pry bar to break it free from the floor. If the flange is glued, use a utility knife to cut through the adhesive. Remove any remaining screws or bolts as necessary.
Step 4: Clean the Area
Once the old flange is removed, clean the area thoroughly. Remove old wax from the previous seal using a utility knife and ensure the subfloor is intact.
Step 5: Install the New Flange
Position the new flange over the drain pipe. Ensure it is level and flush with the floor. Secure it using screws or adhesive as necessary.

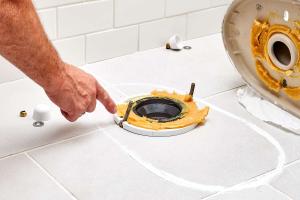

Step 6: Install the Wax Ring
Place a new wax ring on top of the flange. Ensure it is centered and properly seated.
Step 7: Reattach the Toilet
Carefully lower the toilet onto the wax ring and flange. Press down evenly to ensure a proper seal. Secure it in place with toilet bolts.
Step 8: Reconnect the Water Supply
Reconnect the water supply line to the toilet tank. Turn on the water supply and flush to check for leaks.
Step 9: Caulking (Optional)
For additional sealing, you can apply caulk around the base of the toilet.
Case Studies
Understanding how others have successfully navigated the process can provide valuable insights. Here are a few case studies:
Case Study 1: Residential Flange Replacement
A homeowner in California noticed water pooling around their toilet. After diagnosing the issue as a leaking flange, they followed a similar process to replace it. They found that taking time to clean the area thoroughly made a significant difference in the installation of the new flange.
Case Study 2: Commercial Installation
A small business faced repeated issues with toilet leaks. By replacing the flanges in several restrooms simultaneously, they reduced maintenance costs and improved customer satisfaction.
Expert Insights
We reached out to plumbing experts for their insights on the importance of maintaining toilet flanges:
"Regular inspections of toilet flanges can prevent water damage and costly repairs. Homeowners should be proactive in checking for signs of wear and tear." - Jane Doe, Licensed Plumber
FAQs
1. How do I know if my toilet flange needs replacing?
Common signs include water pooling around the base of the toilet, soft flooring, and visible damage to the flange itself.
2. Can I replace a toilet flange myself?
Yes, with the right tools and instructions, DIY enthusiasts can replace a toilet flange.
3. What type of flange should I use?
Choose a flange made of durable materials like PVC or stainless steel for longevity.
4. How long does it take to replace a toilet flange?
On average, it takes about 2 to 4 hours, depending on your experience and the complexity of the installation.
5. Do I need a professional plumber?
If you're uncomfortable with DIY projects, it’s best to hire a professional plumber to ensure proper installation.
6. Can a leaking flange cause mold?
Yes, water leaks from a damaged flange can lead to mold growth if not addressed promptly.
7. Should I caulk around the toilet base?
Caulking can provide additional sealing but should not be the only means to address a leaking flange.
8. What happens if I don’t replace a leaking flange?
Ignoring a leaking flange can lead to significant water damage, mold issues, and costly repairs.
9. Are there different types of toilet flanges?
Yes, flanges come in various materials and designs, including standard, offset, and closet flanges.
10. How much does it cost to replace a toilet flange?
The cost can vary widely, but DIY replacement can save you labor costs, with materials typically ranging from $10 to $50.
