Introduction
A multimeter is an essential tool for anyone working with electronics, whether you are a hobbyist, a DIY enthusiast, or a professional electrician. This guide is designed to help you understand how to use a multimeter effectively, covering everything from the basics to advanced applications. By the end of this article, you will be comfortable using a multimeter for a variety of measurements and troubleshooting tasks.
What is a Multimeter?
A multimeter, also known as a volt/ohm meter (VOM), is a versatile instrument used to measure electrical values such as voltage, current, and resistance. It can be an analog device with a needle or a digital device that displays readings in numerical form. Some advanced multimeters can even measure additional parameters like capacitance and frequency.
Types of Multimeters
- Analog Multimeters: These use a needle and dial to display readings. They are simple and often less expensive but may be harder to read accurately.
- Digital Multimeters: These display readings in numerical form, making them easier to read. They are typically more accurate and can include additional features.
- Clamp Multimeters: These are specialized devices that can measure current without needing to make physical contact with the circuit, making them ideal for live testing.
How to Choose a Multimeter
Choosing the right multimeter will depend on your specific needs. Here are some factors to consider:
- Measurement Range: Ensure the multimeter can measure the voltages, currents, and resistances you expect to encounter.
- Accuracy: Look for devices with a high level of accuracy, especially for precision work.
- Features: Consider additional features such as data logging, Bluetooth connectivity, or temperature measurement.
- Price: Decide on a budget, but remember that sometimes investing a little more can provide significant long-term benefits.

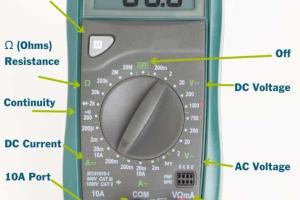

Basic Operations of a Multimeter
Measuring Voltage
To measure voltage:
- Set the multimeter to the appropriate voltage range.
- Connect the black probe to the COM port and the red probe to the VΩmA port.
- Touch the probes to the two points in the circuit where you want to measure the voltage.
- Read the voltage on the display.
Measuring Current
To measure current:
- Set the multimeter to the appropriate current range.
- Break the circuit where you want to measure the current.
- Connect the multimeter probes in series with the circuit.
- Read the current on the display.
Measuring Resistance
To measure resistance:
- Ensure the circuit is powered off.
- Set the multimeter to the resistance (Ω) setting.
- Connect the black probe to the COM port and the red probe to the VΩmA port.
- Touch the probes to the resistor or component you want to measure.
- Read the resistance on the display.
Advanced Uses of a Multimeter
Beyond the basics, multimeters can also be used for:
- Testing Diodes: Set the multimeter to the diode test setting and connect the probes to the diode terminals to check its functionality.
- Measuring Capacitance: Some multimeters have a capacitance setting that allows you to test capacitors.
- Frequency Measurement: Use the frequency setting to measure the frequency of AC signals.
Safety Tips When Using a Multimeter
Working with electricity can be dangerous. Here are some safety tips:
- Always start with the highest measurement range to avoid damaging the multimeter.
- Never measure resistance or continuity on a live circuit.
- Wear appropriate personal protective equipment (PPE), such as insulated gloves.
- Be cautious of high voltages and currents.
Case Studies
To illustrate the importance of multimeter usage, let’s look at a couple of case studies:
Case Study 1: Home Electrical Troubleshooting
John, a homeowner, noticed that some outlets in his house were not working. Using a multimeter, he measured the voltage at the outlet and found it was significantly lower than expected. Upon further investigation, he discovered a loose connection in the circuit, which he was able to fix safely with the multimeter’s help.
Case Study 2: Automotive Diagnostics
A mechanic used a multimeter to diagnose a faulty alternator in a vehicle. By measuring the battery voltage and the output voltage of the alternator, he was able to determine that the alternator was not charging the battery properly, leading to a quick and accurate repair.
Expert Insights
According to industry experts, having a solid understanding of how to use a multimeter can significantly enhance your troubleshooting skills. Many professionals emphasize that practical experience is the best teacher; hands-on practice with various measurements will increase your confidence and proficiency.
FAQs
1. How do I know which setting to use on my multimeter?
Refer to the user manual for specific settings, and start with the highest range to avoid damage.
2. Can I use a multimeter to test batteries?
Yes! You can measure the voltage of batteries to determine if they are charged.
3. What is the difference between AC and DC voltage?
AC (alternating current) voltage changes direction periodically, while DC (direct current) voltage flows in one direction.
4. Is it safe to use a multimeter on a live circuit?
Yes, as long as you use a multimeter rated for the voltage and current levels you are measuring, and follow safety precautions.
5. How often should I calibrate my multimeter?
It depends on usage, but for critical measurements, calibrate at least once a year.
6. What happens if I connect the probes incorrectly?
For most measurements, connecting the probes incorrectly will not damage the multimeter, but it can lead to inaccurate readings.
7. Can I measure resistance on a powered circuit?
No, measuring resistance on a powered circuit can damage the multimeter and provide false readings.
8. How do I perform continuity tests?
Set the multimeter to continuity mode, and connect the probes to the two points of the circuit. A beep indicates continuity.
9. What should I do if my multimeter is not working?
Check the battery, ensure the probes are connected correctly, and verify that settings are appropriate for your measurements.
10. What are the limitations of a multimeter?
Multimeters have limits on voltage and current ranges, and they may not provide detailed insights into complex circuit behaviors.
