Introduction
Wiring a 4-way switch can seem daunting, but with the right knowledge and tools, it’s a manageable task for DIY enthusiasts and even beginners. In this guide, we will break down the process step-by-step, ensuring that you understand every aspect of wiring a 4-way switch. From understanding what a 4-way switch is to troubleshooting common issues, we’ve got you covered!
Understanding 4-Way Switches
A 4-way switch is an essential component in multi-location lighting setups. Unlike single-pole or 3-way switches, a 4-way switch allows you to control a light fixture from three or more locations. This is particularly useful in larger rooms or hallways where multiple entry points exist.
How a 4-Way Switch Works
To understand how to wire a 4-way switch, it's crucial to know how it functions within a circuit. A 4-way switch doesn't connect directly to the power source; instead, it acts as a bridge between two 3-way switches. The electrical flow through the 4-way switch can be altered depending on its toggle position, allowing you to control the light from various locations.
Tools and Materials Needed
Before you begin wiring a 4-way switch, gather the following tools and materials:
- Wire stripper
- Screwdriver (flat-head and Phillips)
- Voltage tester
- Electrical tape
- Wire nuts
- 4-way switch
- 3-way switches (if not already installed)
- Electrical wire (14/2 or 12/2 gauge depending on circuit requirements)
Safety First: Precautions to Take
Before starting any electrical project, safety should be your top priority. Here are some precautions to consider:
- Turn off the power at the circuit breaker before beginning any work.
- Use a voltage tester to ensure that the wires are not live.
- Wear rubber-soled shoes and avoid standing on wet surfaces.
- Use insulated tools to prevent electrical shocks.
Step-by-Step Wiring Guide
Now that you’re prepared, let’s dive into the step-by-step process of wiring a 4-way switch:
Step 1: Turn Off the Power
Ensure the power is completely turned off at the breaker box. Verify with a voltage tester.
Step 2: Identify Your Existing Wiring
Locate your existing 3-way switches and determine how many 4-way switches you will be installing. A typical setup includes two 3-way switches at each end and one or more 4-way switches in between.
Step 3: Connect the Wires to the 4-Way Switch
At the 4-way switch, you will see four terminal screws. Here’s how to connect them:
- Connect the two traveler wires from the first 3-way switch to the input terminals on the 4-way switch.
- Connect the two traveler wires leading to the second 3-way switch to the output terminals of the 4-way switch.
Step 4: Secure the Connections
Use wire nuts to secure the connections and electrical tape to provide extra insulation. Make sure there are no exposed wires.
Step 5: Install the Switches
Carefully tuck the wires into the electrical boxes and secure the switches in place. Ensure that they are mounted flush against the wall.
Step 6: Restore Power and Test the Setup
Once everything is in place, turn the power back on at the breaker and test each switch to ensure that the light operates correctly from all locations.
Common Wiring Schemes
There are various ways to wire a 4-way switch depending on your specific setup. Let’s discuss some of the most common wiring schemes:

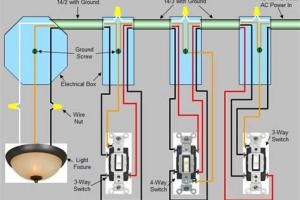

Typical Wiring Diagram
Here is a simple diagram showing how a 4-way switch fits into a typical circuit:
[3-Way Switch]---(Traveler Wires)---[4-Way Switch]---(Traveler Wires)---[3-Way Switch]
Example Wiring Configuration
Consider a hallway with two entrances. You can install:
- One 3-way switch at each end of the hallway.
- One or more 4-way switches in between to allow control from multiple points.
Troubleshooting Common Issues
If your 4-way switch setup is not functioning correctly, here are some common issues and their solutions:
Light Won't Turn On
Check the following:
- Ensure the power is on at the circuit breaker.
- Verify all connections are tight and secure.
- Test the switches individually to ensure none are faulty.
Switches Work Intermittently
This could indicate a loose connection or a faulty switch. Recheck all connections and replace any defective switches.
Expert Tips for Success
To make your wiring project smoother, consider these expert tips:
- Label wires as you disconnect them to simplify reconnection.
- Take photos of the existing wiring before starting the project.
- Consult a professional if you are ever in doubt about your wiring setup.
Case Studies: Real-Life Wiring Examples
Let’s look at a couple of real-life cases where wiring a 4-way switch has solved lighting challenges:
Case Study 1: Hallway Lighting
In a long corridor with two entrances, the homeowner wanted to control the lighting from both ends. By installing a 4-way switch in the middle, they achieved complete control and improved convenience.
Case Study 2: Large Living Room
A homeowner with a large living room installed multiple 4-way switches to allow lighting control from different corners of the room, enhancing both functionality and aesthetics.
FAQs
1. What is the purpose of a 4-way switch?
A 4-way switch allows you to control a single light fixture from three or more locations.
2. Can I wire a 4-way switch by myself?
Yes, as long as you follow safety protocols and understand the wiring process. However, if you're unsure, consult an electrician.
3. What type of wire do I need for a 4-way switch?
Typically, you would use 14/2 or 12/2 gauge wire, depending on the circuit requirements.
4. How do I know if my switch is faulty?
If the light flickers or does not turn on at all, the switch may be faulty and should be tested or replaced.
5. Can a 4-way switch be used with a dimmer?
Yes, you can use a dimmer switch in conjunction with a 4-way switch, but ensure they are compatible.
6. How many 4-way switches can I use in a circuit?
You can use multiple 4-way switches in a circuit, as long as they are connected correctly between the 3-way switches.
7. Is it safe to work with electrical wiring?
Yes, if proper safety measures are followed, including turning off the power and using insulated tools.
8. What should I do if I lose power to my switches?
Check the circuit breaker and ensure all connections are secure.
9. Can I replace a regular switch with a 4-way switch?
Yes, but only in the correct position within the circuit, usually between two 3-way switches.
10. What are the signs of improper wiring?
Signs include flickering lights, switches that feel warm, or frequent tripping of the circuit breaker.
