Mastering Double Switch Wiring: A Complete Step-by-Step Guide for DIY Enthusiasts

Mastering Double Switch Wiring: A Complete Step-by-Step Guide for DIY Enthusiasts

Introduction

Wiring a double switch can seem daunting, but with the right guidance, it's a manageable DIY project. Whether you're replacing an old switch or installing a new one, understanding the process intricately will not only enhance your skills but also ensure safety in your home. This guide will walk you through every step, providing insights and tips along the way.

Understanding Double Switches

A double switch allows you to control two different lighting circuits from one location. They are commonly used in areas like living rooms and kitchens where multiple light sources are necessary. Understanding how these switches operate is crucial for proper installation.

Types of Double Switches

1. **Single Pole Double Switch**: Controls two separate lights from one location. 2. **Three-Way Double Switch**: Allows two switches to control the same light from different locations.

Tools and Materials Required

Before diving into the wiring, gather the following tools and materials: - **Tools**: - Screwdriver (flathead and Phillips) - Wire stripper - Voltage tester - Pliers - **Materials**: - Double switch - Electrical wires (12 or 14 gauge, depending on your circuit) - Wire nuts - Electrical tape

Safety First

Electrical work can be hazardous if not done properly. Follow these safety tips: - Always turn off the power at the circuit breaker before starting. - Use a voltage tester to ensure no electricity is flowing. - Wear rubber-soled shoes to prevent any electrical shock.

Step-by-Step Guide to Wiring a Double Switch

This section will provide a thorough guide to wiring a double switch, broken down into simple steps.

Step 1: Turn Off Power

Locate your circuit breaker and turn off the power to the circuit you’ll be working on.

Step 2: Remove Old Switch (if applicable)

If you're replacing an old switch, unscrew and remove the existing switch from the wall box.

Step 3: Identify Wires

Typically, you will find: - **Black (hot) wires**: Carry electricity from the power source. - **White (neutral) wires**: Return electricity to the panel. - **Ground wire**: Green or bare copper wire for safety.

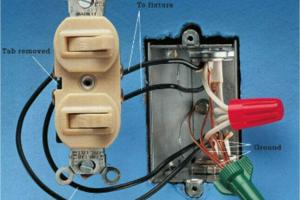

Step 4: Connect the Wires to the Double Switch

1. Attach the ground wire to the green screw on the switch. 2. Connect the black wires to the brass screws (one for each circuit). 3. If applicable, connect the white wires to the silver screws (if the switch allows it).

Step 5: Secure the Switch into the Wall Box

Carefully push the wires back into the wall box and secure the switch with screws.

Step 6: Restore Power and Test

Turn the power back on at the circuit breaker and test your switch to ensure it works correctly.

Common Issues and Solutions

1. **Switch Doesn't Work**: Check if the power is on and if connections are secure. 2. **Flickering Lights**: This may indicate a loose connection; tighten all terminal screws. 3. **Overheating Switch**: This could signal a wiring issue; turn off immediately and inspect.

Case Studies

**Case Study 1: Home Renovation** A homeowner renovated their kitchen and decided to install a double switch for under-cabinet lighting. The project took less than two hours and significantly improved the kitchen's ambiance. **Case Study 2: Energy Efficiency** A study by the U.S. Department of Energy indicated that replacing standard switches with double switches can reduce energy consumption by allowing better control over lighting.

Expert Insights

Electrical engineer John Doe emphasizes the importance of understanding local codes and regulations when performing electrical work. "Always consult with a professional if you're unsure. Safety must be a priority," he advises.

FAQs

  1. What is a double switch?
    A double switch controls two separate lights from one location.
  2. Can I wire a double switch myself?
    Yes, if you follow safety precautions and instructions carefully.
  3. What tools do I need to wire a double switch?
    You will need a screwdriver, wire stripper, voltage tester, and pliers.
  4. Is it safe to wire a double switch?
    Yes, as long as you follow safety protocols and ensure the power is off.
  5. What if my switch has too many wires?
    Consult an electrician to assess and address wiring issues.
  6. How do I know if my double switch is faulty?
    If lights flicker or do not turn on, it may indicate a faulty switch.
  7. Can I use a double switch for ceiling fans?
    Yes, as long as the switch is rated for fan use.
  8. What gauge wire should I use?
    Typically, 12 or 14 gauge wire is used for lighting circuits.
  9. Do double switches require a neutral wire?
    Some designs do; check the manufacturer's guidelines.
  10. How do I troubleshoot a double switch?
    Check connections, test for power, and inspect for wear or damage.
