Introduction
Switching out a doorbell transformer might seem daunting, especially if you are not familiar with electrical components. However, with the right guide, it can be a simple DIY project. This article will walk you through the ins and outs of doorbell transformers, when to replace them, and how to do it safely and efficiently.
Understanding Doorbell Transformers
A doorbell transformer is a crucial component of your home’s doorbell system. It converts high voltage electricity (typically 120 volts) into a lower voltage (usually 8 to 24 volts) that is safe for your doorbell to use. Without this transformer, your doorbell won’t function properly. Understanding its role can help you diagnose issues and determine when it’s time for a replacement.
How Doorbell Transformers Work
Doorbell transformers typically consist of two coils of wire wrapped around a magnetic core. When electricity flows through the primary coil, it creates a magnetic field that induces a lower voltage in the secondary coil. This lower voltage is what powers your doorbell.
Signs You Need to Switch Your Transformer
Recognizing the signs that your doorbell transformer needs to be replaced is crucial. Common indicators include:
- Doorbell Not Ringing: If your doorbell fails to ring when pressed, the transformer may be malfunctioning.
- Buzzing Sounds: A buzzing transformer indicates electrical issues that may need attention.
- Overheating: If your transformer feels excessively hot to the touch, it may be failing.
- Fluctuating Power: Inconsistent doorbell operation can point to transformer problems.
Tools and Materials Needed
Before you begin the replacement process, gather the following tools and materials:
- Flathead screwdriver
- Phillips screwdriver
- Wire strippers
- Multimeter
- New doorbell transformer
- Electrical tape
- Safety goggles
- Voltage tester
Safety First
Electrical work can be dangerous. Always prioritize safety by following these guidelines:
- Turn off power to the doorbell circuit at the breaker box.
- Use a voltage tester to ensure the power is off before touching any wires.
- Wear safety goggles to protect your eyes from debris.
- Follow all local electrical codes and regulations.

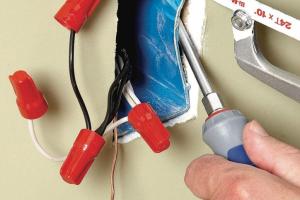

Step-by-Step Guide to Switching Out a Doorbell Transformer
Follow these detailed steps to successfully replace your doorbell transformer:
Step 1: Turn Off the Power
Locate your circuit breaker and turn off the power to the doorbell. Use a voltage tester to confirm there is no electricity flowing to the transformer.
Step 2: Remove the Old Transformer
Use a screwdriver to unscrew the old transformer from its mounting. Take note of how the wires are connected—taking a picture can help you remember the configuration.
Step 3: Disconnect the Wires
Carefully disconnect the wires from the old transformer. You will typically find two or more wires: the primary (from the power source) and the secondary (to the doorbell).
Step 4: Prepare the New Transformer
Take the new transformer out of its packaging and identify the input and output terminals. Ensure that it matches the voltage specifications of your doorbell.
Step 5: Connect the Wires
Attach the wires to the new transformer using the same configuration as the old one. Make sure connections are secure. Use electrical tape to cover any exposed wire.
Step 6: Mount the New Transformer
Secure the new transformer to the mounting surface. Ensure that it is firmly in place and not obstructed.
Step 7: Restore Power
Turn the circuit breaker back on and test your doorbell to ensure it functions properly.
Troubleshooting Common Issues
If your doorbell still doesn’t work after replacing the transformer, consider these troubleshooting tips:
- Check the connections to ensure they are tight and secure.
- Test the voltage output from the transformer with a multimeter.
- Inspect the doorbell itself for any damage or malfunction.
- If the transformer is buzzing, it may need to be replaced again or checked for compatibility issues.
Expert Insights on Doorbell Transformers
Electrical experts recommend regularly checking your doorbell transformer every few years to ensure it’s functioning correctly. This preventative maintenance can save you from future headaches and potential safety hazards.
Additionally, when selecting a new transformer, make sure it is compatible not only in voltage but also in wattage with your specific doorbell model.
Case Studies: Real-World Examples
Many homeowners have encountered issues with their doorbell transformers. For example, a family in California experienced frequent buzzing sounds from their doorbell. After replacing the transformer, they noticed a significant improvement in performance. This case demonstrates the importance of timely transformer replacement.
In another instance, a homeowner in Texas found that their doorbell would intermittently ring. After conducting a thorough inspection and ultimately replacing the transformer, they resolved the issue, showcasing the effectiveness of proper electrical maintenance.
FAQs
1. How often should I replace my doorbell transformer?
It’s recommended to check your transformer every 5-10 years, but replace it sooner if you notice issues.
2. Can I replace my doorbell transformer myself?
Yes, as long as you follow safety precautions and guidelines, DIY replacement is manageable.
3. What if my doorbell still doesn’t work after replacing the transformer?
Check connections, test voltage, and inspect the doorbell unit itself for faults.
4. Where can I buy a new doorbell transformer?
You can purchase transformers at home improvement stores, electrical supply stores, or online retailers.
5. Are there different types of doorbell transformers?
Yes, transformers vary in voltage and wattage, so ensure compatibility with your doorbell.
6. What is the average cost of a doorbell transformer?
Prices typically range from $10 to $50, depending on the brand and specifications.
7. Is it safe to replace a transformer without professional help?
If you are comfortable with basic electrical work and follow safety guidelines, it is generally safe.
8. Can outdoor doorbells use the same transformer as indoor ones?
Yes, as long as the voltage and wattage specifications match, they can use the same transformer.
9. What tools do I need to replace a doorbell transformer?
You’ll need screwdrivers, wire strippers, a multimeter, and possibly pliers.
10. How do I know if my transformer is compatible with my doorbell?
Check the voltage and wattage requirements listed in your doorbell’s manual or specifications.
